USR-W630 Serial to WiFi Converter | RS232/RS485/RS422 to Wireless Module | USR IoT
PUSR
USR-W630 Serial to WiFi Converter | RS232/RS485 to WiFi & Ethernet | USR IOT

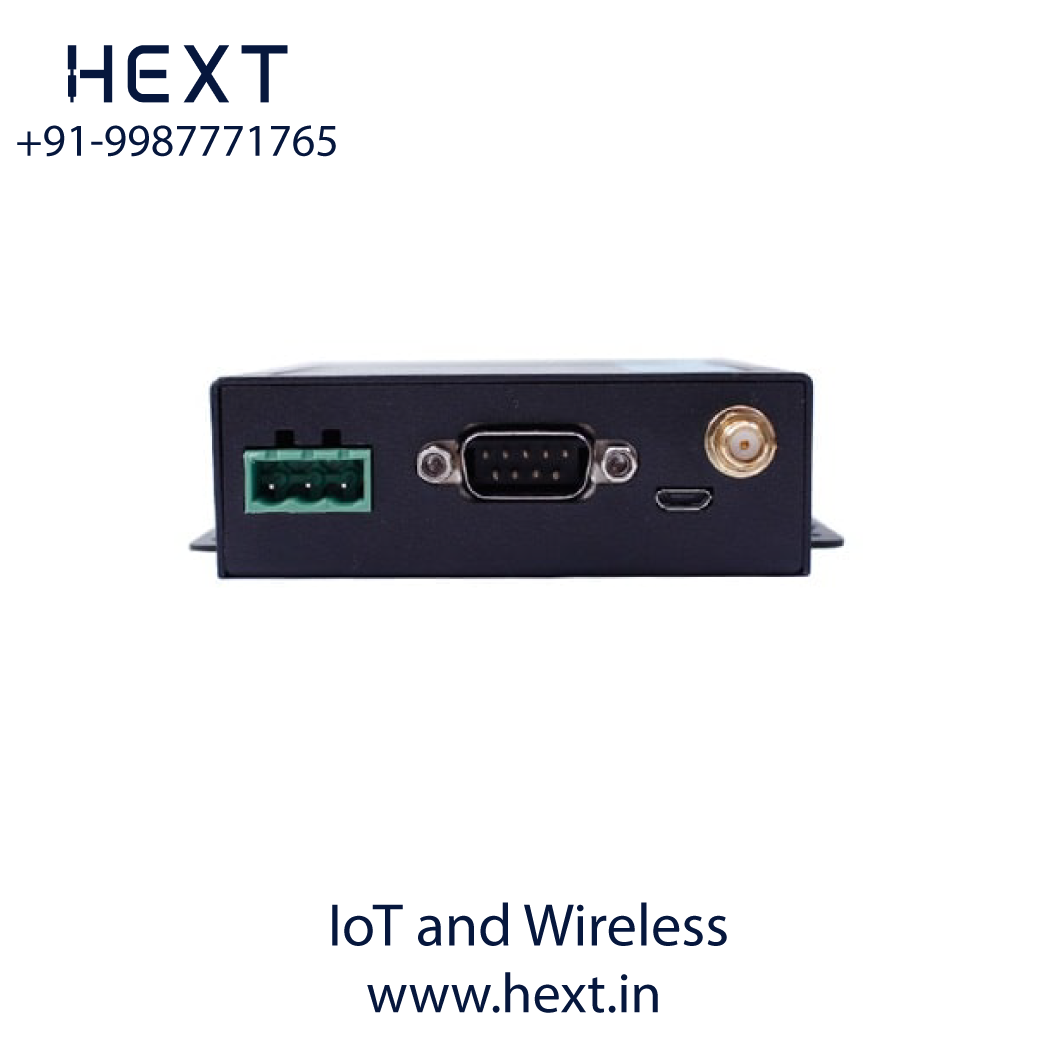

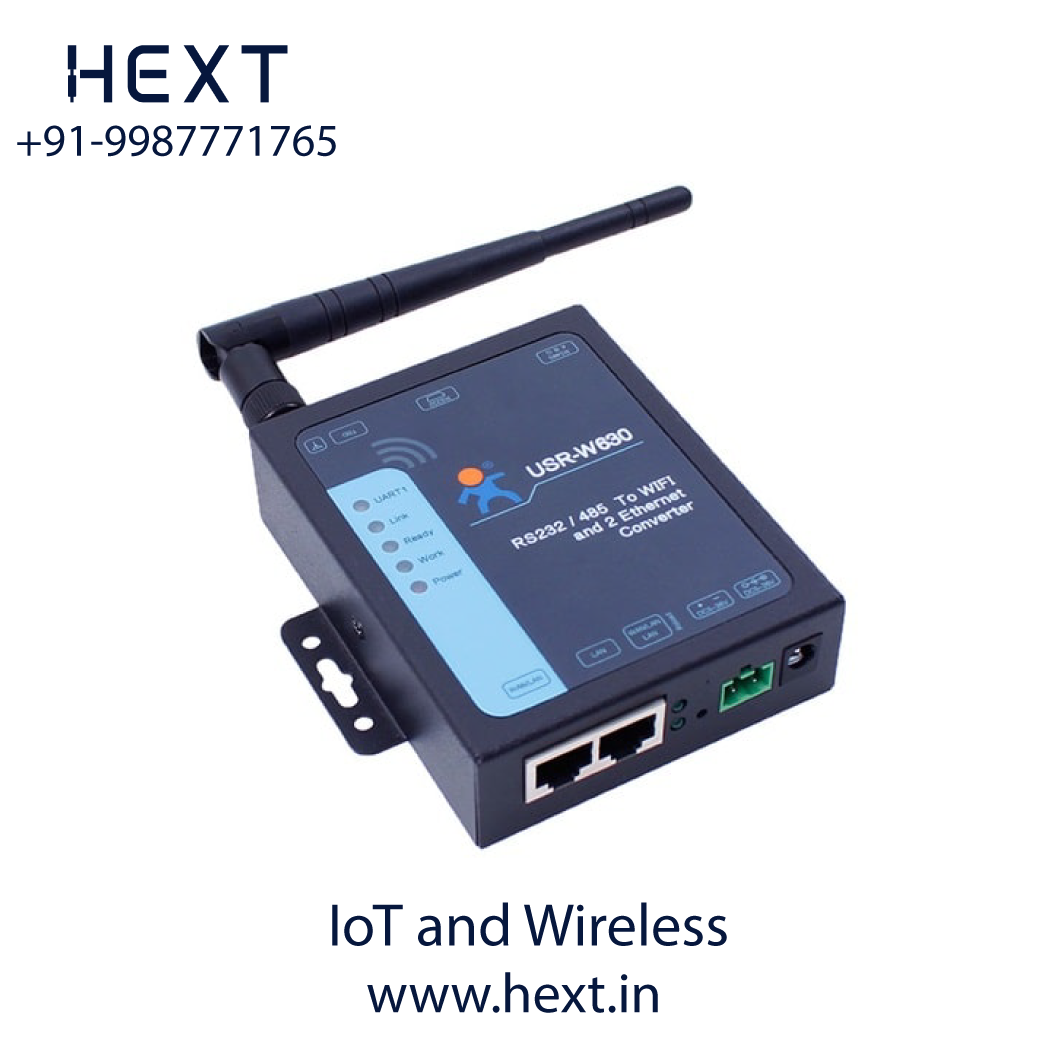

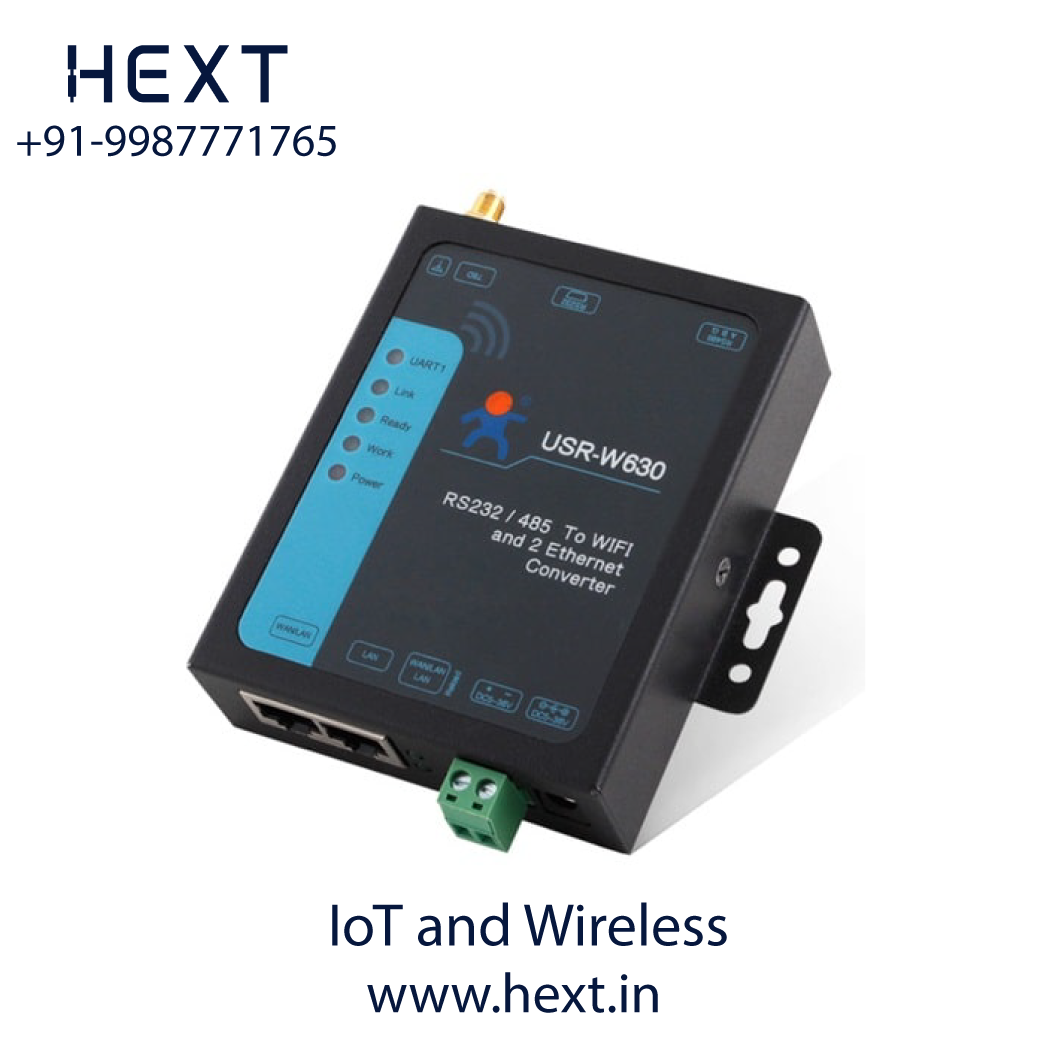

The USR-W630 Serial to WiFi Converter is a 1-port WiFi to Serial device server that enables bi-directional transparent data transmission between RS232/RS485 and WiFi, WiFi and Ethernet, or Serial and Ethernet. Designed for industrial networking, it ensures stable, secure, and real-time communication across diverse applications like smart agriculture, industrial automation, and energy management.
Key Features:
-
1-port RS232/RS485 to WiFi & Ethernet transparent data transmission.
-
Dual Ethernet ports: 1×LAN + 1×LAN/WAN, can work simultaneously.
-
WiFi Standard: 2.4GHz, 802.11b/g/n with AP/STA/AP+STA modes.
-
Modbus Gateway: Supports Modbus TCP ↔ Modbus RTU conversion and Modbus Polling.
-
Multiple protocols & modes: TCP Server/Client, UDP Server/Client, HTTPD Client.
-
Built-in Web Server, AT commands & software utility for easy configuration.
-
Electrostatic protection (ESD) and EFT surge protection for industrial reliability.
-
Hardware watchdog and regular restart function for 24/7 stable operation.
-
Advanced functions: Heartbeat packet, Identity packet, WebSocket, Socket Distribution Protocol (SDP).
Special Functions:
-
Modbus Polling Mode – Enables seamless Modbus TCP ↔ Modbus RTU conversion.
-
Heartbeat Packet – Ensures continuous connectivity with servers and serial devices.
-
Socket Distribution Protocol (SDP) – Routes data to different sockets using custom headers.
-
Automatic Recovery – Timing and timeout restart functions keep the system running smoothly.
Applications:
-
Smart Agriculture – Real-time data acquisition from sensors and devices.
-
Industrial Detection – Reliable monitoring and control over WiFi/Ethernet.
-
Distribution Boxes & Energy Systems – Stable communication for intelligent power management.
The USR-W630 Serial to WiFi Converter is an industrial-grade, feature-rich device server that delivers seamless integration of serial devices into modern IP networks with robust protection and long-term stability.
