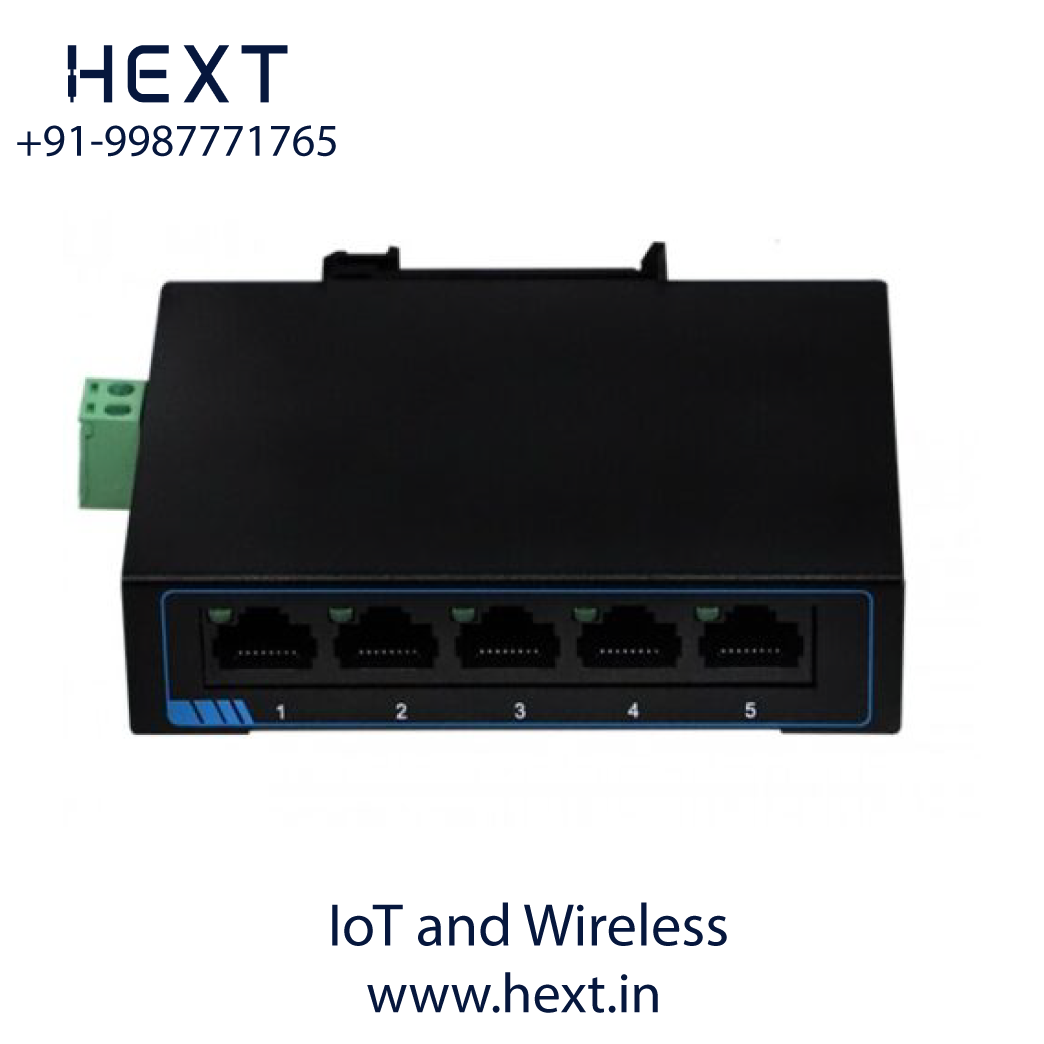

USR-SG1005 | 5-Port Gigabit Ethernet Unmanaged Switch | 10/100/1000Mbps

The USR-SG1005 is a 5-port Gigabit Ethernet unmanaged switch designed for small and medium-sized offices, home networks, and light industrial applications. With support for 10/100/1000 Mbps auto-negotiation, this compact, durable switch ensures reliable, high-speed data transmission with plug-and-play simplicity.

Built with a frosted iron shell for durability and wide-temperature operation, the USR-SG1005 is resistant to pressure, wear, and explosion, making it suitable for quasi-industrial use.

Key Features

• ⚡ High-Speed Connectivity – 5 RJ45 ports supporting 10/100/1000 Mbps with auto-negotiation and Auto MDI/MDIX.

• 📡 Wide Compatibility – Supports 10Base-T, 100Base-TX, and 1000Base-T standards.

• 🔄 Efficient Switching – Store-and-forward technology with dynamic memory allocation for smooth traffic management.

• 🛡 Flow Control – IEEE 802.3x full-duplex and back-pressure half-duplex prevent packet loss.

• 🔧 Protocol Support – IEEE 802.3, 802.3u, 802.3x, 802.3az, 802.3ab.

• 📊 Traffic Optimization – BPDU frame, EAPOL support, and QoS WRR queue algorithm for stable performance.

• 💾 MAC Address Learning – Automatic address recognition and storage.

• 🌍 Green Technology – Energy-efficient, compliant with IEEE 802.3az.

• 🖥 Plug & Play – No configuration required, ready to use instantly.

• 🏗 Flexible Installation – Desktop, wall-mounted, or DIN-rail mounting supported.

• 💪 Industrial-Grade Build – Frosted iron shell for toughness and wide-temperature operation.

Applications

The USR-SG1005 unmanaged switch is ideal for:

• Small and medium-sized business networks

• Home offices and SOHO setups

• Video surveillance systems

• Quasi-industrial automation networks

• High-speed LAN expansion

✅ With its compact design, robust housing, and reliable gigabit performance, the USR-SG1005 is a cost-effective choice for businesses and individuals seeking stable, high-speed Ethernet connectivity.
