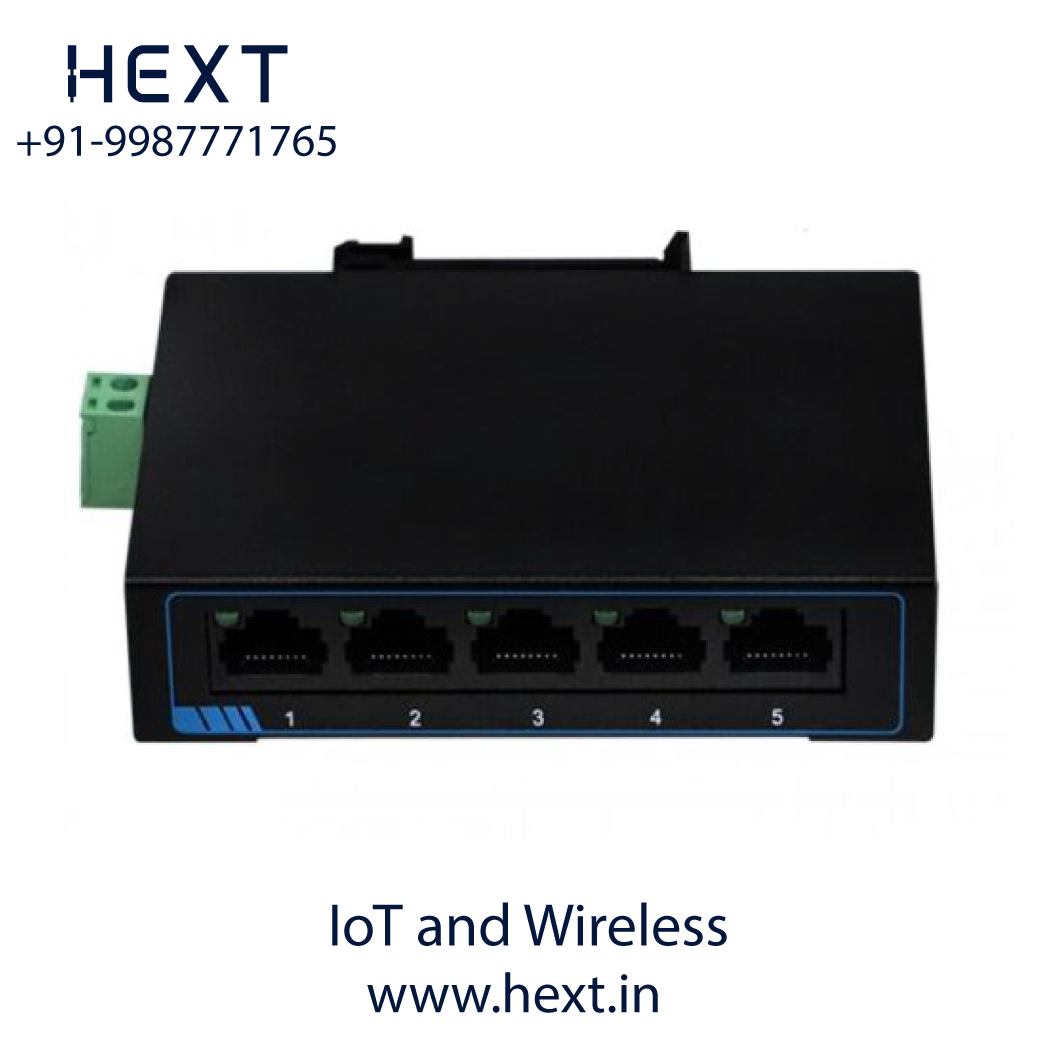

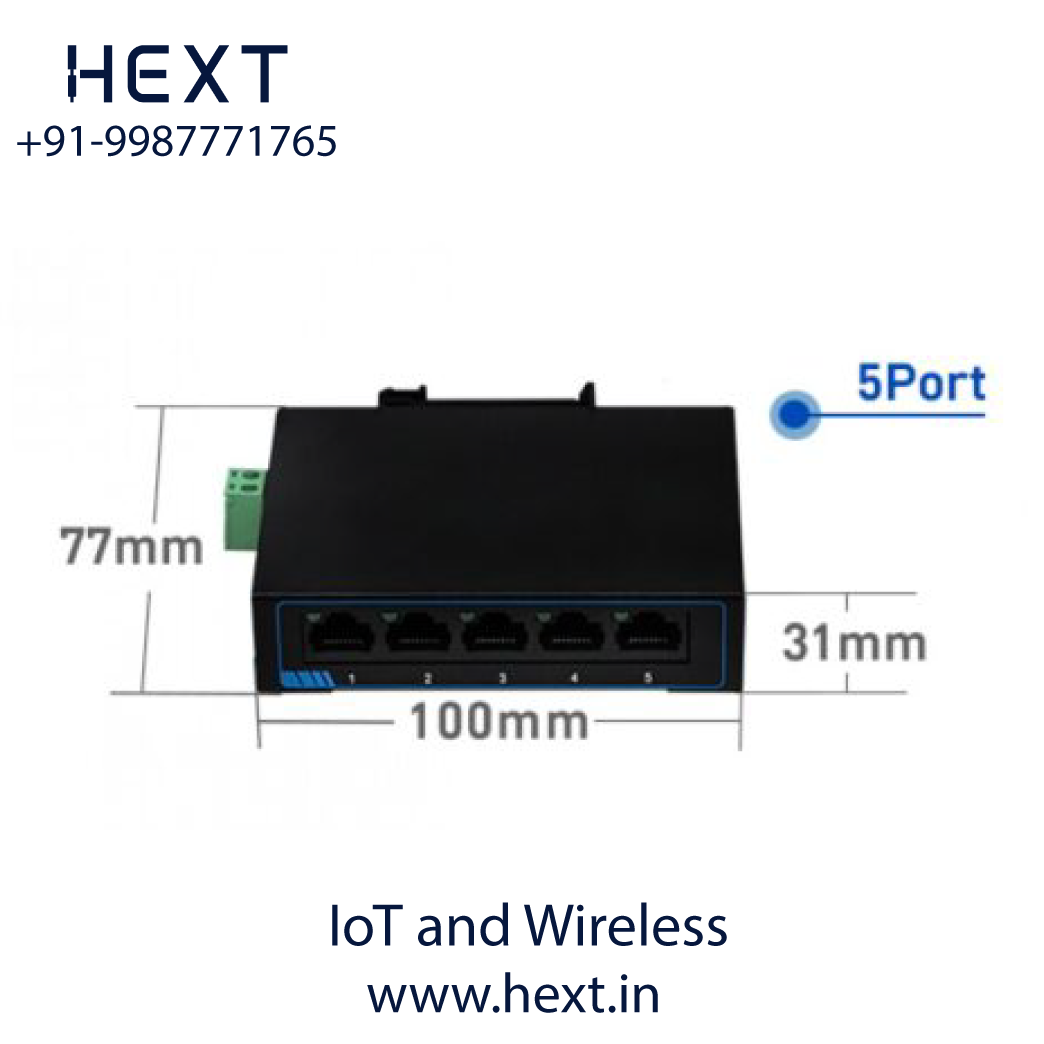

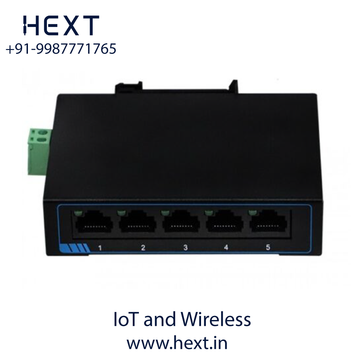

USR-SF1005 | 5-Port 10/100Mbps Fast Ethernet Unmanaged Switch

The USR-SF1005 is a 5-port 10/100Mbps unmanaged Ethernet switch designed for SOHO networks, offices, and quasi-industrial environments. With auto-negotiation (10/100 Mbps) and Auto MDI/MDIX, the switch ensures seamless compatibility and effortless network expansion.

Its frosted iron housing provides durability, pressure resistance, and explosion-proof protection, while the wide-temperature design ensures stable operation in demanding conditions. Compact, lightweight, and plug-and-play, the USR-SF1005 supports desktop, wall-mounted, and DIN-rail installation, making it a versatile networking solution.

Key Features

• ⚡ 5-Port Fast Ethernet – Supports 10/100 Mbps auto-negotiation and Auto MDI/MDIX.

• 🔄 Efficient Switching – Store-and-Forward transmission with dynamic memory allocation.

• 🛡 Reliable Flow Control – IEEE 802.3x (full-duplex) and back-pressure (half-duplex) prevent data loss.

• 🔧 Protocol Support – IEEE 802.3, IEEE 802.3u, IEEE 802.3x compliant.

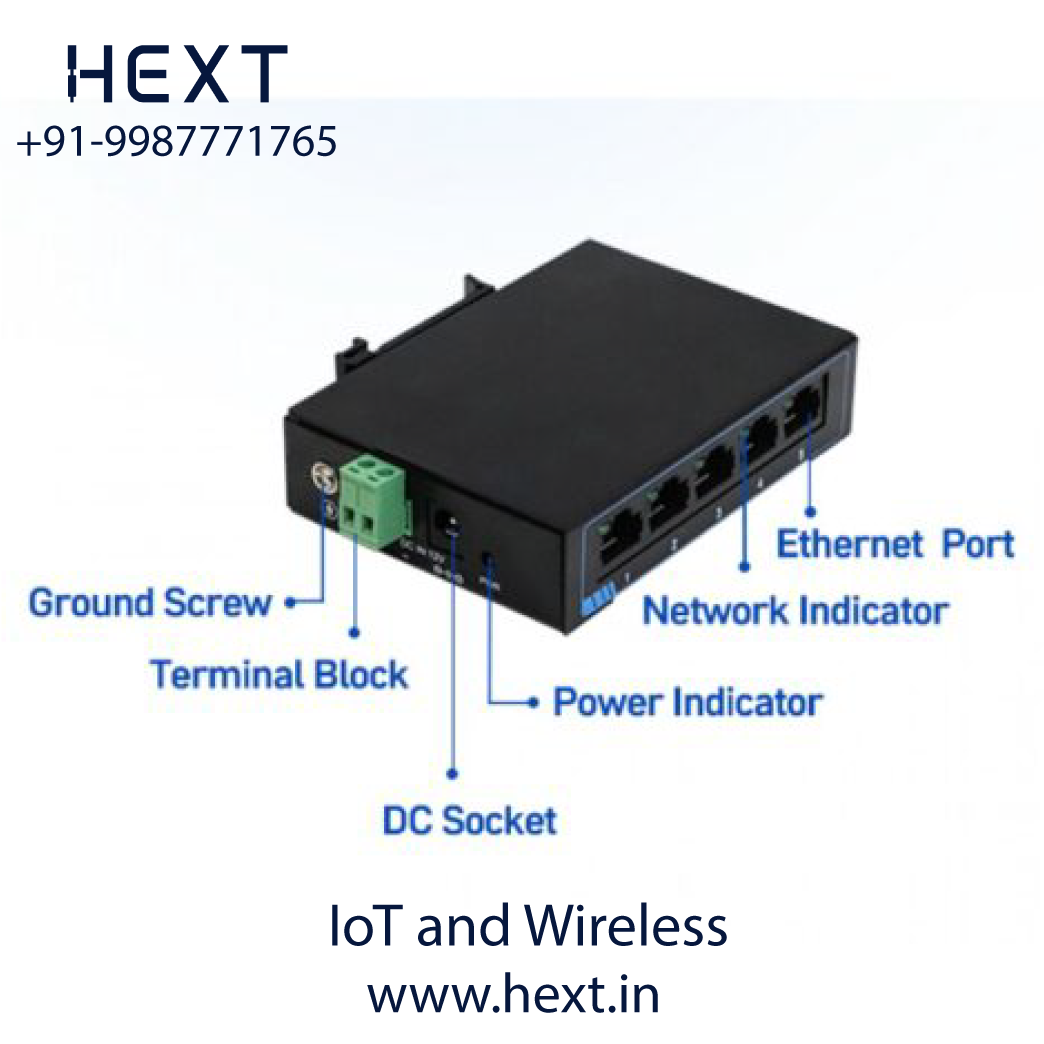

• 🔍 LED Indicators – Each port includes Link/Act status lights for monitoring connectivity.

• 🔌 Plug & Play Operation – No software setup or configuration needed.

• 💨 Silent & Energy-Efficient – Fanless design with low power consumption.

• 🏗 Industrial-Grade Casing – Frosted iron shell for durability, wear resistance, and explosion-proof protection.

• 🖥 Flexible Mounting – Supports desktop, wall-mount, and DIN-rail installations.

Applications

The USR-SF1005 unmanaged switch is ideal for:

• Small & medium-sized office networks

• SOHO/home office networking

• Video surveillance systems

• Quasi-industrial automation networks

• Simple LAN expansions

✅ With 5 Ethernet ports, rugged construction, and plug-and-play operation, the USR-SF1005 delivers a reliable and cost-effective solution for expanding Fast Ethernet networks.
