USR-N540-H7-4 Serial to Ethernet Converter | 4-Port RS485 to Ethernet Device Server | USR IOT

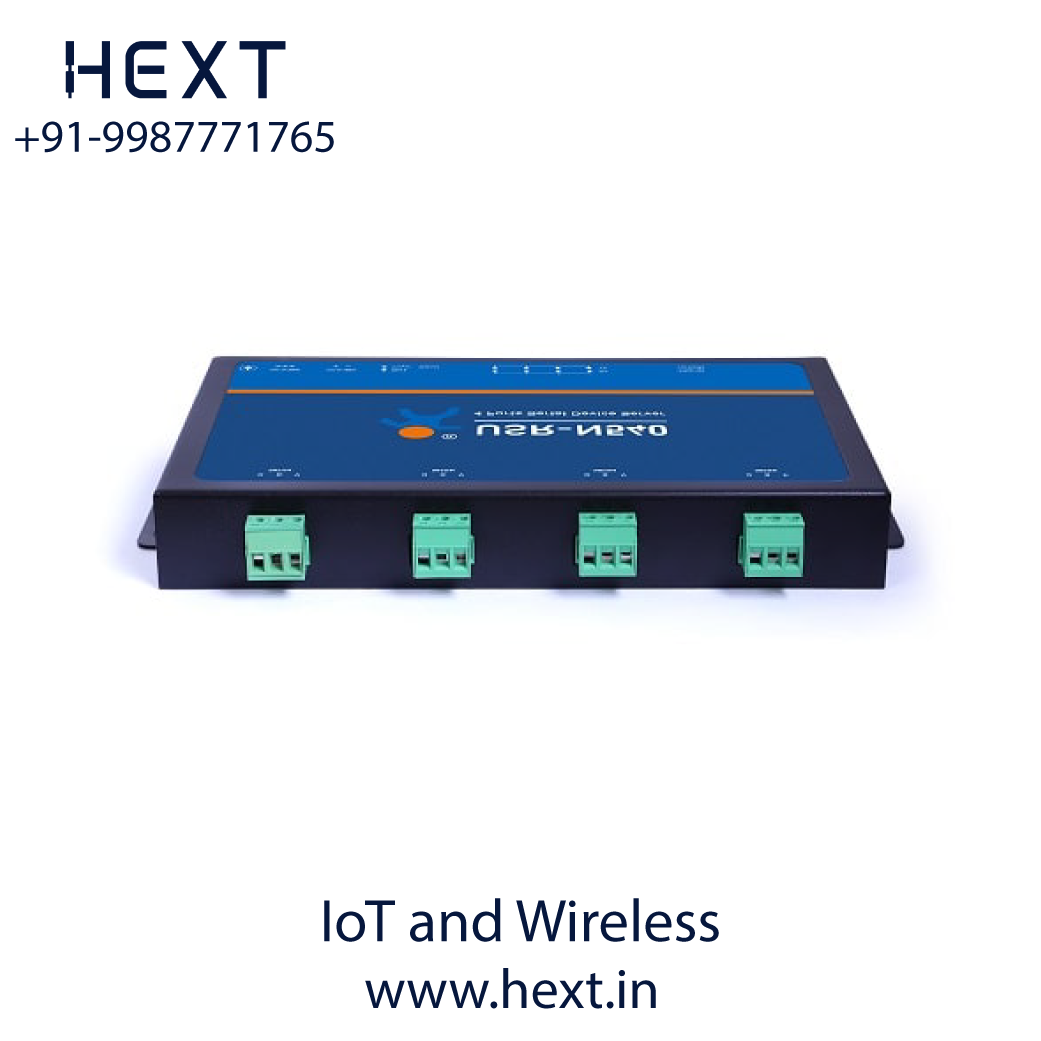

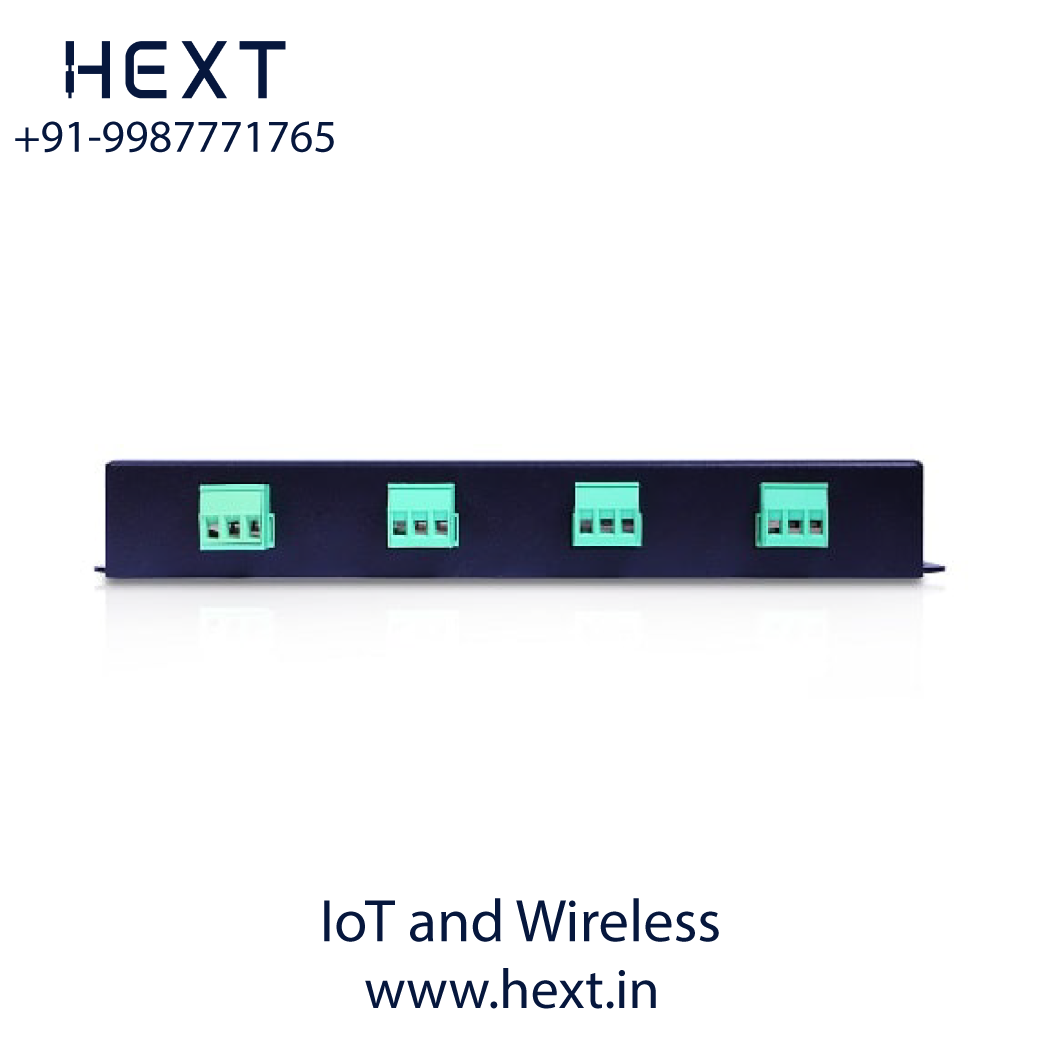

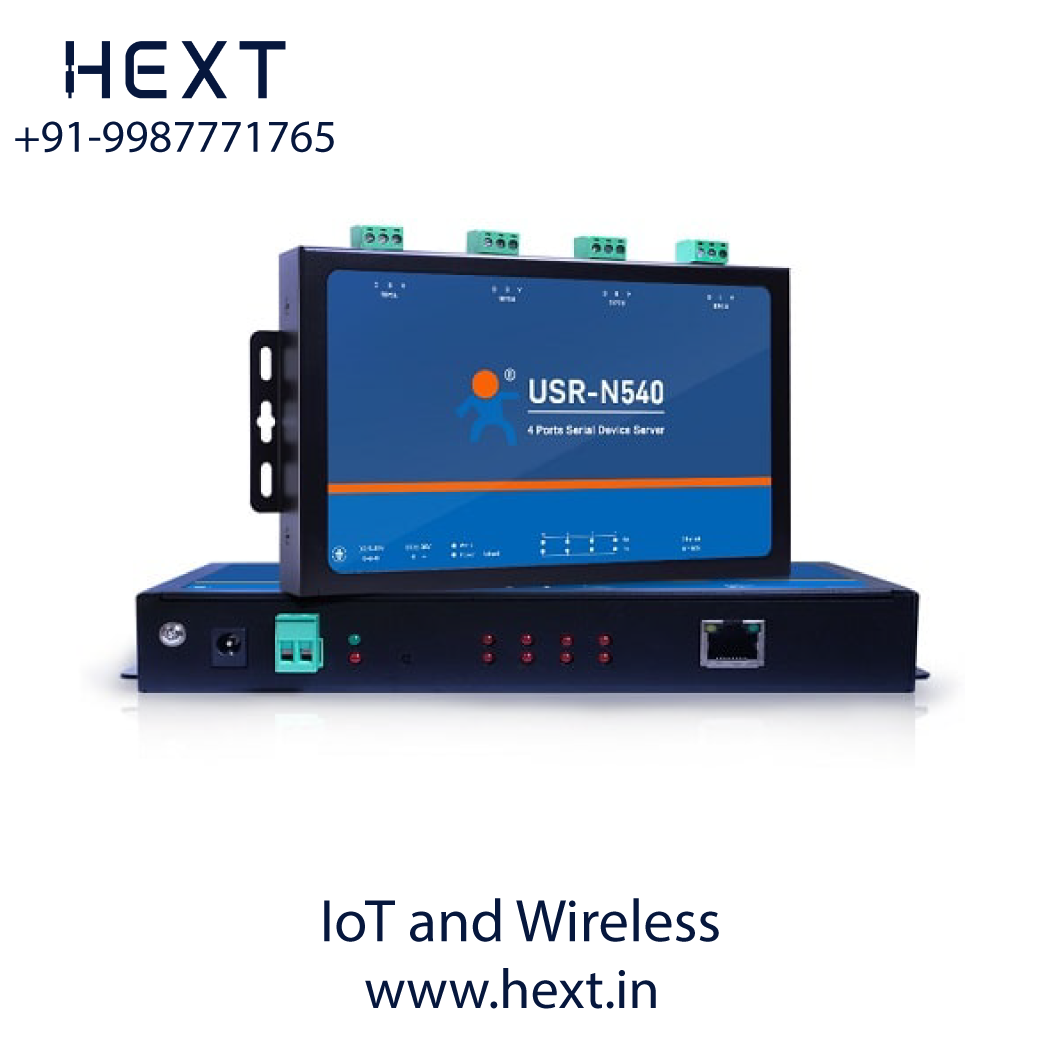

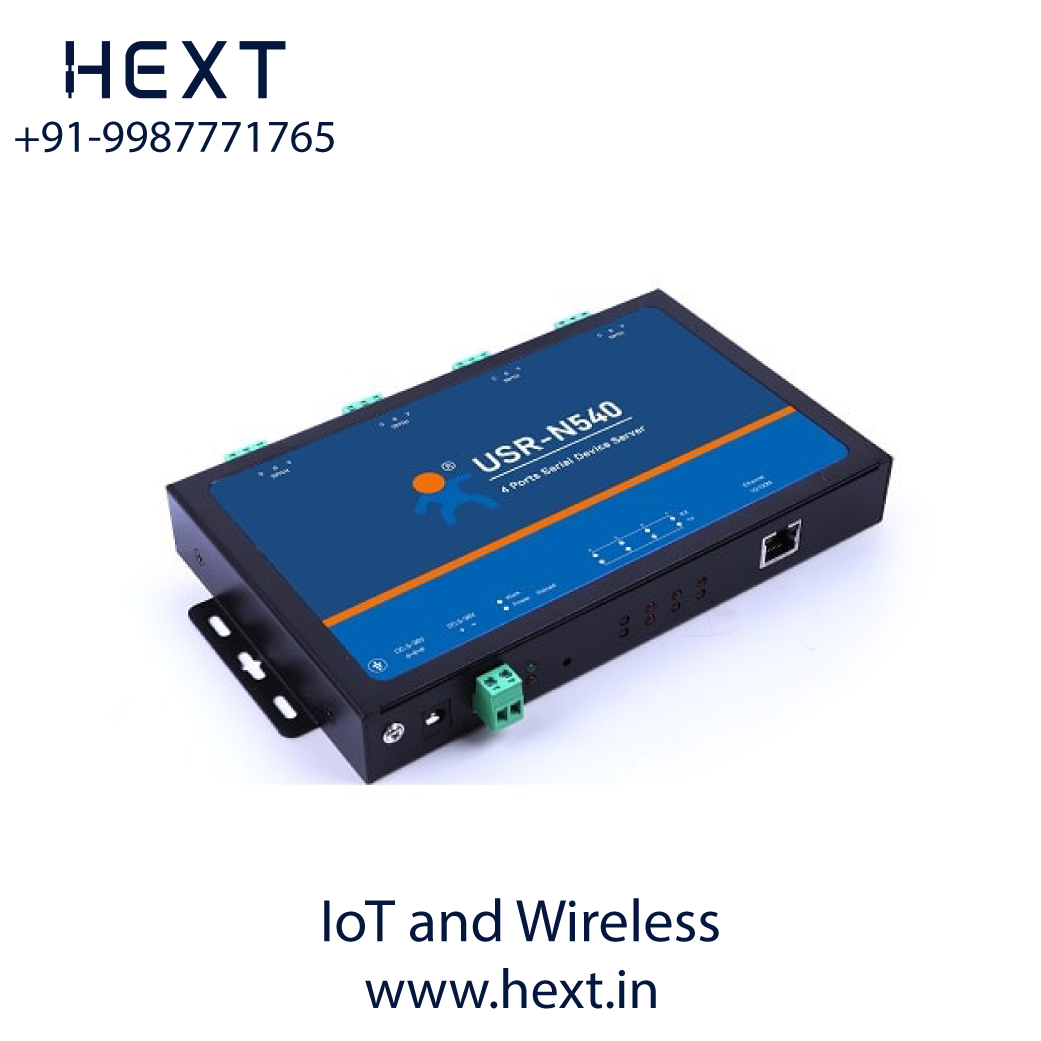

The USR-N540-H7-4 is a high-performance 4-port RS485 to Ethernet converter designed by USR IOT for industrial-grade networking applications. It enables bi-directional transparent transmission between RS485 serial devices and Ethernet networks, ensuring seamless data communication in automation and IoT environments.
Equipped with an ARM Cortex-M7 core running at 400MHz, the USR-N540-H7-4 delivers fast processing speed, enhanced stability, and reliable performance for critical applications. It supports multiple protocols including Modbus RTU to Modbus TCP, Modbus Polling, and Modbus to JSON, making it a versatile solution for system integration.
Key Features:
-
4 independent RS485 ports (supports RS232/RS485/RS422 selectable).
-
Wide voltage input (DC 5–36V) with reverse polarity and redundant power protection.
-
Supports TCP Server, TCP Client, UDP, and HTTPD Client modes.
-
Advanced security protocols including SSL/TLS encryption, TCPS, HTTPS, and MQTTS.
-
Hardware watchdog for automatic recovery and stable operation.
-
Built-in edge computing and Modbus RTU Master support.
-
Flow control (XON/XOFF) for efficient data transmission.
Applications:
-
EV charging pile systems
-
Industrial automation and control
-
Smart weighing solutions (unattended systems)
-
IoT and remote monitoring networks
The USR-N540-H7-4 RS485 to Ethernet Converter is the ideal choice for industries that demand secure, reliable, and high-speed serial-to-Ethernet communication.
