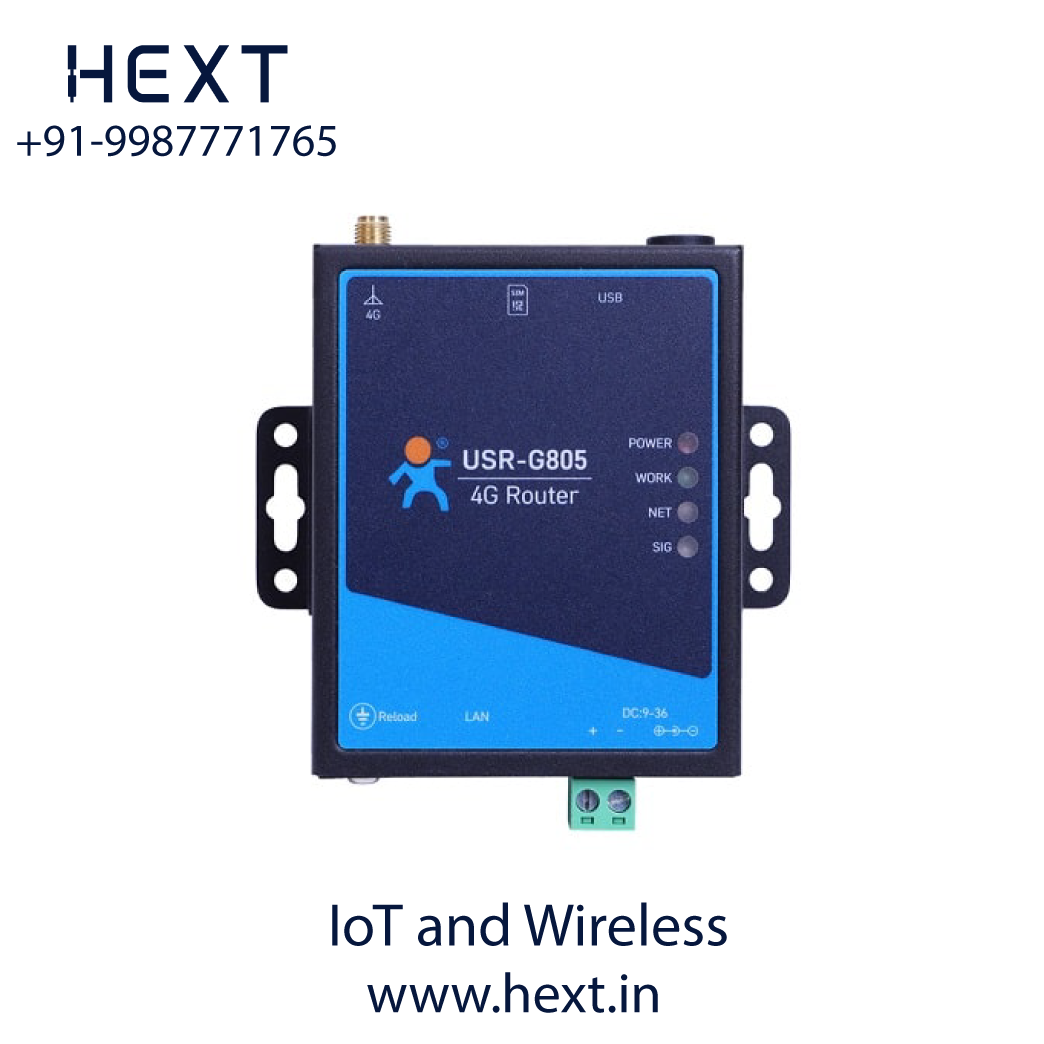

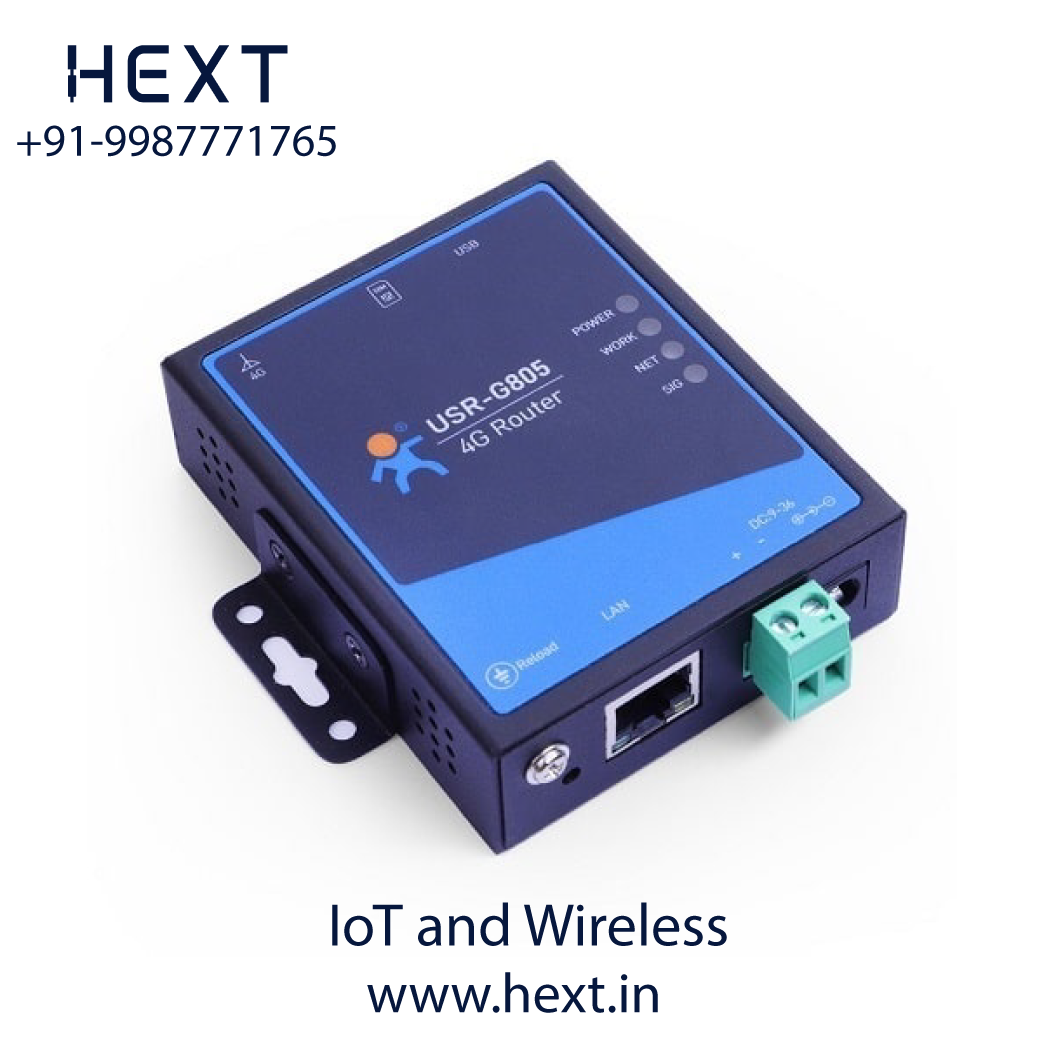

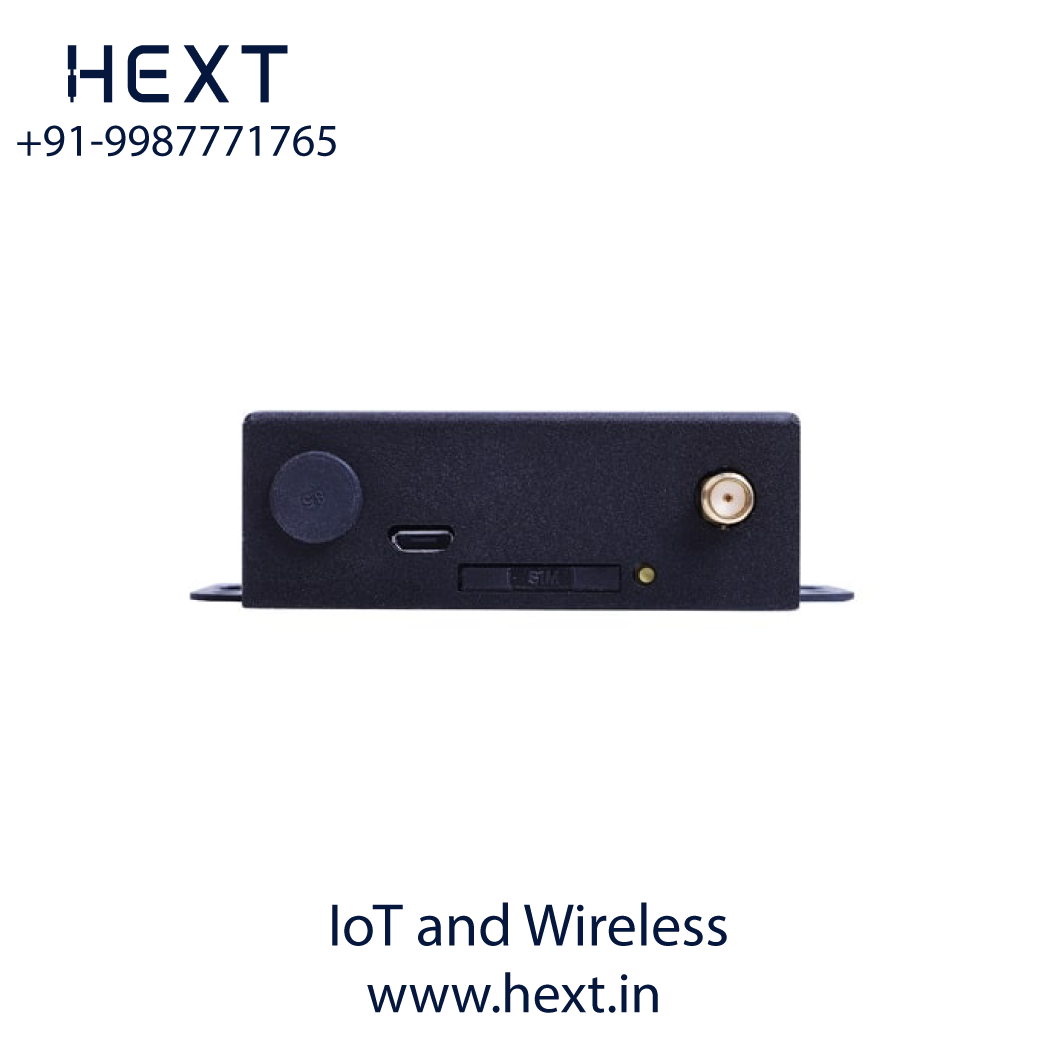

USR-G805-EXEUX Mini Industrial 4G Cellular Router | USR IOT

The USR-G805-EXEUX Cellular Router is a compact, economical, and industrial-grade 4G router designed for reliable and secure mobile networking. Powered by a Qualcomm Cat 4 LTE module and a 1GHz CPU, it ensures high-speed connectivity, stable performance, and advanced security for IoT, industrial automation, and remote applications.

Key Features:

• Compact & durable design – 70 × 86 × 25 mm, easy to deploy in space-limited environments.

• High-speed 4G LTE access – Up to 150 Mbps download / 50 Mbps upload.

• Wide network support – 4G/3G/2G, with global frequency bands (TDD-LTE, FDD-LTE, WCDMA, GSM/EDGE).

• Strong security – Supports PPTP/L2TP VPN tunnels, APN/VPDN private network access.

• Reliable power design – 9–36V DC wide voltage input with hardware watchdog.

• Remote management – USR Cloud platform for centralized monitoring and control.

• Firmware management – Local/remote firmware upgrade, backup & import support.

• Diagnostics & debugging – Local/remote logs for easy troubleshooting.

• Fast boot time – Starts operating within 30 seconds, quicker than conventional routers.

Frequency Bands:

• TDD-LTE: B38/B40/B41

• FDD-LTE: B1/B3/B7/B8/B20/B28A

• WCDMA: B1/B8

• GSM/EDGE: B3/B8

Applications:

The USR-G805-EXEUX is widely adopted across IoT and industrial scenarios where cost-effectiveness, compact size, and secure mobile networking are essential:

• Video Surveillance Systems – Stable 4G connectivity for cameras and monitoring equipment.

• Smart Vending Machines & Remote Kiosks – Secure transactions and remote management.

• Industrial Automation – Reliable wireless communication for PLCs and sensors.

• Remote Device Management – Centralized control of multiple IoT endpoints via USR Cloud.
