S2B 2A 100V General Purpose Rectifier Diode | SMB / DO-214AA | Efficient & Durable Power Rectification

SEP

WhatsApp Us WhatsApp Call us Phone Mail Us Email

The S2B diode provides 2A current capacity and 100V reverse voltage, designed for efficient power conversion in space-saving SMD applications. Its low forward voltage and excellent thermal stability make it a reliable choice for high-efficiency power supplies.

🔧 Key Specifications

Parameter Value
Part Number S2B
Peak Repetitive Reverse Voltage 100V
Average Forward Current 2.0A
Peak Forward Surge Current 50A
Forward Voltage Drop 1.15V @ 2A
Reverse Current 5µA @ 100V

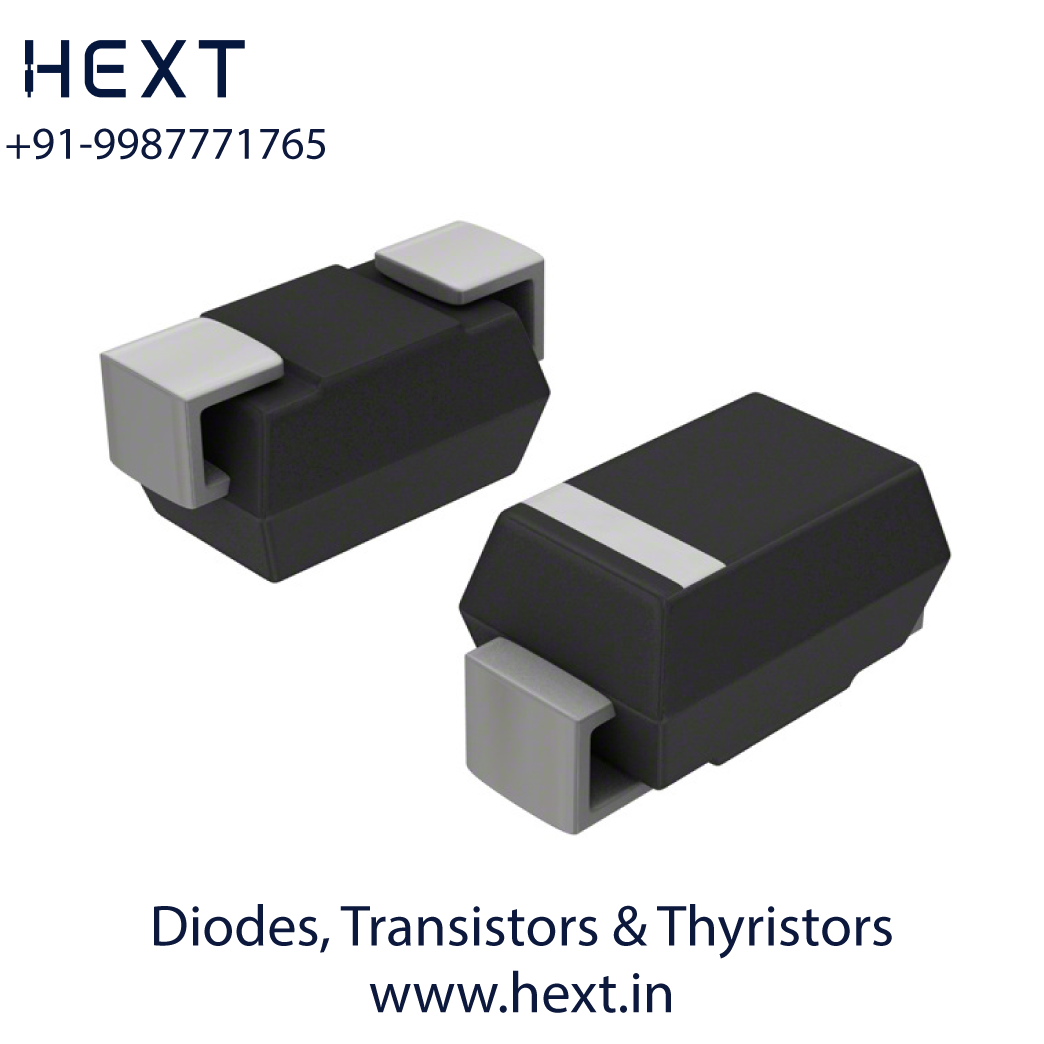

Package SMB / DO-214AA
Operating Temperature −55°C to +150°C

💡 Features & Benefits

  • Low power loss and heat generation

  • Compact and reliable surface-mount package

  • Strong surge current handling

  • Long-term operational stability

⚙️ Applications

  • Power conversion circuits

  • AC/DC adapters

  • Consumer electronics

  • DC supply rectification
