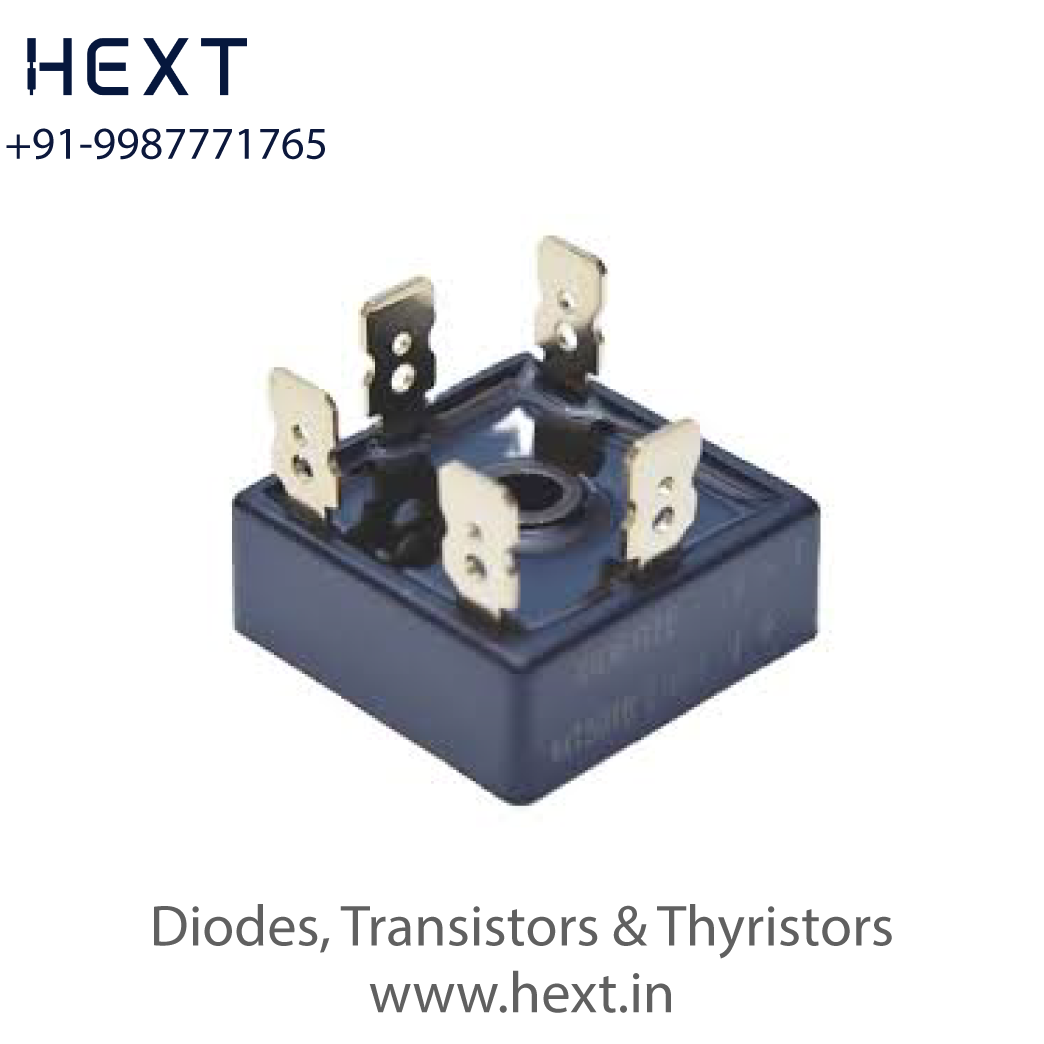

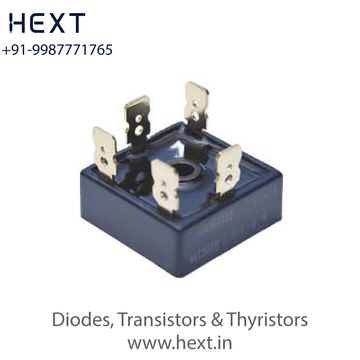

MT2501 – 100V 25A Three-Phase Bridge Rectifier in MT Package | 25A 100V 3-Phase AC/DC Power Bridge

The MT2501 supports 100V reverse voltage with 25A continuous DC rails for balanced 3-phase rectification. A 300A surge limit protects against power bursts, making it ideal for rugged 3-phase AC-DC power blocks operating at 100V DC bus rails.

Key Specifications

• VRRM: 100V

• IF: 25.0A

• TJ Max: 55°C

• IFSM: 300A

• VF: 1.0V

• IR: 12.5µA

• Trr: 10µs

• Package: MT

Features

• High surge immunity

• Low conduction and leakage loss

• 100V DC rail rectifier integration

Applications

• 100V 25A industrial PSU bridges

• 3-phase control power rectification
