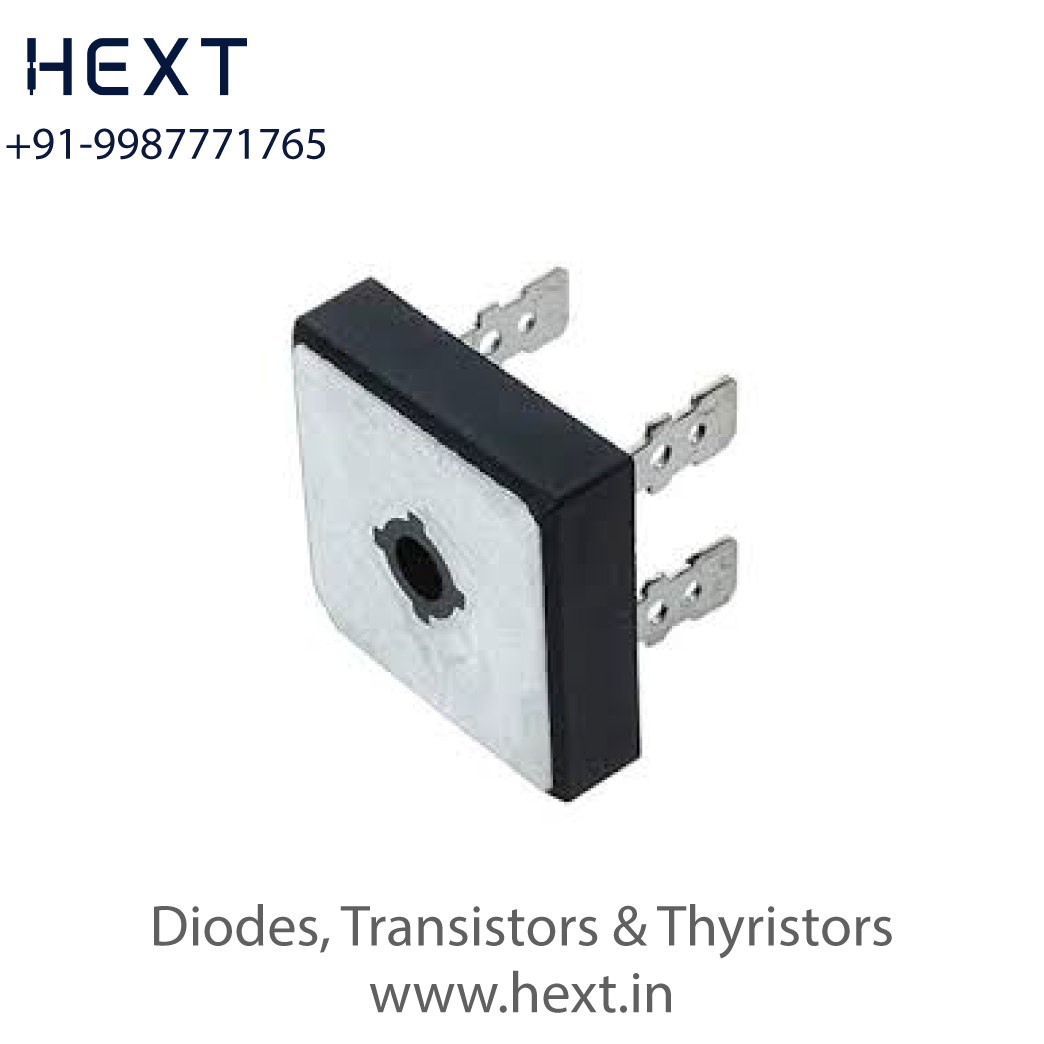

MP5010 1000V 50A Single-Phase Bridge Rectifier | MP Package | 1kV Heavy-Duty Industrial AC-DC Rectifier HORNBY

The MP5010 provides 1kV reverse blocking with 50A continuous DC output engineered for high-voltage industrial AC-DC conversion systems. A 400A surge rating withstands aggressive inrush, overload bursts, and grid anomalies. Leak-minimized 25µA reverse current ensures clean and stable DC bus performance in high-power front ends.

Key Specifications

• VRRM: 1000V

• IF (DC): 50.0A

• Tcase: 55°C

• IFSM: 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: MP

Features

• 1kV reverse-voltage resilience

• Strong surge & transient endurance

• Low leakage & conduction loss path

• Thermal-rugged high-power module

Applications

• 1kV transformer & mains bridge

• Industrial PSU and DC bus rectifiers

• Drives, converters, power chargers
