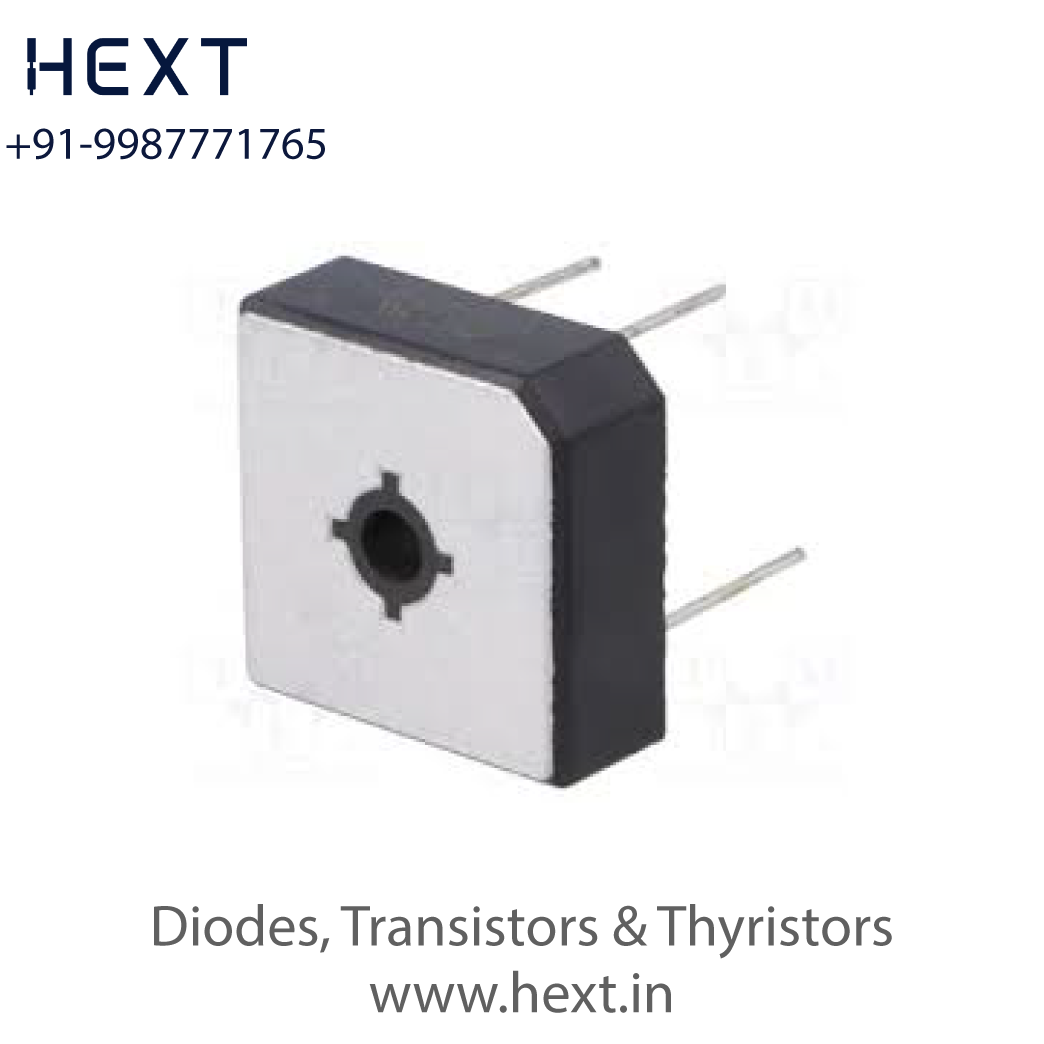

MP5006W 600V 50A Single-Phase Bridge Rectifier | MPW Package | 600V Industrial High-Power Rectifier HORNBY

The MP5006W withstands 600V reverse voltage and supplies 50A continuous rectified current. Its strong surge tolerance handles transformer energization and grid irregularities while sustaining reliable output in high-power electrical systems.

Key Specifications

• VRRM: 600V

• IF (DC): 50.0A

• Tcase: 55°C

• IFSM: 25A

• VF: 1.0V

• IR: 10µA

• Trr: 10µs

• Package: MPW

Features

• 600V high-voltage protection

• Rugged construction for harsh electrical loads

• Low leakage for stable high-voltage DC rails

• Optimized thermal architecture

Applications

• 600V AC mains rectifiers

• Motor drive power stages

• Industrial power converters

• High-voltage chargers
