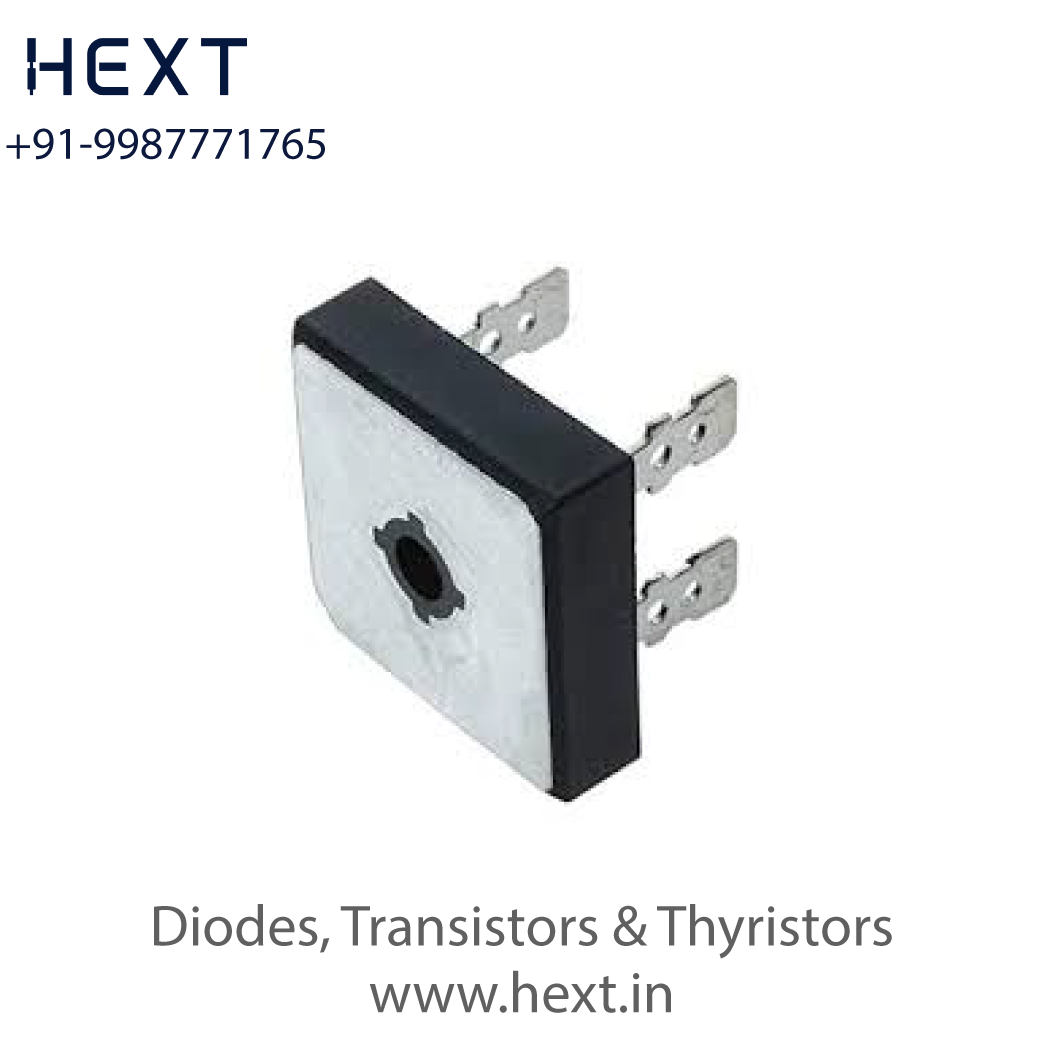

MP5006 600V 50A Single-Phase Bridge Rectifier | MP Package | 600V High-Power AC-DC Bridge HORNBY

The MP5006 delivers 600V reverse voltage capability with 50A continuous DC output for high-power industrial AC input bridges. Its 400A surge rating ensures resilience under inrush, overload, and grid-induced spikes. Low leakage (25µA) maximizes DC bus stability and energy efficiency.

Key Specifications

• VRRM: 600V

• IF (DC): 50.0A

• Tcase: 55°C

• IFSM: 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: MP

Features

• 600V reverse blocking

• High surge endurance

• Efficient low-loss rectification

Applications

• Industrial AC-DC front end

• Motor drives and power converters

• High-voltage DC bus systems
