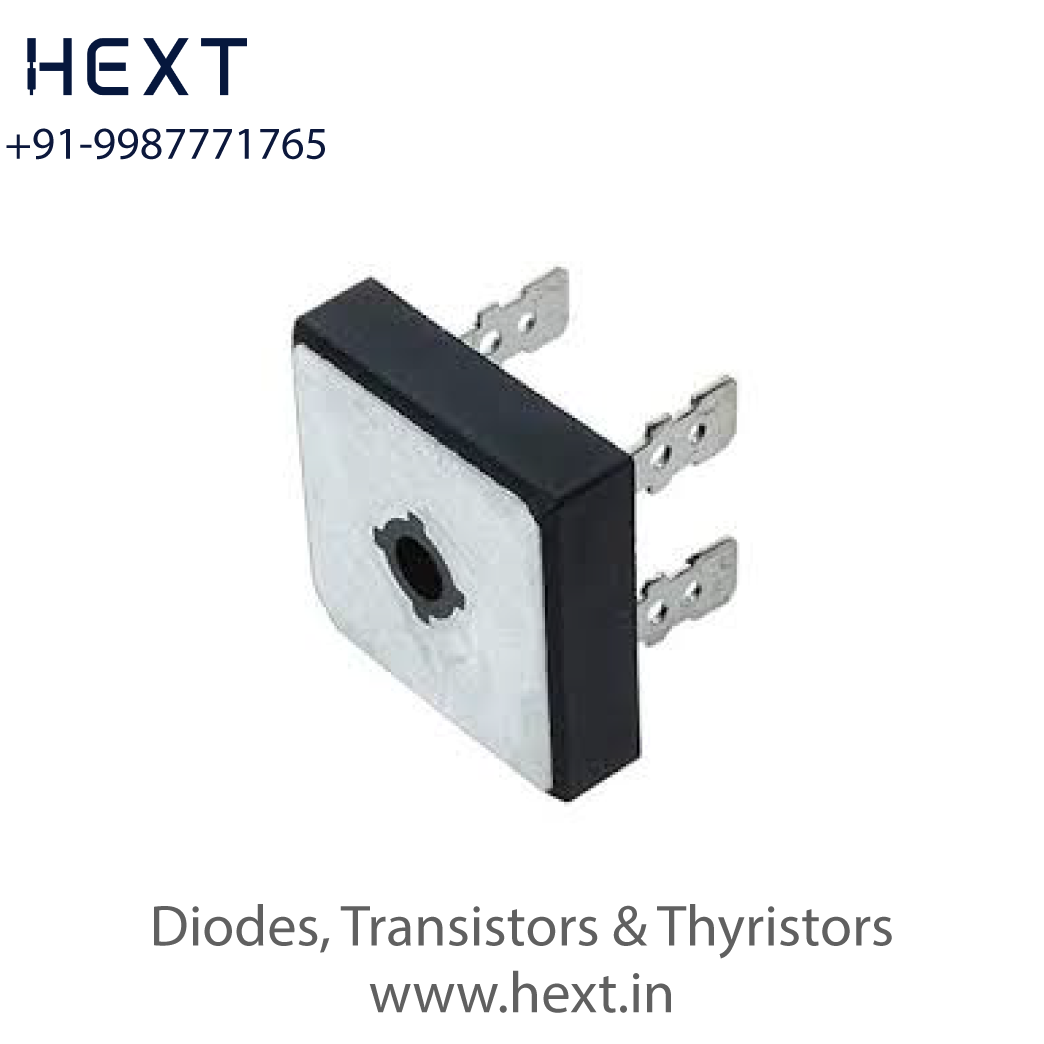

MP5002 200V 50A Single-Phase Bridge Rectifier | MP Package | High-Reliability 200V Power Bridge HORNBY

The MP5002 delivers 200V reverse blocking with 50A continuous rectification for high-current industrial AC-DC conversion systems. With a 400A surge rating, it tolerates harsh inrush events and AC grid disturbances. Low 25µA leakage preserves DC bus integrity under continuous operation.

Key Specifications

• VRRM: 200V

• IF (DC): 50.0A

• Tcase Temp: 55°C

• IFSM: 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: MP

Features

• 200V reverse voltage margin

• Rugged surge endurance

• Low-loss forward conduction path

Applications

• Industrial AC-DC rectifier module

• 50A DC bus infrastructure

• Drives, UPS, power converters
