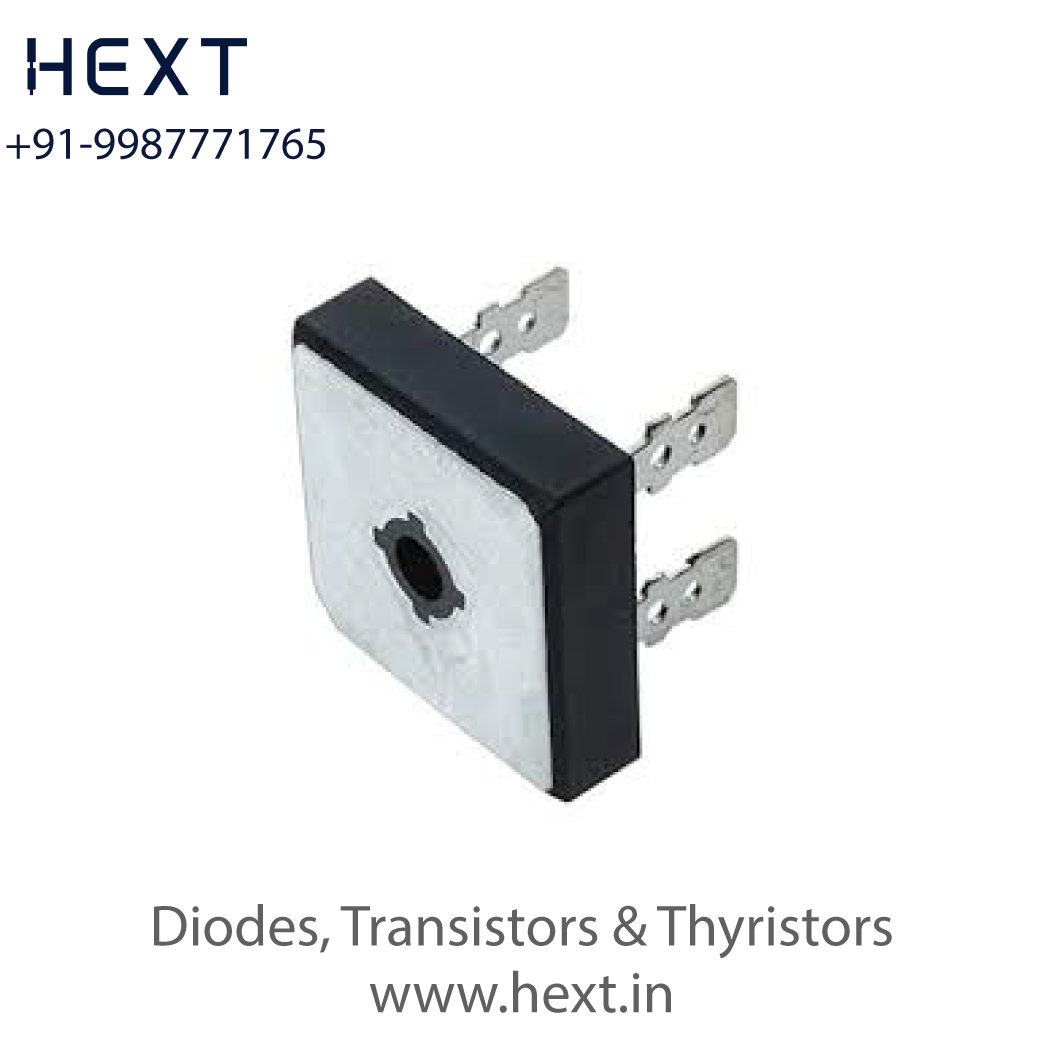

MP5001 100V 50A Single-Phase Bridge Rectifier | MP Package | 100V Heavy-Duty Power Bridge HORNBY

The MP5001 supports 100V reverse blocking with 50A continuous rectified output, ideal for industrial AC-DC power stages. A 400A surge capability protects against heavy transformer inrush and mains transients. A 25µA leakage current ensures stable long-term DC rail performance.

Key Specifications

• VRRM: 100V

• IF (DC): 50.0A

• Tcase Temp: 55°C

• IFSM: 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: MP

Features

• 100V blocking rating

• 50A continuous output

• Strong surge and overload immunity

• Low conduction & leakage losses

Applications

• Industrial PSU front stages

• High-power DC bus rectification

• Drives, converters, chargers
