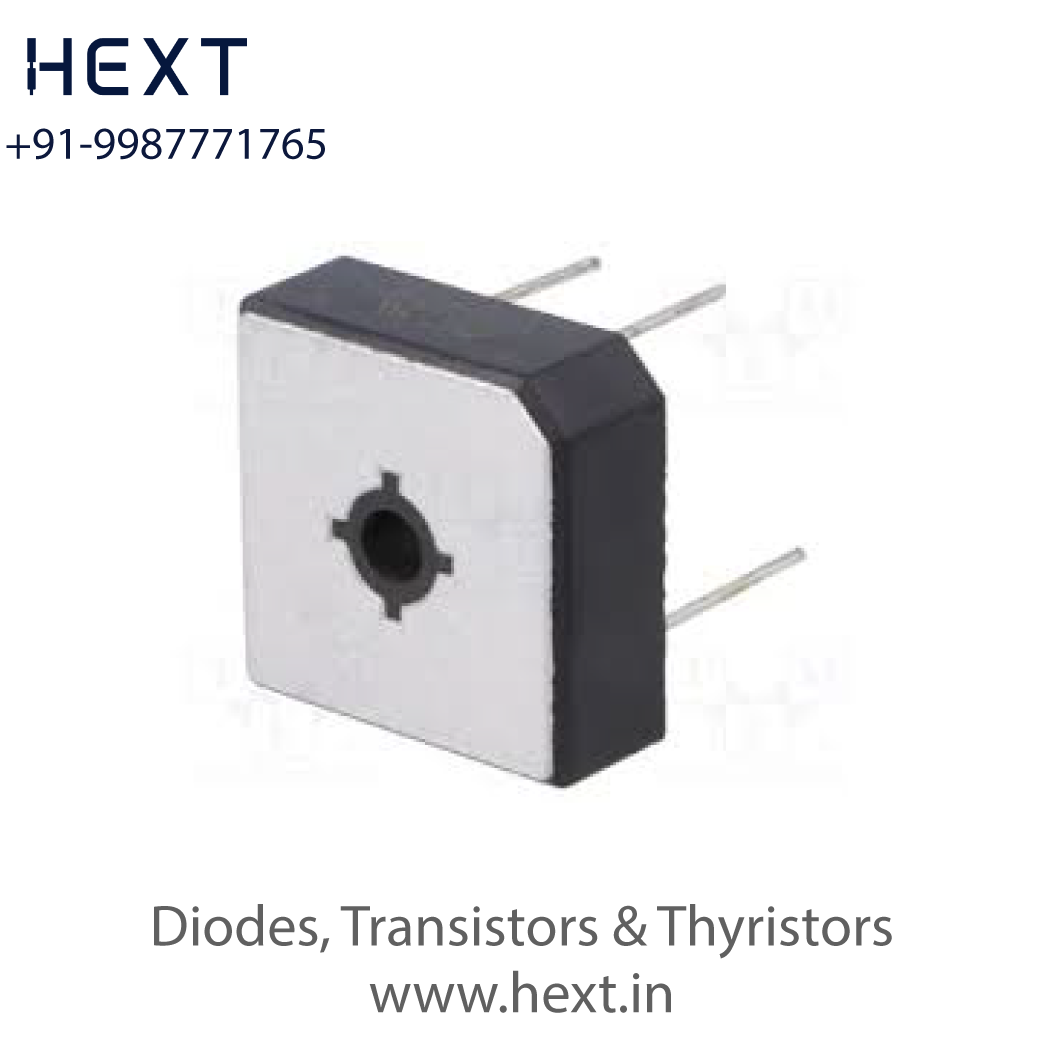

MP50005W 50V 50A Single-Phase Bridge Rectifier | MPW Package | Low-Voltage High-Current AC-DC Rectifier HORNBY

The MP50005W delivers 50V reverse blocking with 50A continuous output capability for low-voltage, high-current AC-DC conversion stages. A robust 55°C case rating and stable thermal path ensure reliable operation in transformer-isolated power systems. Low leakage and controlled recovery support clean DC generation in heavy-current rails.

Key Specifications

• VRRM: 50V

• IF (DC): 50.0A

• Tcase: 55°C

• IFSM: 25A

• VF: 1.0V

• IR: 10µA

• Trr: 10µs

• Package: MPW

Features

• Optimized for low-voltage AC-DC rectification

• Stable conduction under continuous 50A load

• Low leakage for clean DC output

• Rugged MPW construction for high-current power blocks

Applications

• Low-voltage transformer bridges

• DC bus rectification

• High-current SMPS front-ends

• Industrial low-voltage conversion stages
