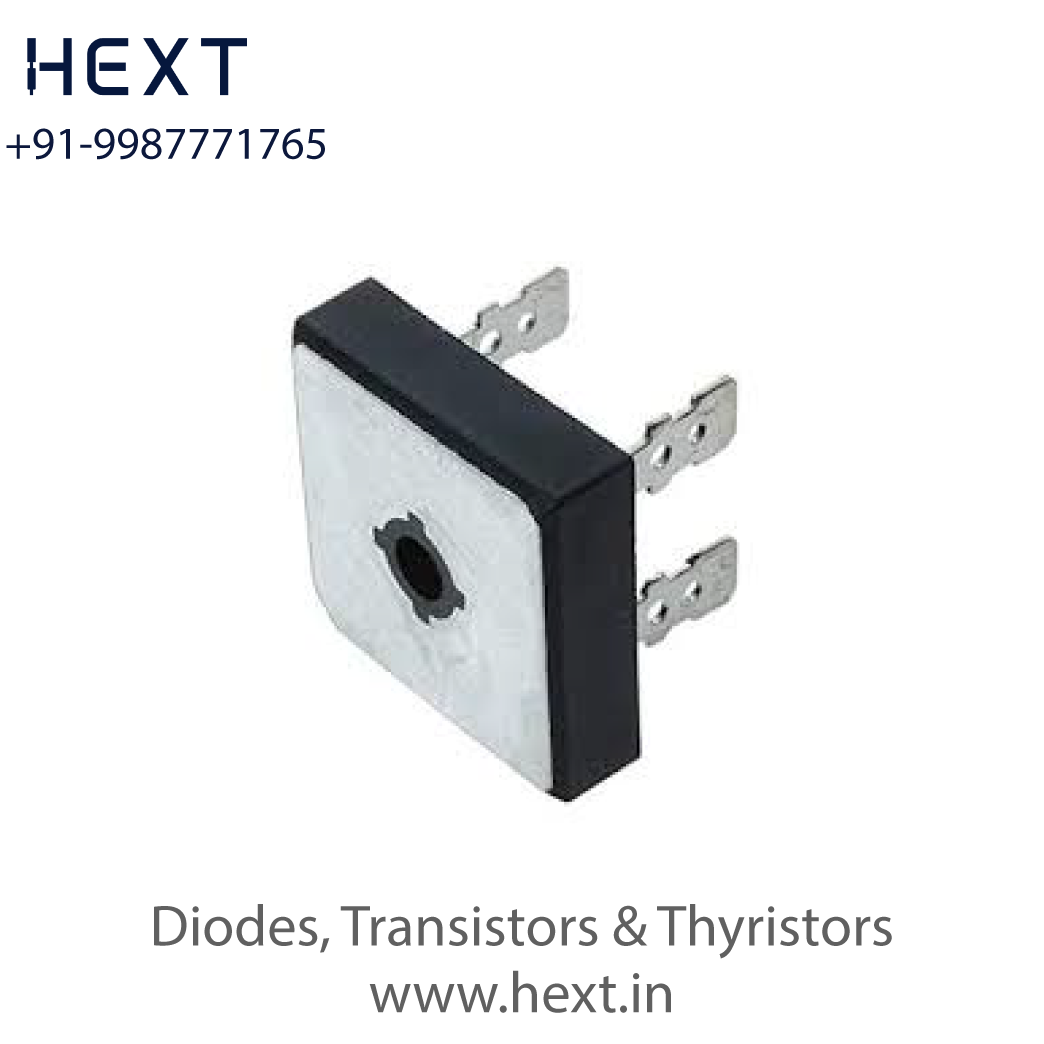

MP50005 50V 50A Single-Phase Bridge Rectifier | MP Package | High-Current Industrial AC-DC Bridge HORNBY

The MP50005 provides 50V reverse blocking with 50A continuous DC output for high-current single-phase rectification stages. A 400A surge rating handles transformer inrush, overload bursts, and AC line spikes with strong robustness. Low 25µA reverse leakage ensures long-term DC bus stability in industrial converter front ends.

Key Specifications

• VRRM: 50V

• IF (DC): 50.0A

• Tcase Reference / Temp: 55°C

• IFSM: 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: MP

Features

• 50A heavy-current rectification path

• 50V reverse-voltage headroom

• 400A surge immunity for inrush handling

• Low VF and low leakage for reduced losses

• Industrial-grade thermal module design

Applications

• Transformer secondary rectifier blocks

• Industrial AC-DC SMPS front end

• High-current DC bus input bridge

• Drives, converters, chargers
