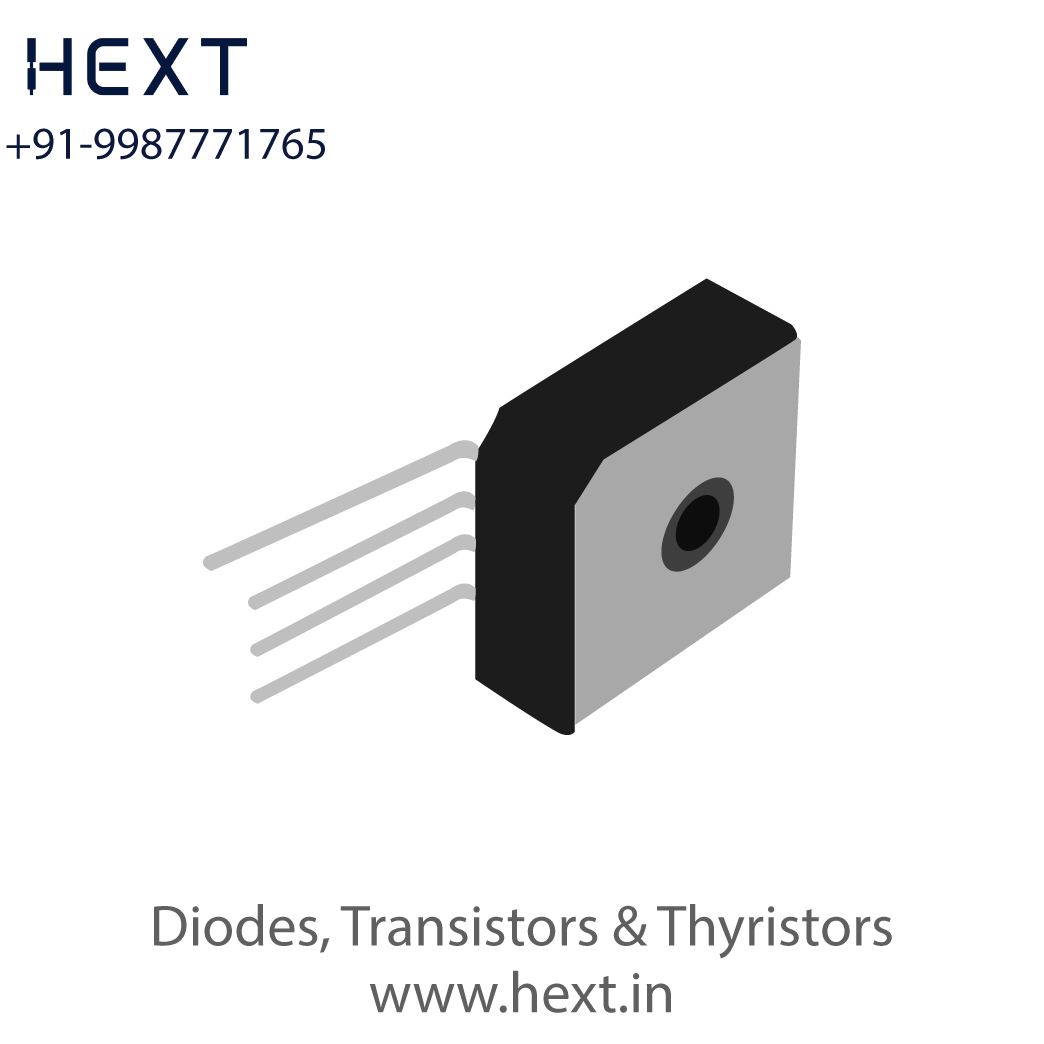

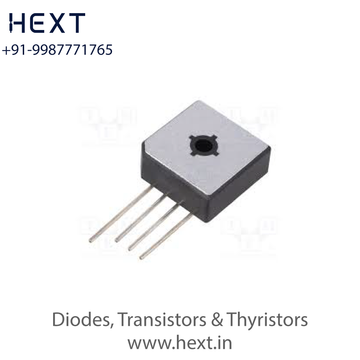

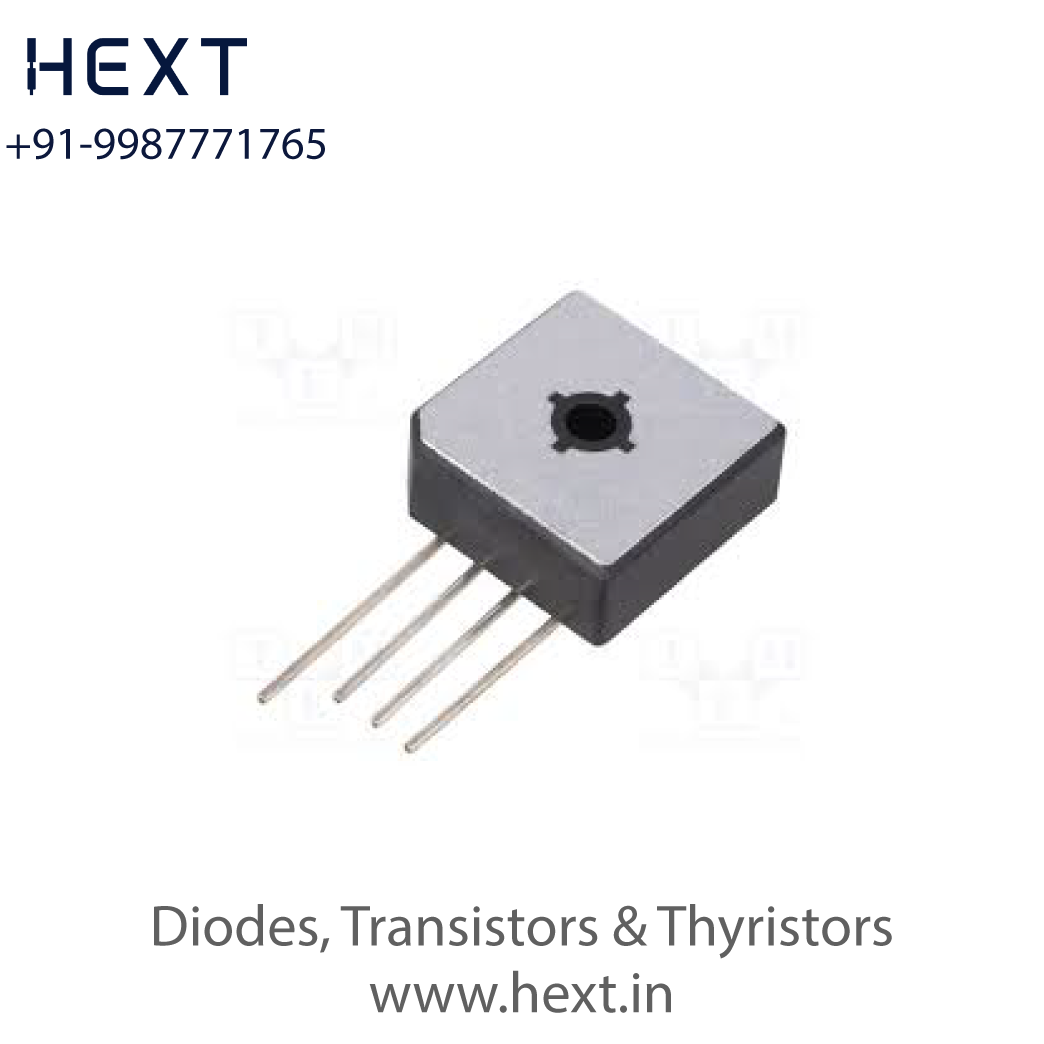

MP4010S 1000V 40A Single-Phase Bridge Rectifier in MPS Package | 1kV 40A Power Rectifier HORNBY

The MP4010S supports 1000V reverse blocking delivering 40A continuous DC output designed for high-power industrial mains input bridges. A 400A surge endurance rating protects against strong inrush, transformer peaks, overload bursts, and mains voltage spikes. Ultra-low 20µA reverse leakage assures long-term DC bus stability, integrity, and rail protection in power-dense AC-to-DC converter front stages.

Key Specifications

• VRRM: 1000V

• IF (DC): 40.0A

• TJ Max / Temp: 100°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 20µA

• Trr: 10µs

• Package: MPS

Features

• 1kV reverse-voltage safety margin

• 400A surge tolerance for aggressive inrush handling

• Low conduction and leakage-loss optimized path

• Thermal rugged, high-current single-phase module conduction bridge

Applications

• Industrial AC-DC PSU front stage

• High-power DC bus infrastructure

• Motor drives, converters, battery chargers

• Transformer 1kV 40A input bridge modules
