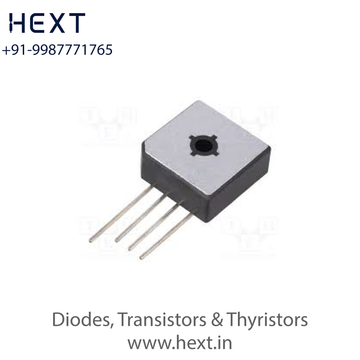

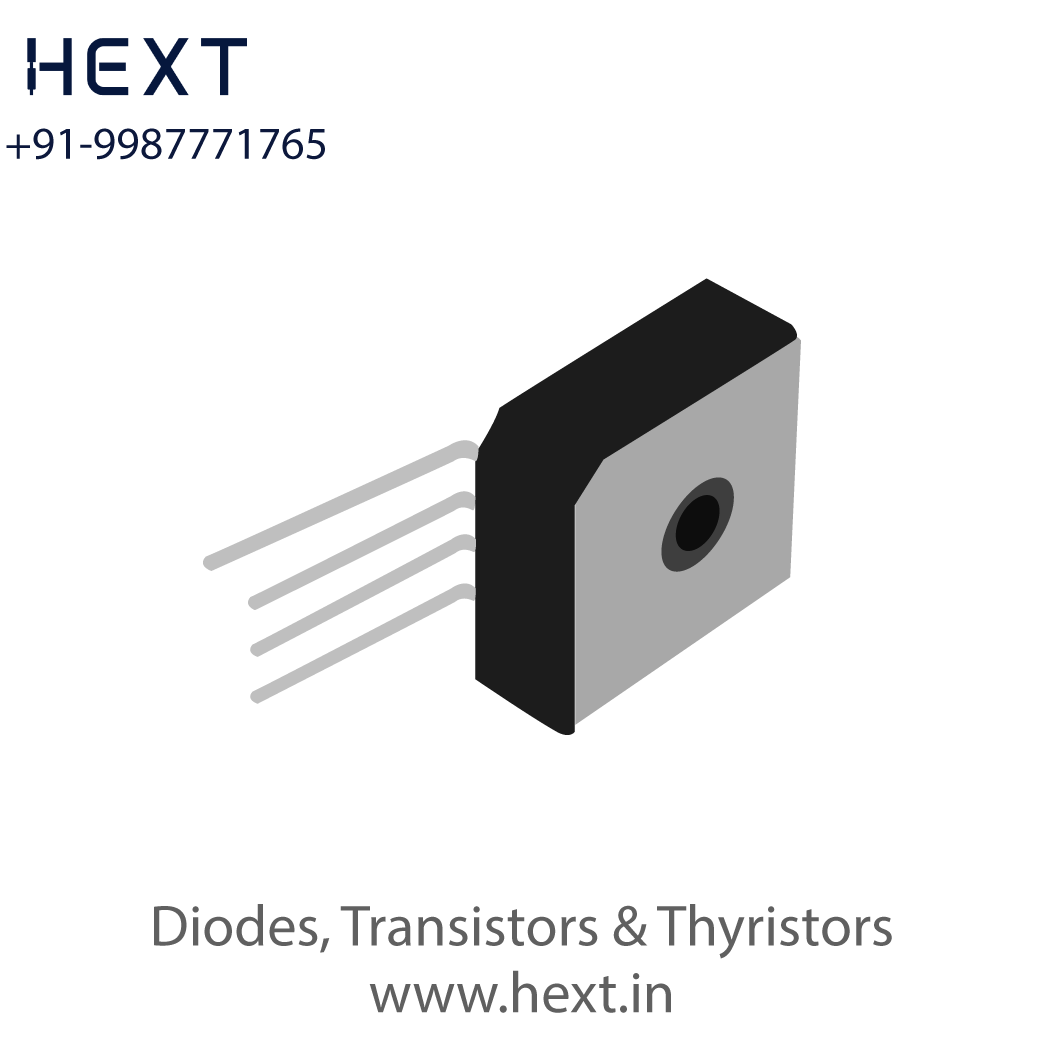

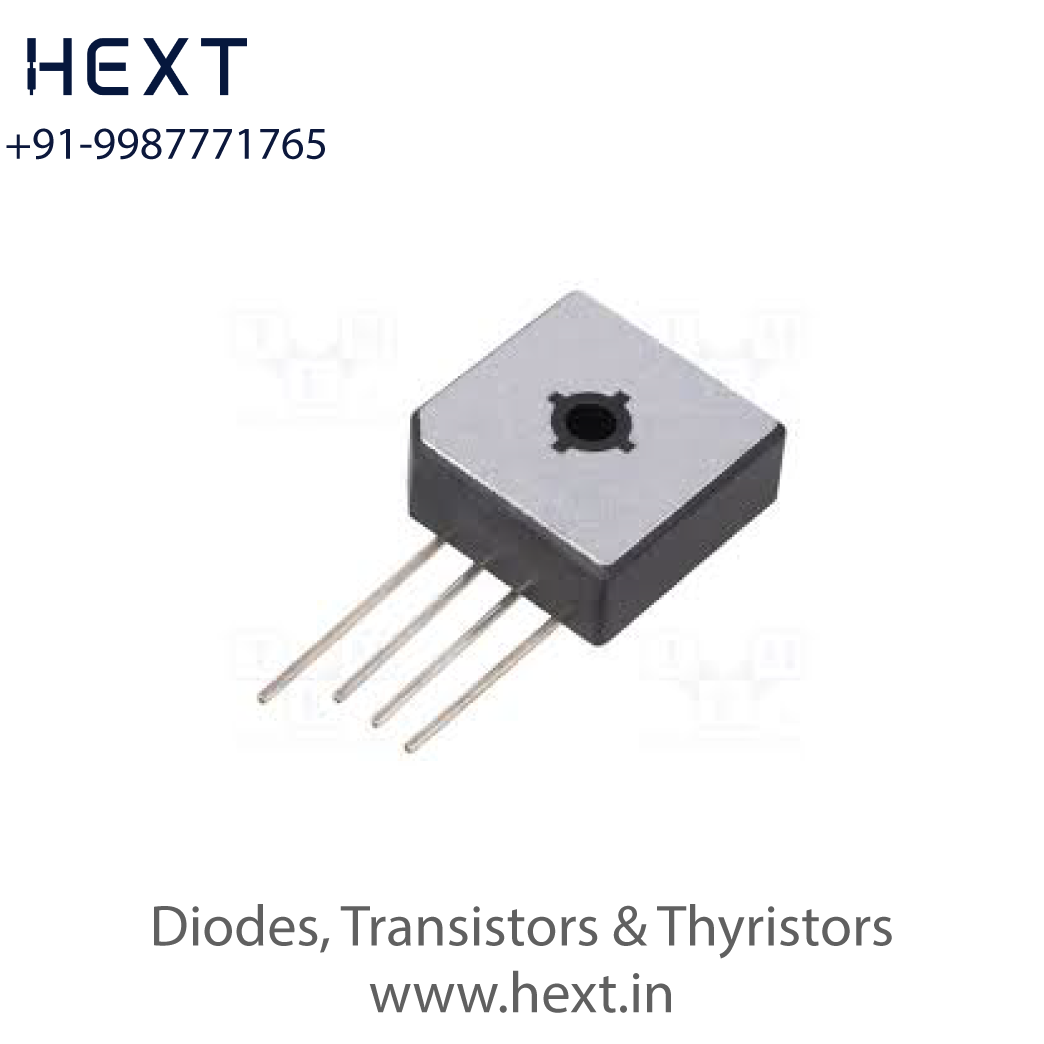

MP4004S 400V 40A Single-Phase Bridge Rectifier in MPS Package | 40A 400V Industrial Rectifier HORNBY

The MP4004S handles 400V reverse blocking with 40A continuous DC output, ideal for high-current industrial mains input bridges. A 400A surge rating protects DC rails against strong inrush, grid transients, overload bursts, and aggressive mains spikes. Very low 20µA reverse leakage maintains long-term DC bus integrity.

Key Specifications

• VRRM: 400V

• IF (DC): 40.0A

• TJ Max / Temp: 100°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 20µA

• Trr: 10µs

• Package: MPS

Features

• 400V reverse-voltage endurance

• 400A surge for strong industrial inrush immunity

• Low conduction and leakage loss path

• Thermal rugged power bridge rectifier module

Applications

• Industrial AC-DC PSU front stage

• DC bus and rectifier bridges

• Drives, converters, chargers
