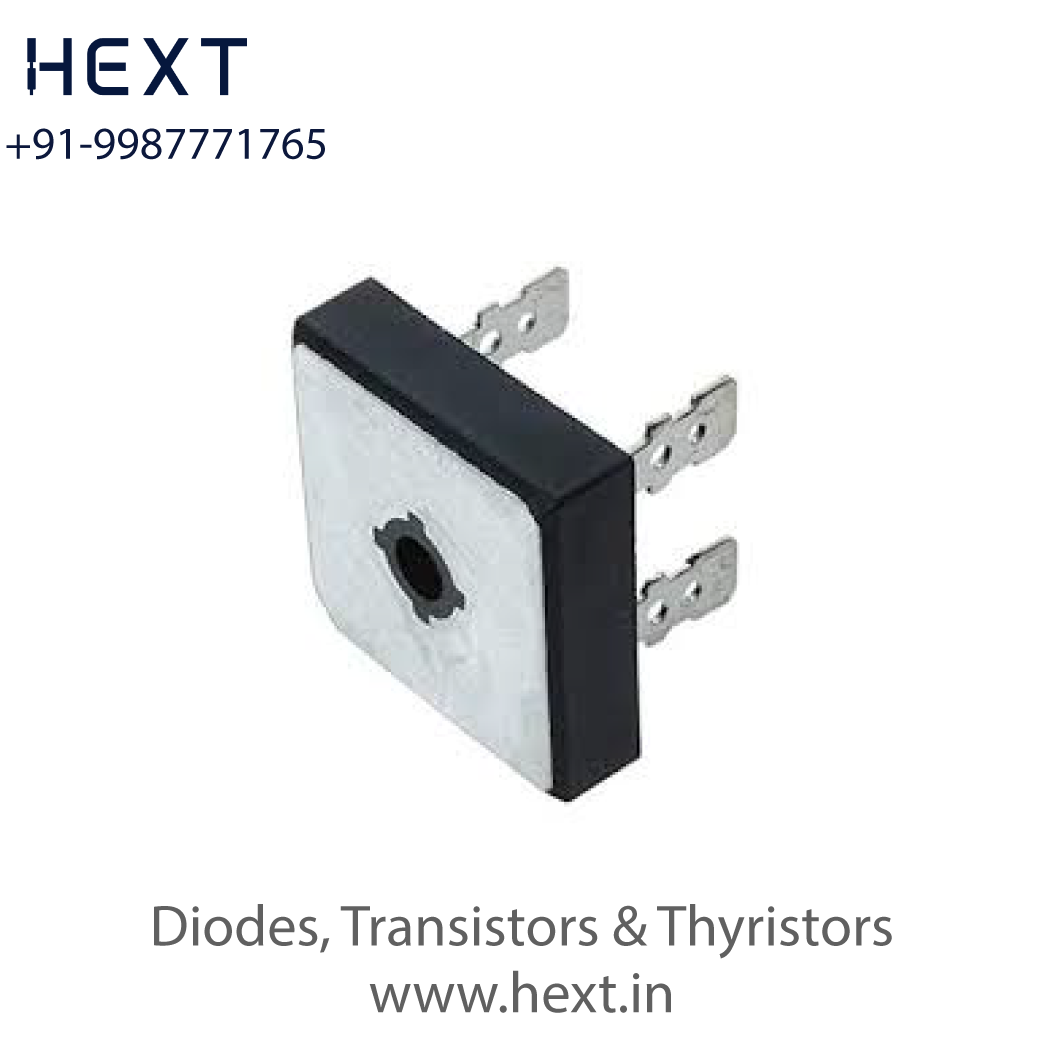

MP3504 – 400V 35A Single-Phase Bridge Rectifier | 35A 400V Low-Leakage Industrial Rectifier Bridge

The MP3504 handles 400V reverse blocking and 35A continuous DC output with a very low-loss conduction path. 400A surge immunity stabilizes DC buses during aggressive inrush, mains spikes, and burst overload events.

Key Specifications

• VRRM: 400V

• IF (DC Output): 35.0A

• TJ Max / Operating Temperature: 100°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 17.5µA

• Trr: 10µs

• Package: MP

Features

• 400V industrial voltage margin

• Loss-optimized heavy-load rectifier path

• Stable, ultra-low leakage DC conduction

• Thermal and surge robust design

Applications

• Industrial AC-DC SMPS front stage

• DC bus infrastructure rectifier

• Drive, charger, converter bridges

• Transformer secondary rectifier bridge modules
