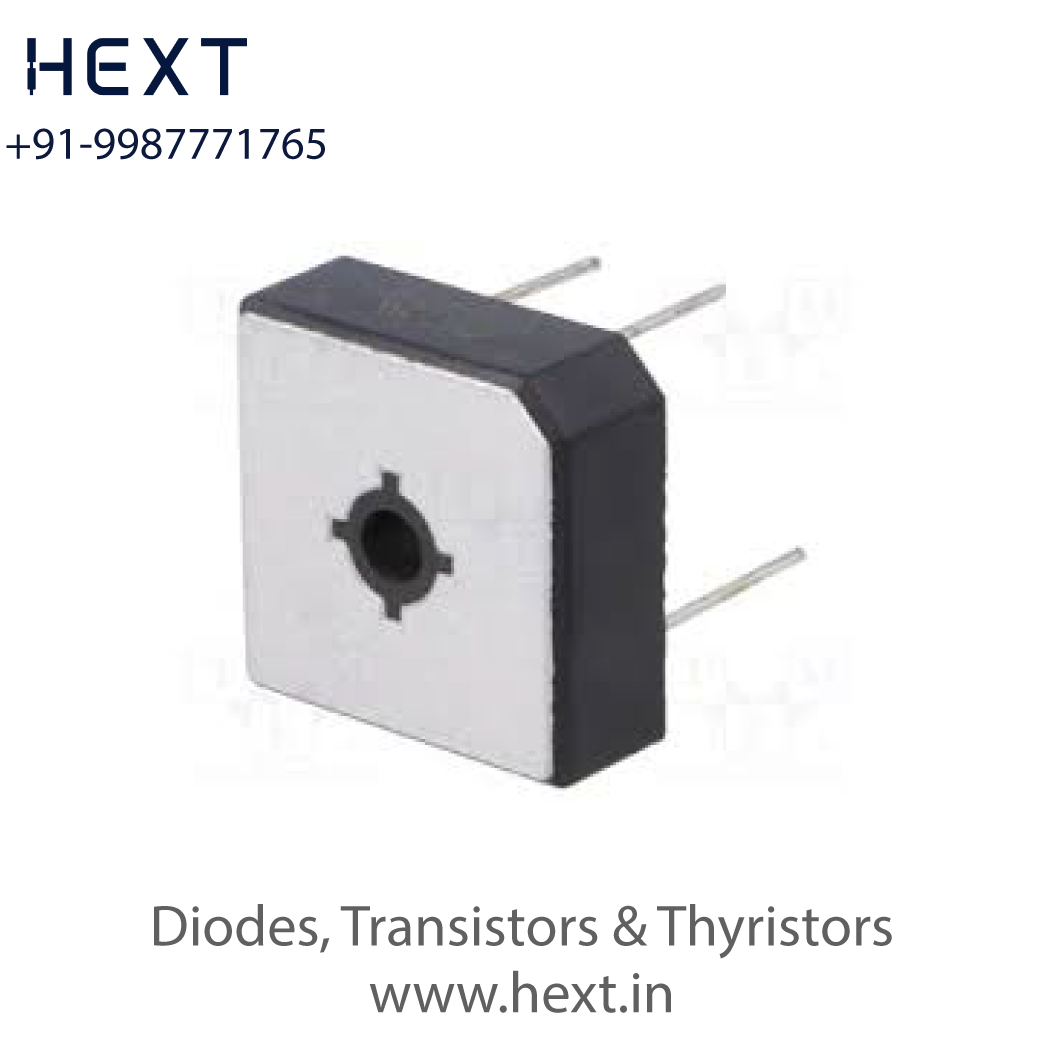

MP3501W – 100V 35A Single-Phase Bridge Rectifier | 35A 100V Low-Leakage Industrial AC-DC Rectifier Bridge

The MP3501W provides 100V reverse blocking headroom with 35A continuous DC output, optimized for low conduction loss in industrial AC-DC power bridge front stages. A 400A surge rating safeguards DC buses during strong inrush, mains transients, and burst overload peaks with a stable 17.5µA low-leakage path.

Key Specifications

• VRRM: 100V

• IF (DC Output): 35.0A

• TJ Max / Operating Temperature: 100°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 17.5µA

• Trr: 10µs

• Package: MPW

Features

• 100V reverse blocking margin

• 400A surge & inrush rugged path

• Low conduction + leakage losses

• Thermally reliable heavy-load design

Applications

• Industrial 35A PSU bridge front end

• DC bus infrastructure rectifier

• Drive, converter & charger bridges
