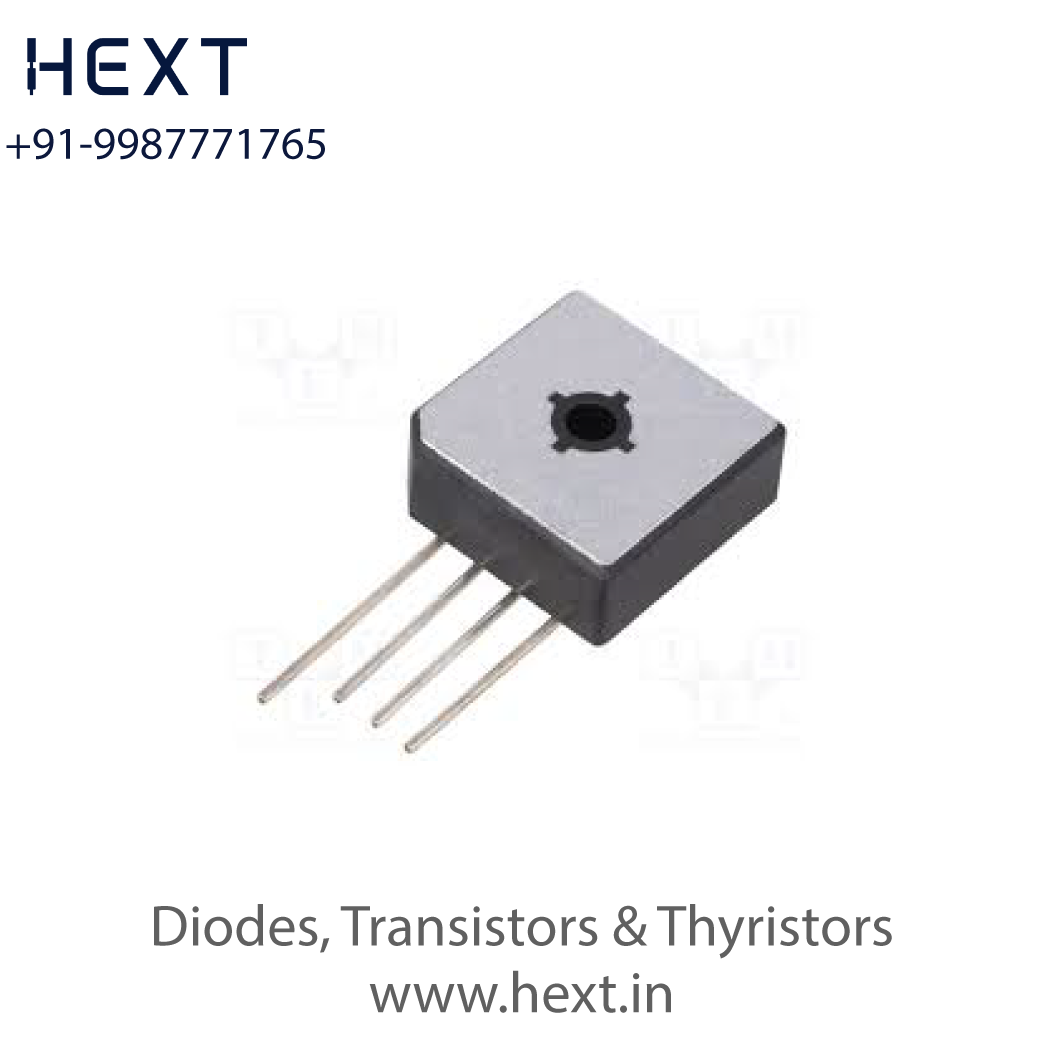

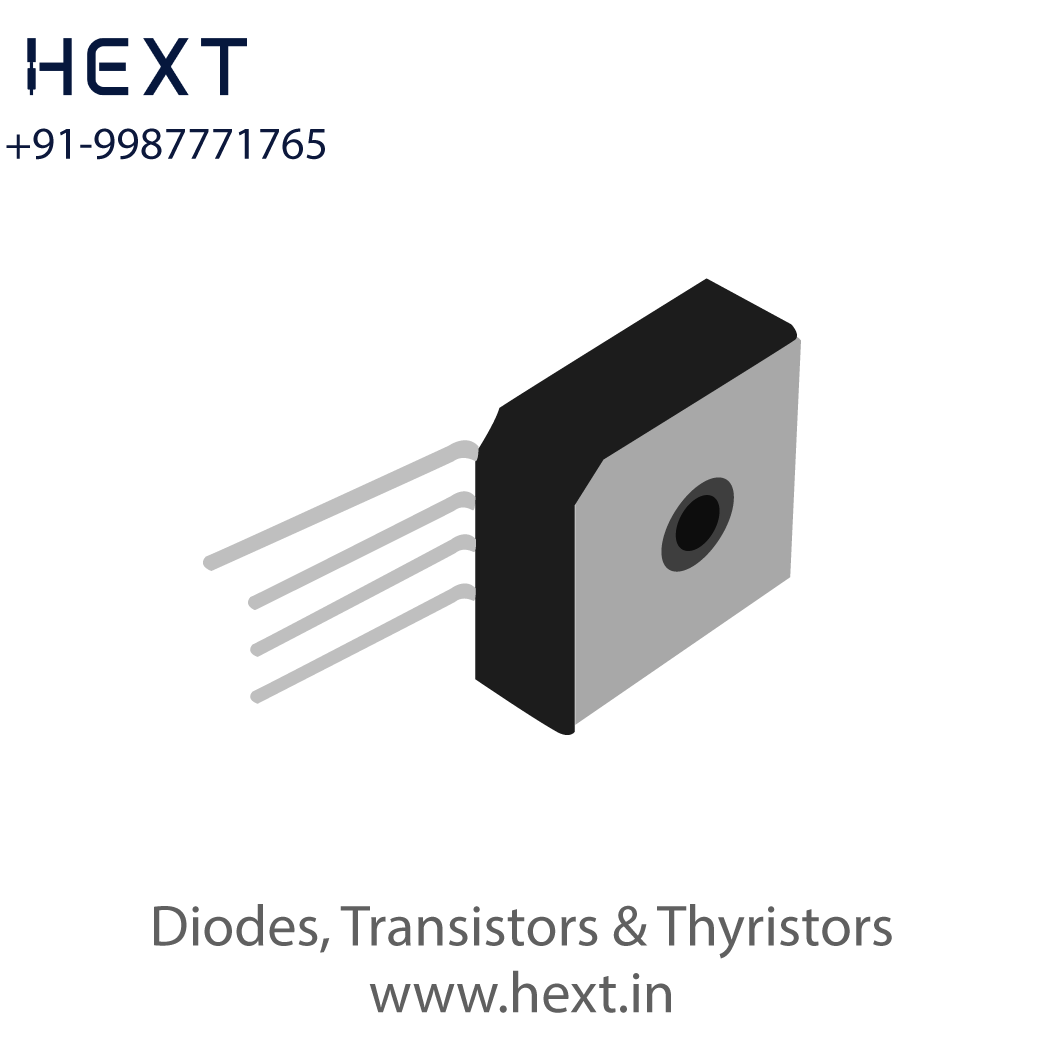

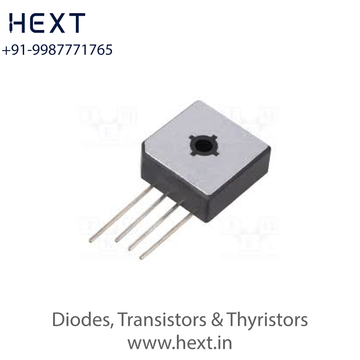

MP2502S – 200V 25A Bridge Rectifier in MPS Package | 200V 25A High-Current AC-DC Power Conversion Bridge

The MP2502S is optimized for 200V reverse voltage and 25A DC output in high-power AC-DC rectifier stages. A 300A surge-rated body with extremely low 12.5µA leakage ensures strong immunity to grid spikes and transformer inrush bursts. The MPS package provides balanced thermal performance, reduced power dissipation, and lower conduction stress for long-term durability in industrial rectifier modules.

Key Specifications

• VR: 200V

• IF: 25.0A

• TJ(Max): 100°C

• IFSM: 300A

• VF: 1.0V

• IR: 12.5µA

• Trr: 5.0µs

• Package: MPS

Features

• 200V high-voltage margin

• 25A stable DC rail output

• Surge-immune design

• Low forward voltage drop

Applications

• 200V 25A supply modules

• Inverter / AC-DC converters

• DC bus rectifier bridges

• Industrial power modules
