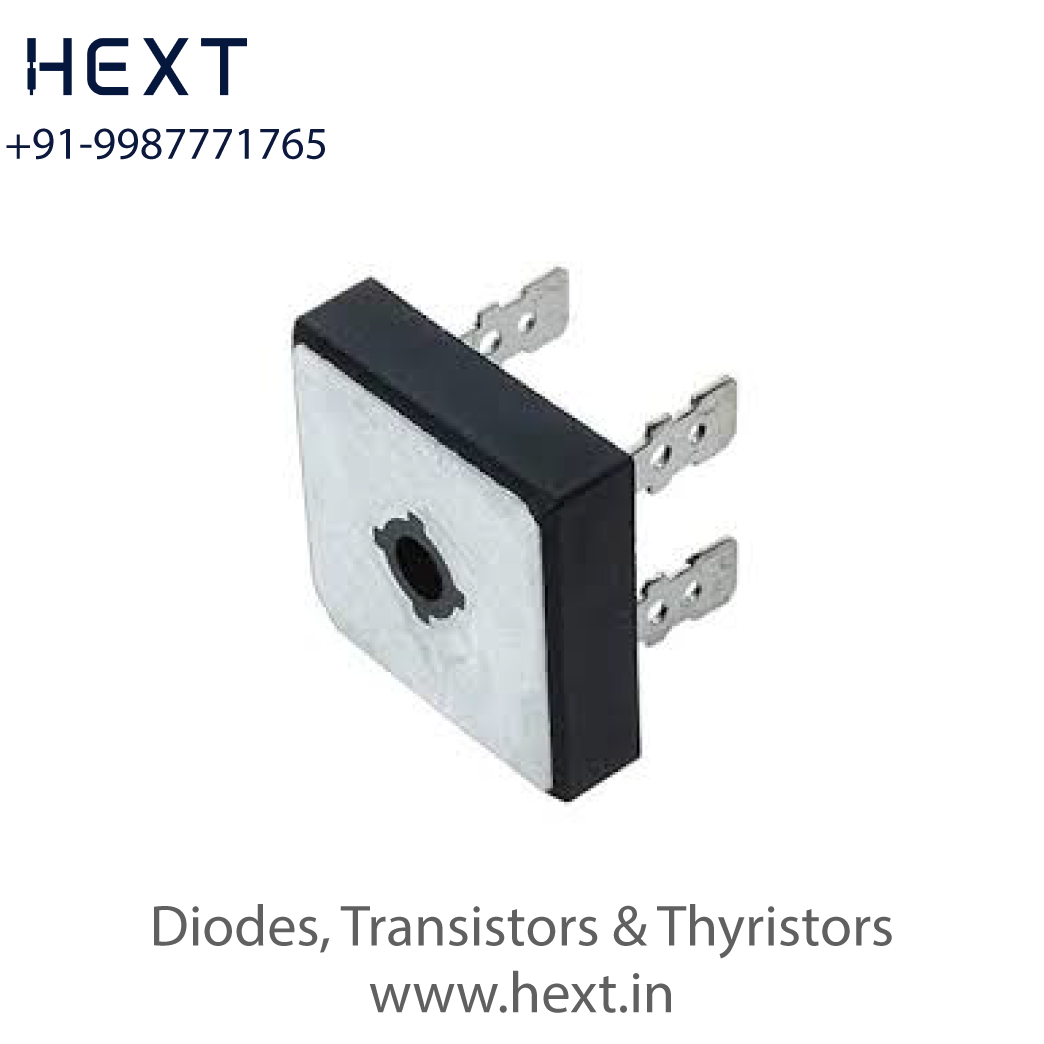

MP1504 400V 15A Single-Phase Bridge Rectifier in MP Package | 15A 400V Efficient Rectifier for SMPS & Converters HORNBY

The MP1504 delivers 400V reverse blocking and 15A DC current output. Low conduction loss and 300A surge robustness guarantee high efficiency and safety for early rectifier stages.

Key Specifications

• VR: 400V

• IF: 15.0A

• Max Temperature: 55°C

• Surge: 300A

• VF: 1.0V

• IR: 7.5µA

• Trr: 10µs

• Package: MP

Features

• 400V high-voltage rectification support

• 300A surge endurance

• Low power dissipation

• Stable leakage control

Applications

• SMPS front bridge rectification

• Converters, adapters, industrial PSU

• 230V400V AC-DC rectifiers
