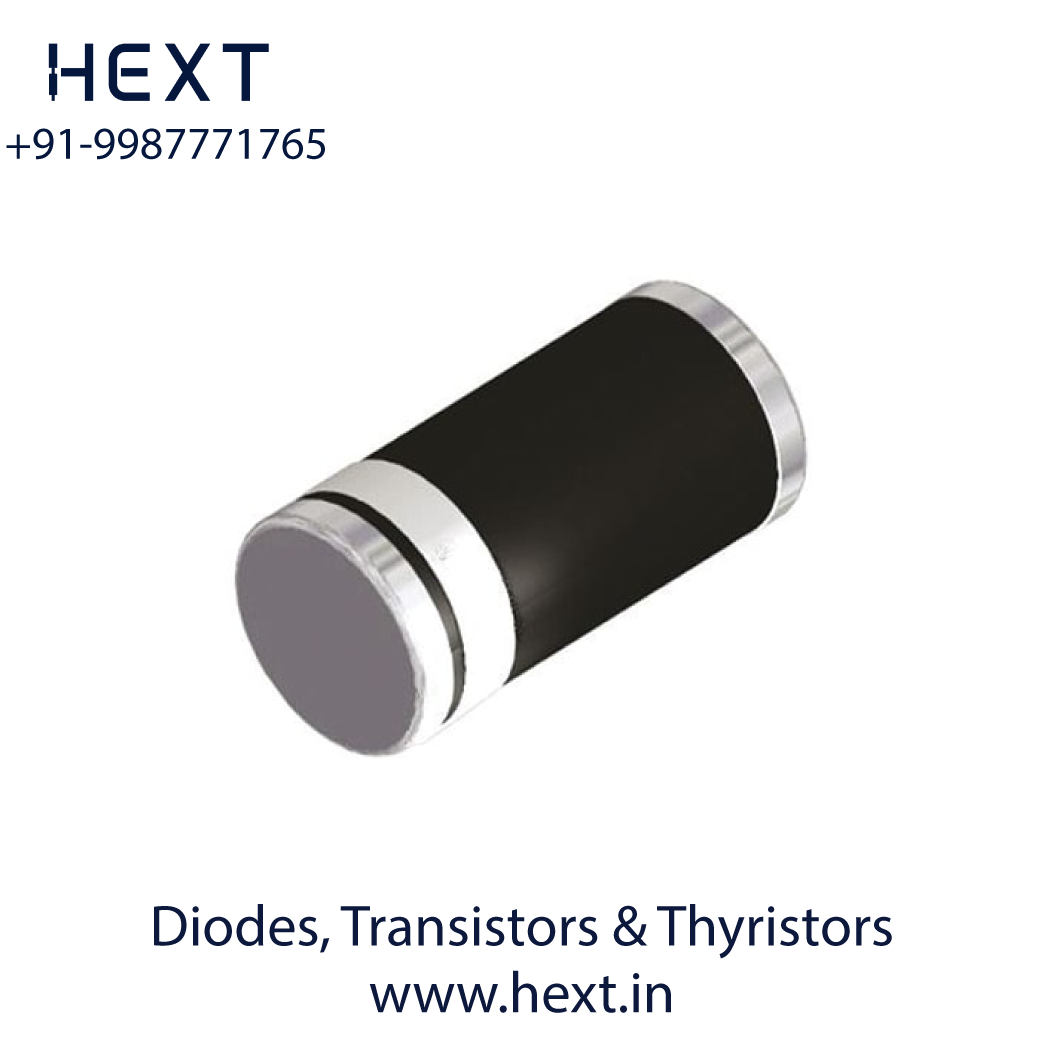

LL4001 Rectifier Diode 1A 50V MELF | Surface Mount General Purpose Diode | Low Forward Voltage Drop

The LL4001 Rectifier Diode is a 1A, 50V general-purpose diode in a compact MELF package, providing efficient AC to DC conversion and fast recovery performance. Ideal for surface-mount designs requiring low leakage and reliable operation.

Key Specifications:

• Forward Current: 1A

• Reverse Voltage: 50V

• Forward Voltage Drop: 1.1V

• Package: MELF

• Operating Temperature: -55°C to +150°C

Features:

• Low forward voltage for reduced power loss

• High surge capability

• Compact surface-mount design

Applications: Power supplies, adapters, chargers, and signal rectification circuits.
