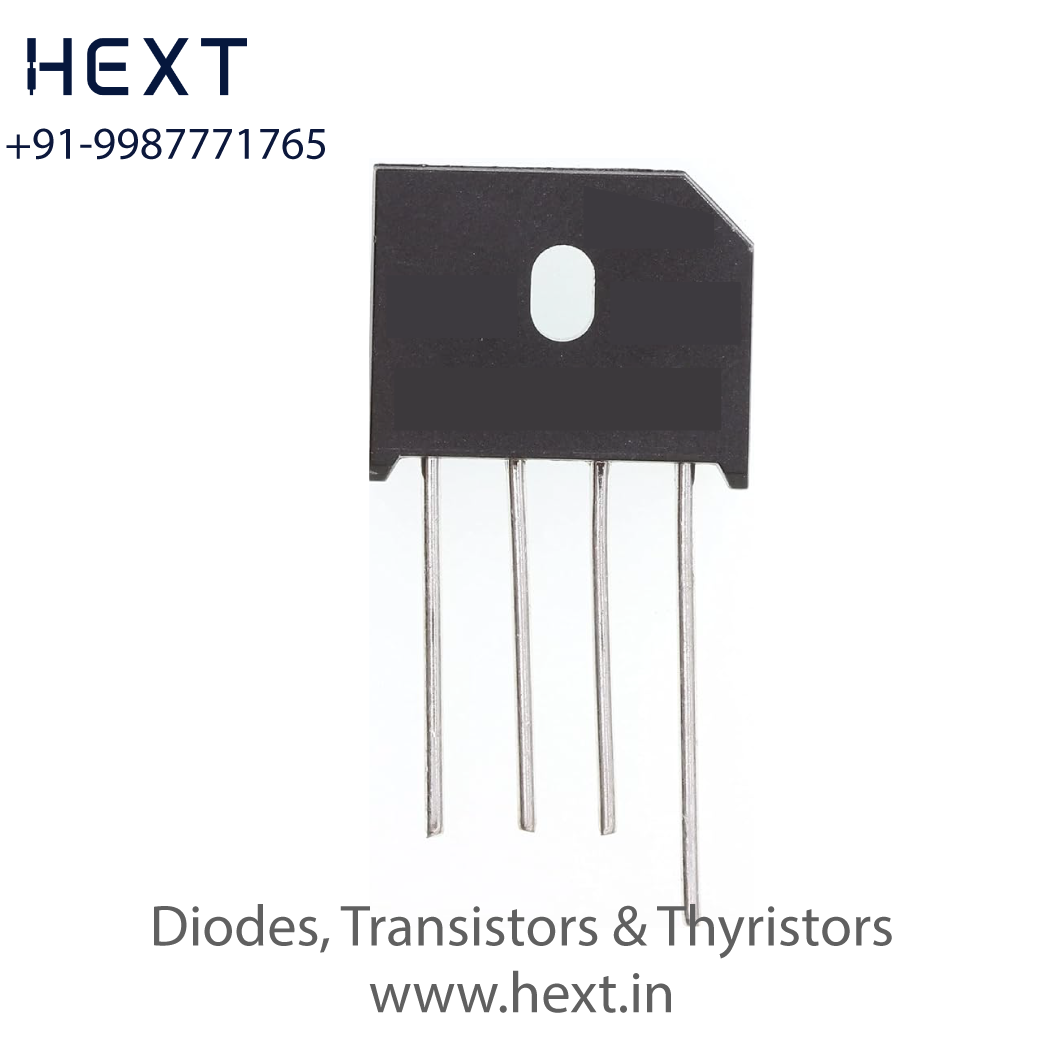

KBU3508 – 800V 35A Single-Phase Bridge Rectifier in KBU Package | 800V 35A Industrial High-Surge AC/DC Power Rectifier Input Bridge

The KBU3508 provides 800V reverse endurance with 35A DC bus output. Its 400A surge immunity ensures repeated inrush absorption and mains spike tolerance for 800V 35A power input bridges.

Key Specifications

• VRRM: 800V

• IF (DC): 35.0A

• TJ Max: 100°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 17.5µA

• Trr: 10µs

• Package: KBU

Features

• 800V reverse voltage margin

• High AC surge absorption

Applications

• 415VAC to 800VDC bus rectifier stage

• Industrial drives, chargers, and converters
