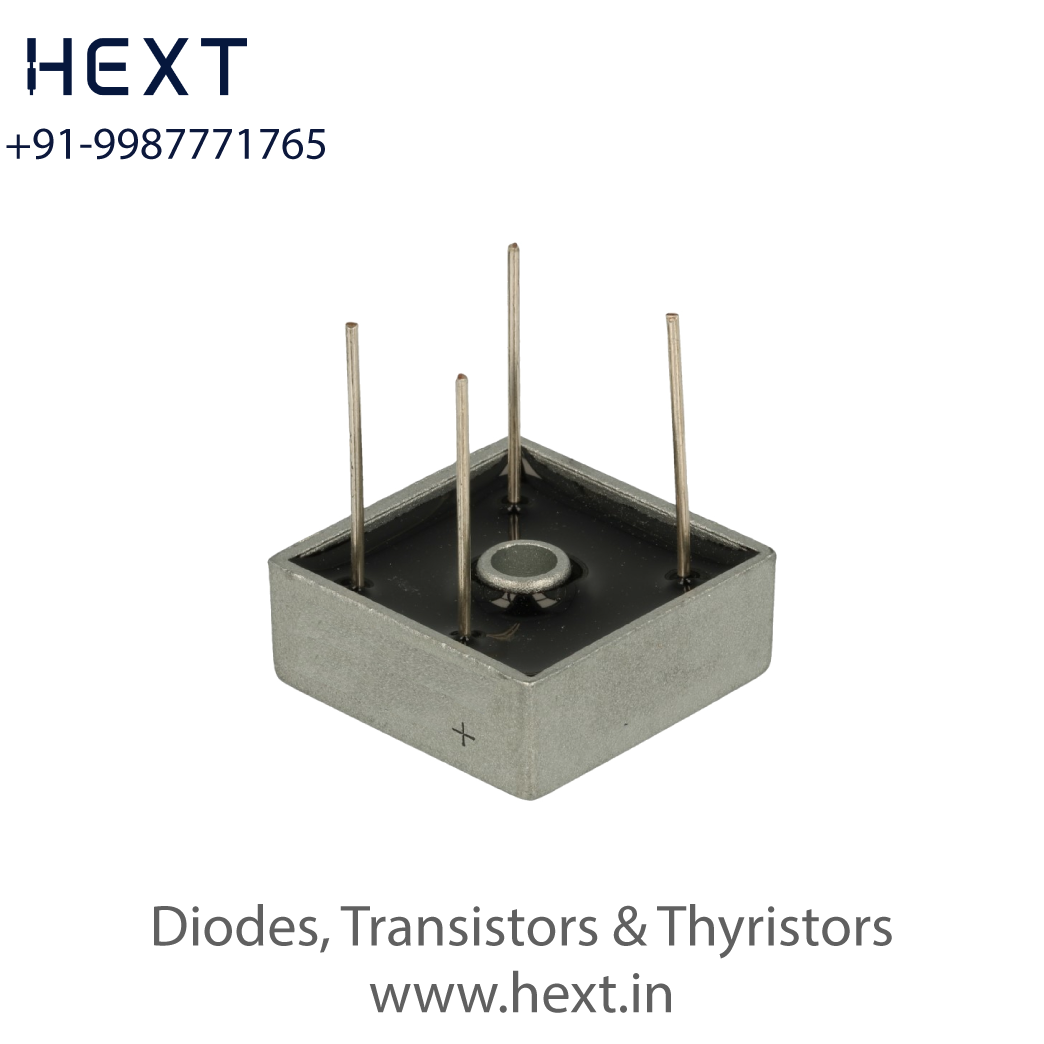

KBPC5010W 1000V 50A Single-Phase Bridge Rectifier in KBPCW Package | 1kV 50A Ultra-Rugged Rectifier HORNBY

The KBPC5010W handles 1000V reverse blocking with 50A continuous rectified DC output engineered for power-dense transformer and mains input bridges. A 400A surge rating protects DC rails from strong inrush, overload bursts, and grid spikes. Ultra-low 25µA leakage preserves long-term DC bus integrity in high-power AC-to-DC converter front stages.

Key Specifications

• VRRM: 1000V

• IF (DC): 50.0A

• Tcase Reference / Temp: 55°C

• TJ Max: 125°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: KBPCW

Features

• 1kV reverse voltage safety margin

• 400A surge tolerance for aggressive inrush

• Low conduction & leakage optimized path

• Thermally rugged heavy-load bridge module

Applications

• Industrial AC-DC PSU front bridge

• High-power DC bus infrastructure

• Motor drives, converters, chargers

• 1kV 50A transformer input bridge modules
