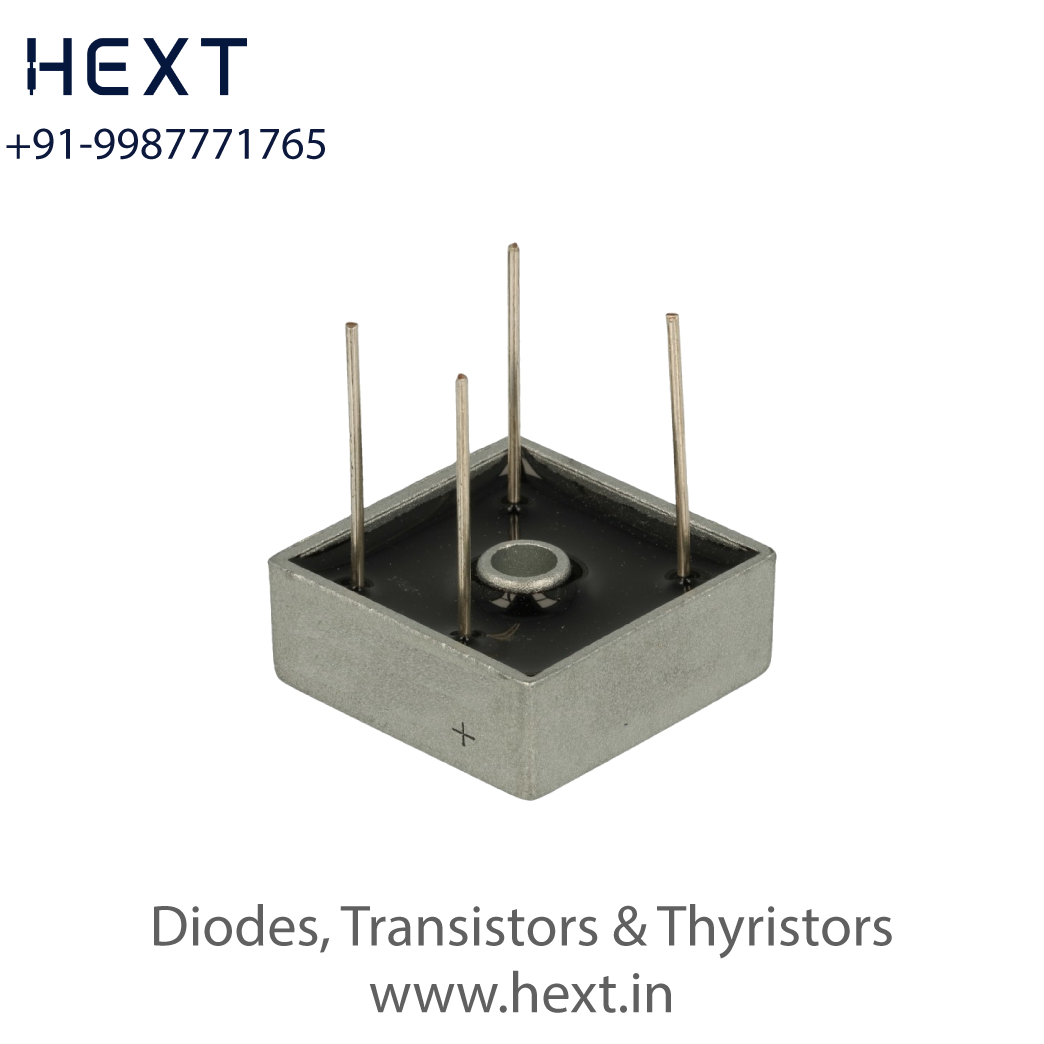

KBPC5008W 800V 50A Single-Phase Bridge Rectifier in KBPCW Package | 800V 50A High-Power Rectifier HORNBY

The KBPC5008W supports 800V reverse blocking delivering 50A continuous rectified DC output for industrial power bridge modules. 400A surge endurance protects against harsh inrush, transient grid spikes, and overload bursts. 25µA ultra-low leakage preserves DC bus reliability and rail stability.

Key Specifications

• VRRM: 800V

• IF (DC): 50.0A

• Tcase Reference / Temp: 55°C

• TJ Max: 125°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: KBPCW

Features

• 800V industrial voltage margin

• Strong surge & inrush resilience

• Optimized low-loss conduction bridge

Applications

• Industrial AC-DC PSU front stage

• 50A DC bus infrastructure

• Converters, drives, chargers
