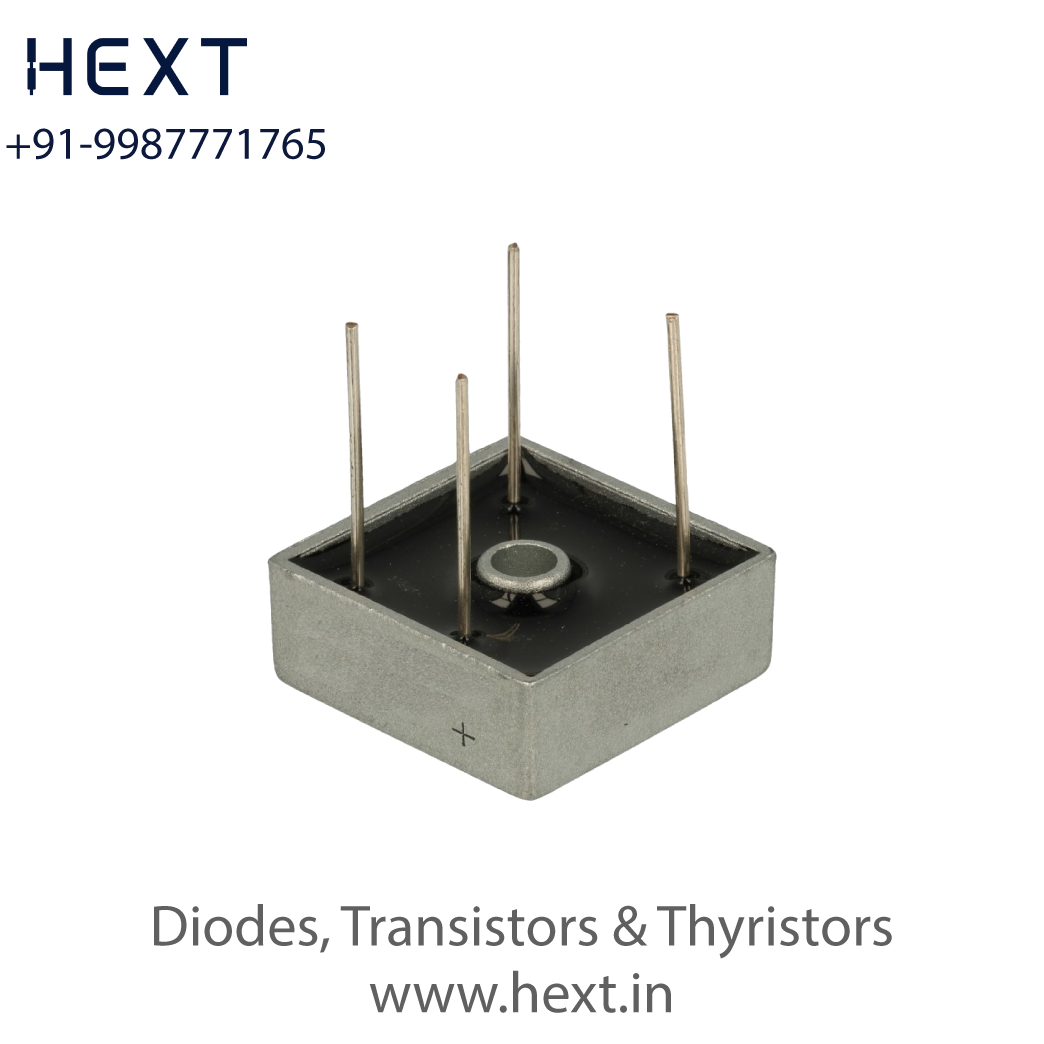

KBPC5006W 600V 50A Single-Phase Bridge Rectifier in KBPCW Package | 600V 50A Industrial Rectifier HORNBY

The KBPC5006W enables 600V reverse blocking with 50A continuous rectified DC output designed for industrial mains input bridges. A 400A surge rating shields against transformer inrush, grid spikes, and overload events. 25µA ultra-low leakage keeps DC rails stable for long-term operation.

Key Specifications

• VRRM: 600V

• IF (DC): 50.0A

• Tcase Reference / Temp: 55°C

• TJ Max: 125°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: KBPCW

Features

• 600V blocking capacity

• Low conduction and leakage optimized

• Heavy-load thermal rugged bridge design

Applications

• Industrial PSU AC-DC bridge

• High-power converter front stage

• Drive and charger rectifier blocks
