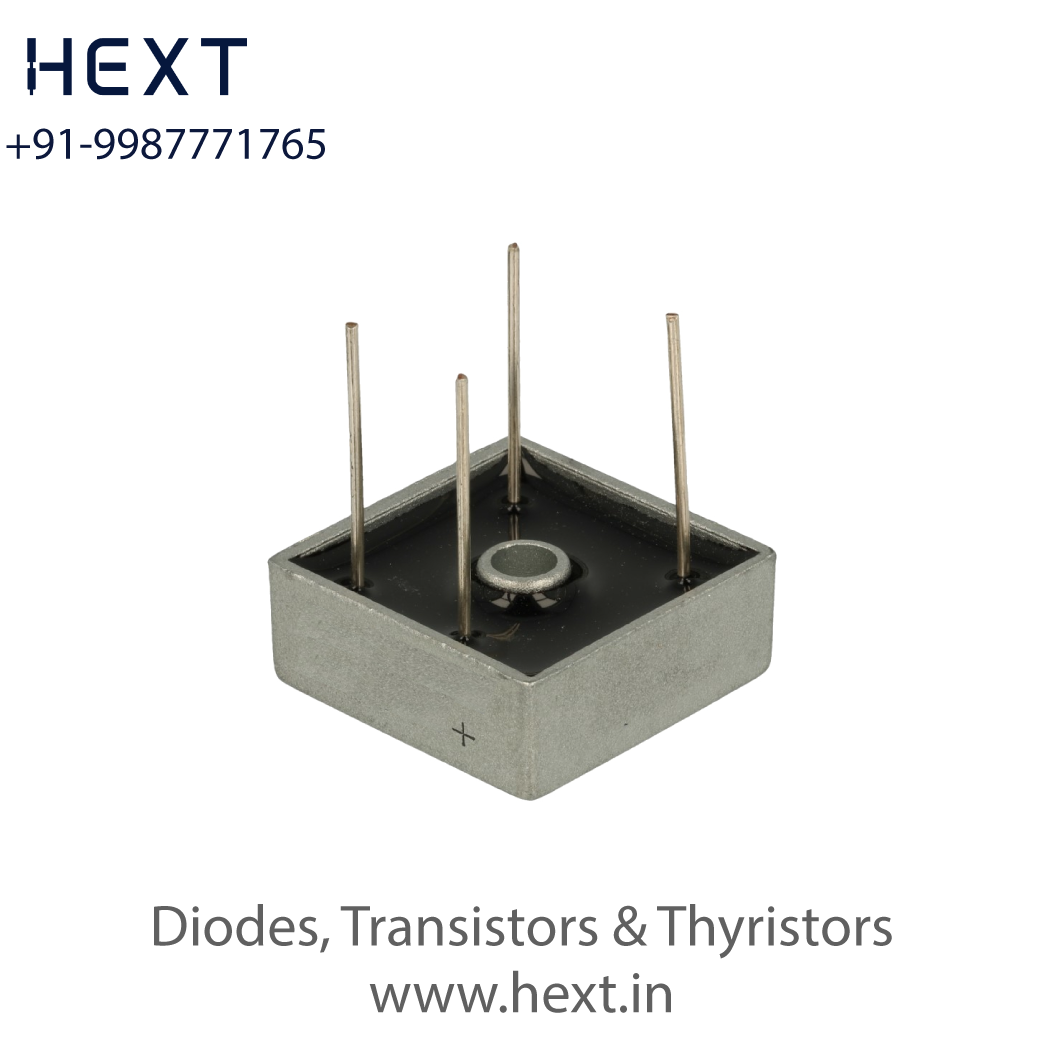

KBPC5002W 200V 50A Single-Phase Bridge Rectifier in KBPCW Package | 200V 50A Heavy-Duty Rectifier HORNBY

The KBPC5002W handles 200V reverse blocking with 50A continuous DC output for industrial high-current input bridges. 400A surge resilience protects DC rails against transformer inrush, grid spikes, and overload bursts. Ultra-low 25µA reverse leakage maintains DC bus health and long-term stability.

Key Specifications

• VRRM: 200V

• IF (DC): 50.0A

• Tcase Reference / Temp: 55°C

• TJ Max: 125°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 25µA

• Trr: 10µs

• Package: KBPCW

Features

• 200V blocking headroom

• Strong surge tolerance

• Very low leakage loss path

• Energy-dense module rectification optimized

Applications

• Industrial single-phase mains rectification

• 50A DC bus front stages

• Power modules for converters and chargers
