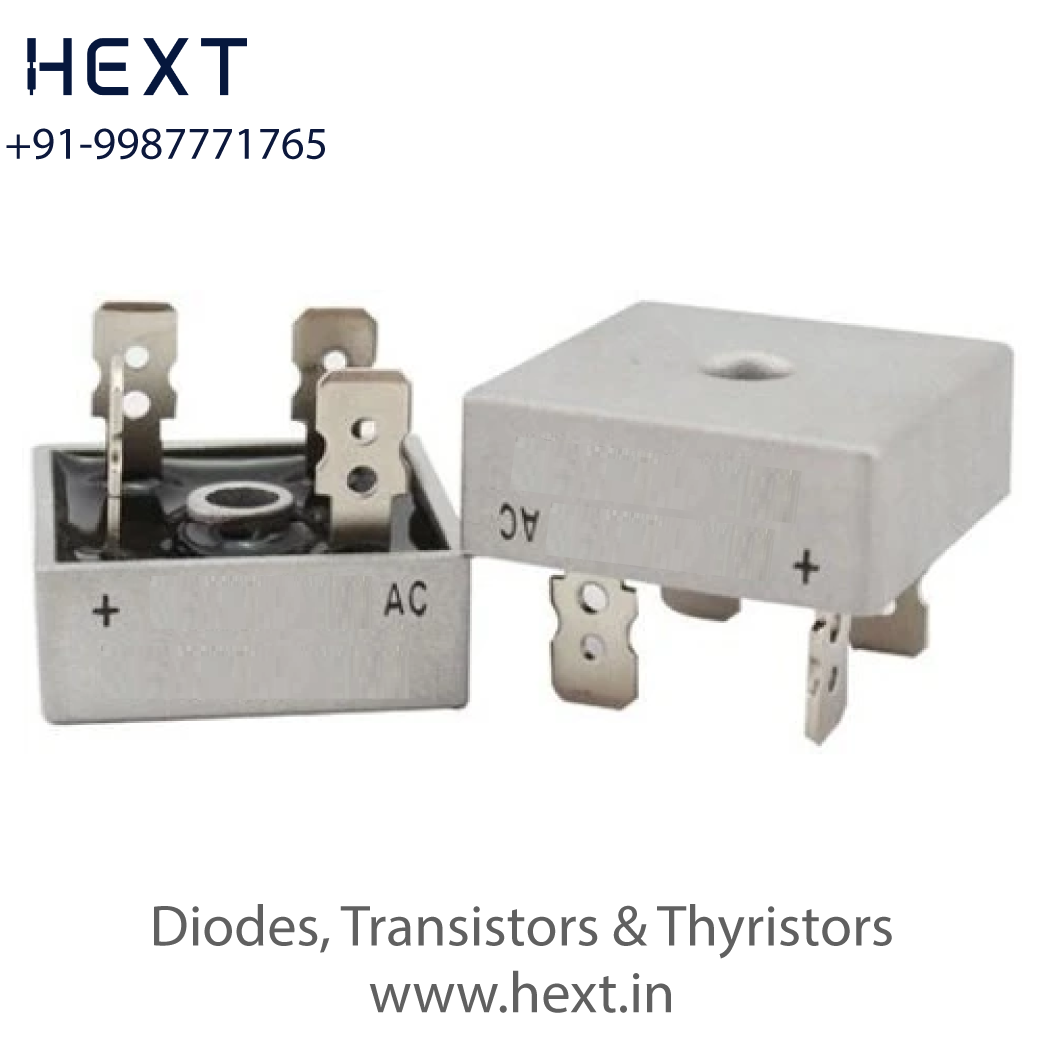

KBPC3504 – 400V 35A Bridge Rectifier in KBPC Package | 35A 400V High-Voltage Rectifier Bridge with 400A Surge Protection

The KBPC3504 supports 400V reverse headroom with 35A continuous DC output for reliable high-voltage high-current rectification. A 400A surge rating protects rails from aggressive inrush, while 17.5µA low reverse leakage improves DC bus longevity and stability in industrial AC-to-DC conversion bridges.

Key Specifications

• VRRM: 400V

• IF (DC): 35.0A

• TJ Max: 100°C

• IFSM (Surge): 400A

• VF: 1.0V

• IR: 17.5µA

• Trr: 10µs

• Package: KBPC

Features

• 400V reverse voltage support

• 35A continuous DC forward capacity

• High surge endurance for input protection

• Very low DC reverse conduction and leakage loss

Applications

• Industrial PSU bridge front stage

• Power converters, drives, chargers

• DC bus and transformer rectification

• 35A bridge modules for high voltage
