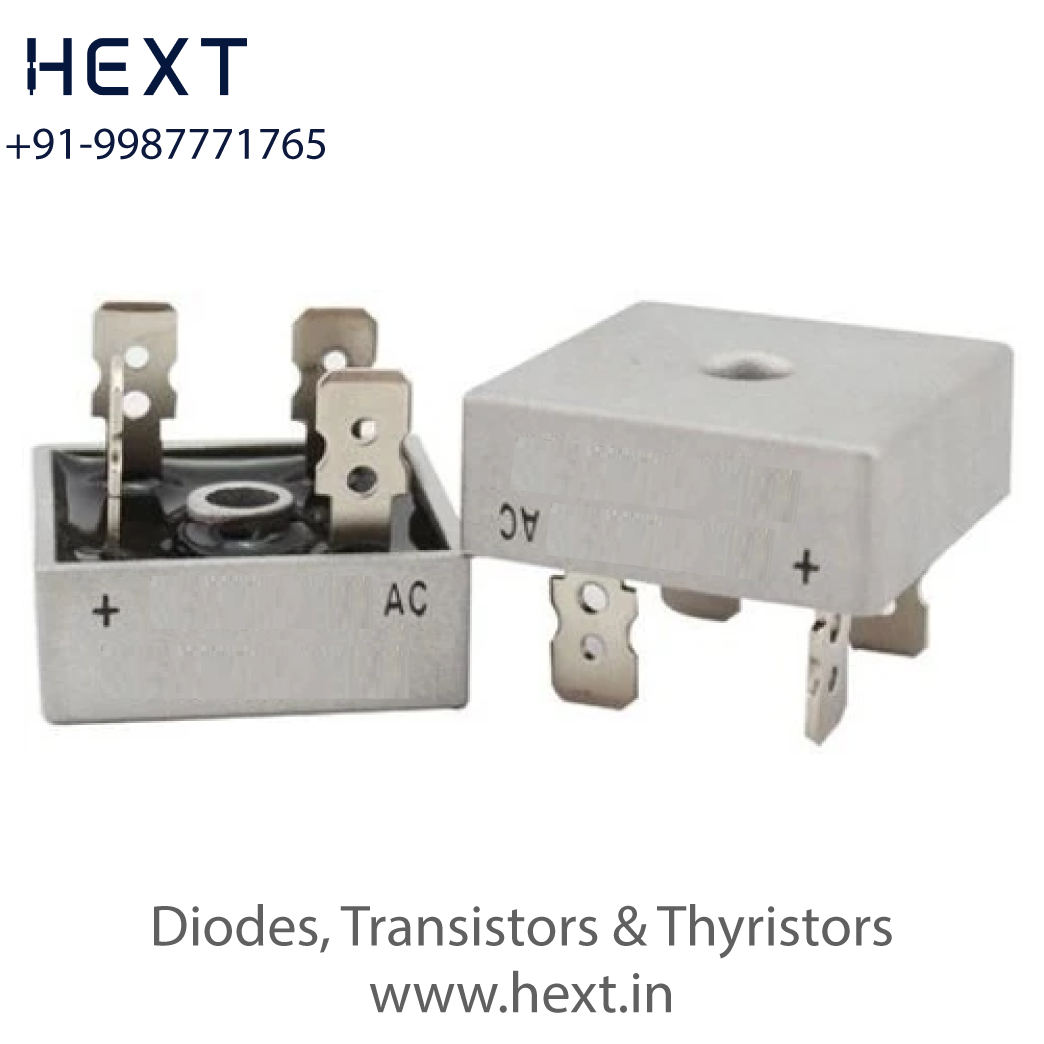

KBPC1506 600V 15.0A Bridge Rectifier in KBPC Package | 15A High-Current 600V Rectifier HORNBY

The KBPC1506 provides 600V reverse voltage support with 15A DC output. Strong 300A surge handling and extremely low leakage deliver secure and efficient rectification for high-power AC-DC industrial and SMPS front bridges.

Key Specifications

VR: 600V
IF: 15.0A
Temperature: 55°C
Surge: 300A
VF: 1.0V
IR: 7.5µA
Trr: 10µs
Package: KBPC

Features

• 600V blocking voltage rating

• Very low reverse leakage current

• 300A surge overload endurance

Applications

• 600V AC-DC industrial power modules

• SMPS/UPS front-end rectification

• 15A DC rail protection bridges
