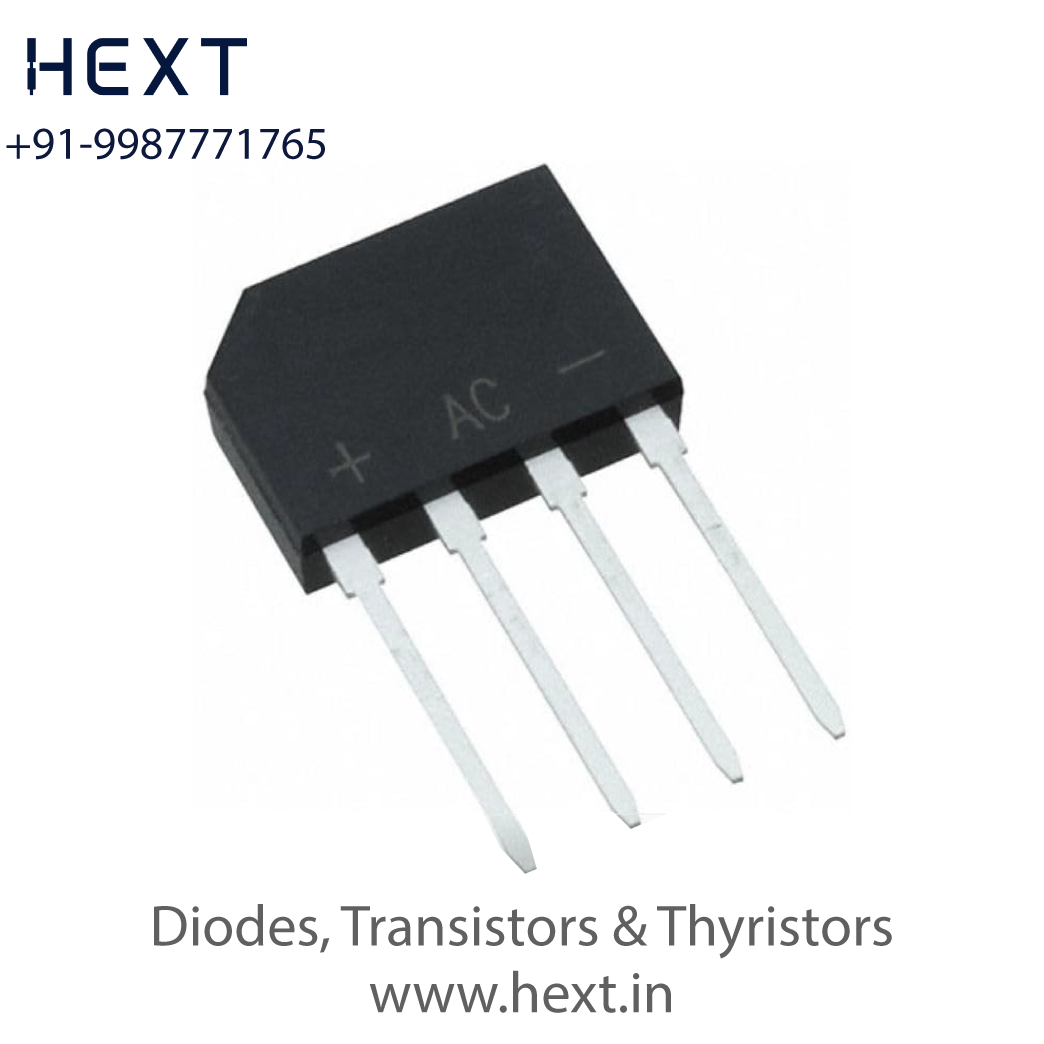

KBP01 100V 1.5A Bridge Rectifier in KBP Package | High-Reliability 100V Rectifier HORNBY

The KBP01 is a 100V, 1.5A high-reliability bridge rectifier engineered for efficient rectification in compact power systems. Offering low leakage, stable operation, and robust surge performance, it is ideal for adapters, chargers, and small power supplies.

Key Specifications

• VR: 100V

• IF: 1.5A

• Temp: 50°C

• Surge Current: 50A

• VF: 1.1V

• IR: 1.5µA

• Trr: 10µs

• Package: KBP

Features

• High-reliability rectification

• Low forward voltage drop

• Strong surge capability

• Compact KBP design

Applications

• AC/DC power modules

• Chargers and adapters

• Control circuits

• Household electronics
