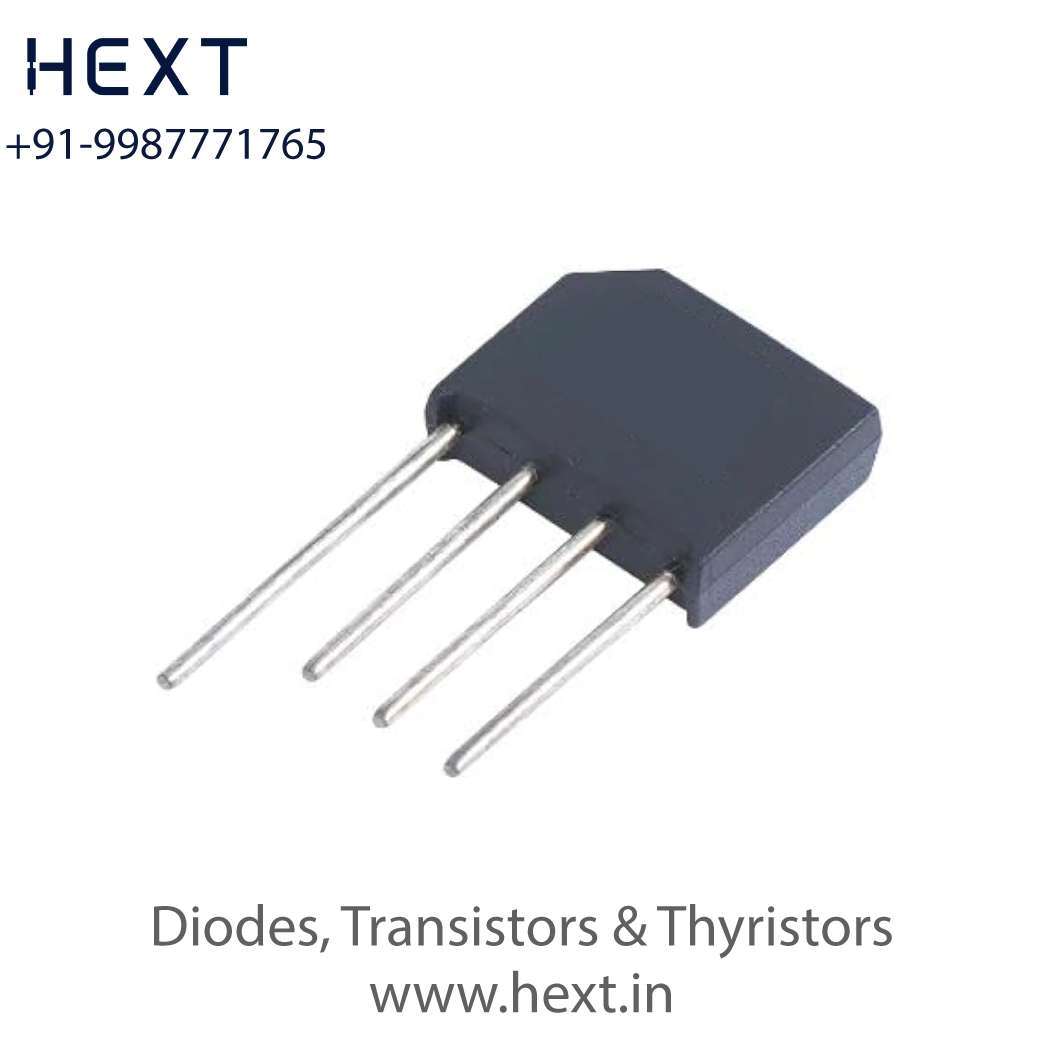

KBL602 – 200V 6.0A Bridge Rectifier in KBL Package | Mid-Voltage Rectifier

The KBL602 is a 200V, 6.0A bridge rectifier providing stable operation for mid-range AC-DC conversion. Its low leakage and robust surge performance make it ideal for power modules and control systems.

Key Specifications
VR: 200V
IF: 6.0A
Temp: 50°C
Surge: 200A
VF: 1.1V
IR: 6.0µA
Trr: 10µs
Package: KBL

Features

• 200V reverse voltage capability

• 6A continuous current

• Low leakage and strong surge handling

Applications

• Motor drives

• Control circuits

• General mid-voltage rectification
