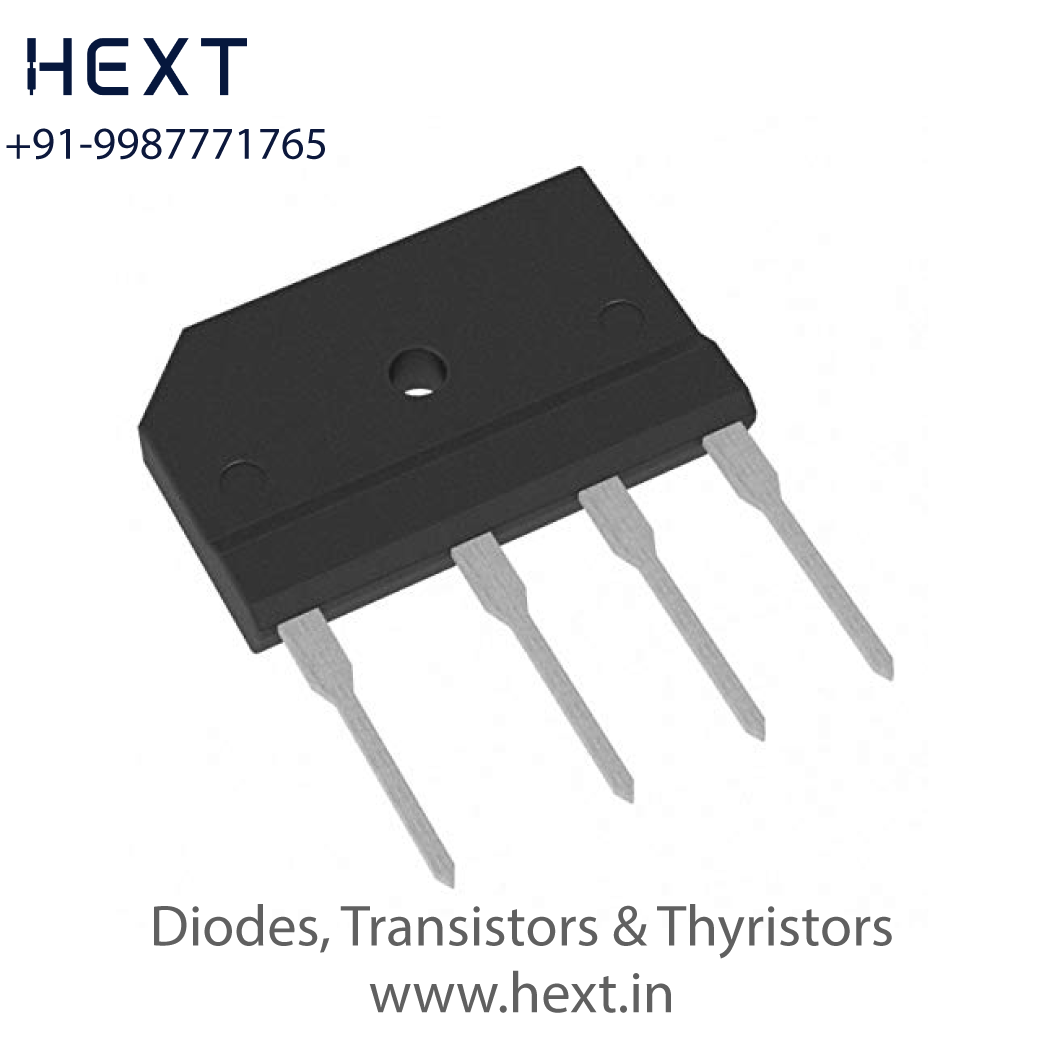

KBJ2502 – 200V 25A Bridge Rectifier in KBJ Package | 200V 25A High-Current Rectifier Bridge

The KBJ2502 is a 200V 25A rectifier bridge optimized for high-power AC-DC conversion. Equipped with 350A surge resilience and 12.5µA low reverse leakage, it ensures DC bus reliability under transient and overload bursts. The KBJ thermally robust body enhances conduction efficiency and long-term operational stability for high-current conversion modules.

Key Specifications

• VR: 200V

• IF: 25.0A

• Temperature: 100°C

• Surge: 350A

• VF: 1.0V

• IR: 12.5µA

• Trr: 10µs

• Package: KBJ

Features

• 200V mains bridge capability

• Low conduction voltage loss

• 25A continuous DC load reliability

• Strong surge current immunity

Applications

• 200V 25A AC-DC rectifier modules

• Inverter and converter bridges

• PSU front-end high-current stage

• Industrial mains input bridge rectification
