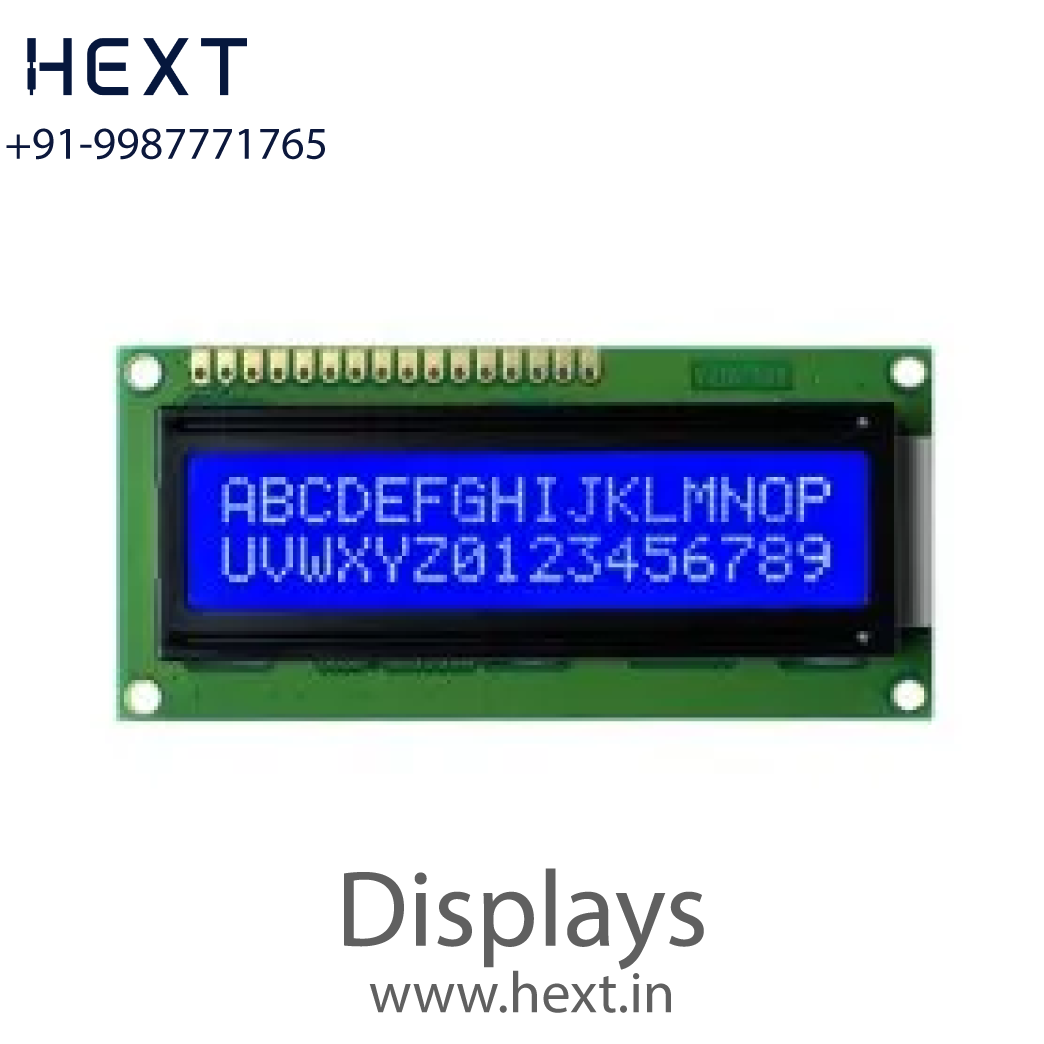

The JHD659-162 B/W by JHD Displays is a compact 16×2 character LCD module designed for space-constrained embedded and industrial applications requiring high-contrast display output. Featuring an STN Blue Negative LCD with white LED backlight, it delivers sharp and readable characters even in low-light environments.
Powered by an AIP31066L or equivalent controller, this module supports stable 1/16 duty operation, ensuring reliable character display performance across various microcontroller-based systems. The compact character size of 2.95 × 4.35 mm enables efficient information density while maintaining readability.
With a compact outline dimension of 80.0 × 36.0 × 14.5 mm and a viewing area of 64.5 × 14.5 mm, the JHD659-162 B/W is ideal for applications where PCB space is limited but display clarity is still critical. Its robust construction ensures long-term stability in industrial environments.
This module is widely used in embedded devices, portable instruments, control systems, and compact HMI interfaces.
Key Features:
- 16×2 character LCD module
- STN Blue Negative display
- White LED backlight
- AIP31066L or equivalent controller
- Compact design
- 1/16 duty operation
- High contrast output
- Small character format
- Low power consumption
- Industrial reliability
Applications:
- Embedded systems
- Portable devices
- Industrial controllers
- Compact instrumentation
- HMI modules
- Measurement equipment
- Automation devices
