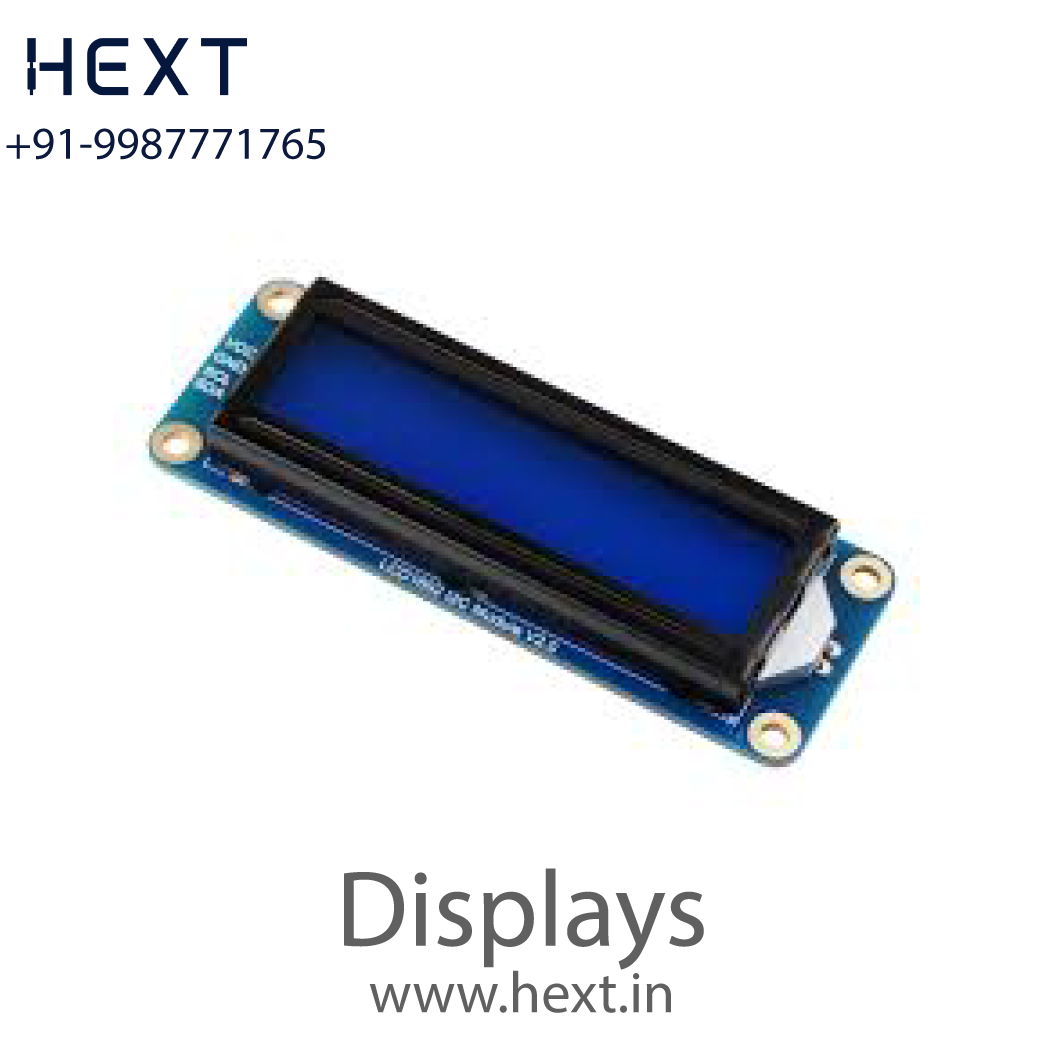

JHD162G B/W 16×2 LCD Display Module Blue Negative White LED | JHD DISPLAYS
JHD
The JHD162G B/W by JHD Displays is a high-contrast 16×2 character LCD display module designed for industrial, instrumentation, and embedded system applications requiring clear and stable alphanumeric output. Featuring an STN Blue Negative LCD with white LED backlight, this display ensures excellent readability even in low-light environments and delivers consistent visual performance in demanding operating conditions.
Built with a standard AIP31066L or equivalent controller, the JHD162G B/W supports reliable 1/16 duty operation, ensuring stable character rendering and smooth communication with microcontroller-based systems. Its large character size of 4.84 × 9.66 mm enhances readability, while the wide viewing area of 106.0 × 24.0 mm provides a clear and structured display interface.
With a robust outline dimension of 122.0 × 44.0 × 14.0 mm, this LCD module is suitable for integration into industrial panels and control equipment where durability and readability are critical. Its strong construction and stable electrical performance make it ideal for long-term embedded use in harsh environments.
This module is widely used in industrial automation, measurement instruments, control systems, embedded devices, and human-machine interface applications where reliable text display is essential.
Key Features:
- 16×2 character LCD module
- STN Blue Negative display
- White LED backlight
- AIP31066L or equivalent controller
- 1/16 duty operation
- High contrast readability
- Large character size (4.84 × 9.66 mm)
- Industrial-grade stable performance
- Wide viewing area
- Robust mechanical design
Applications:
- Industrial control systems
- Measurement and testing instruments
- Embedded display modules
- Automation equipment
- HMI interfaces
- Energy monitoring systems
- Communication devices
