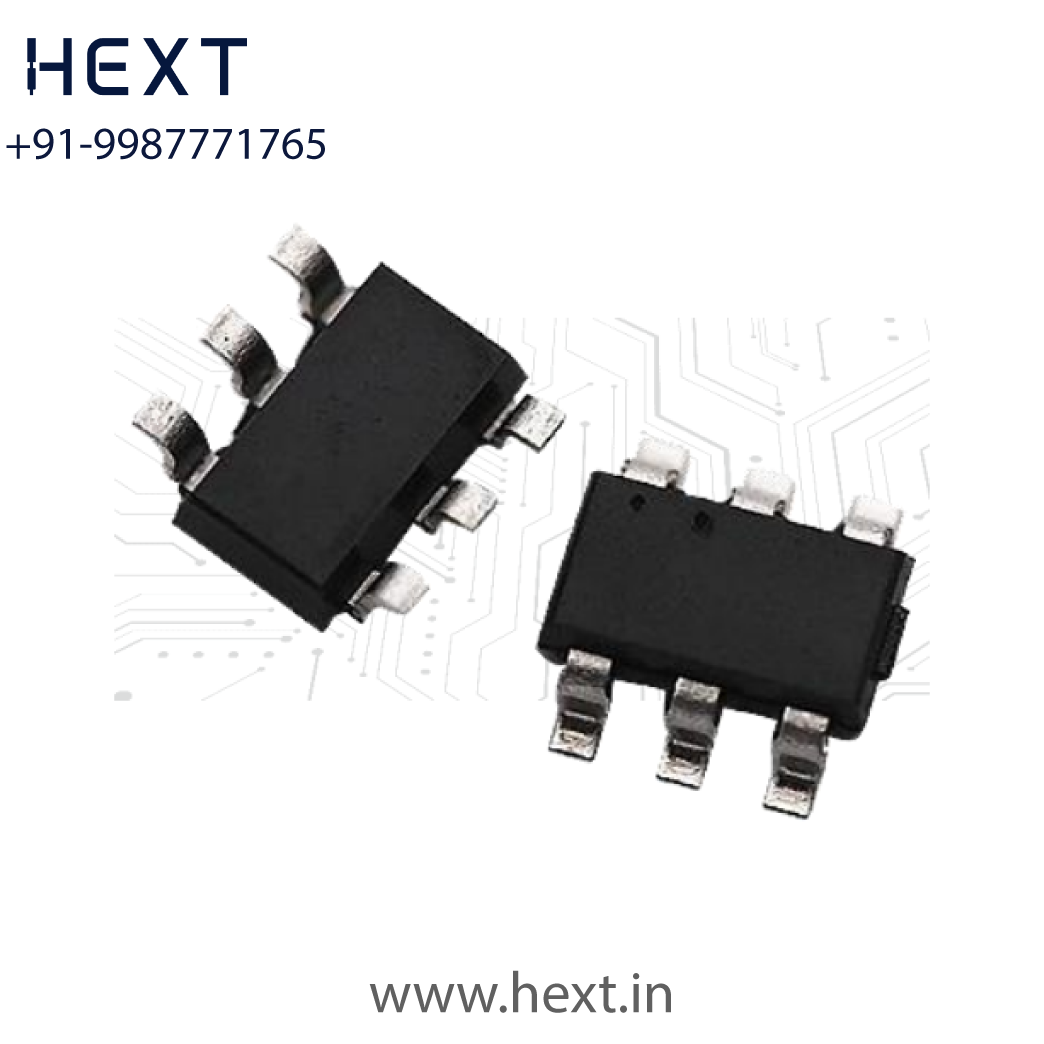

HX3202 SOT23/DFN2×2-6L Buck Converter | 16V Input 2A High Efficiency Step-Down Regulator | HOTCHIP

HX3202 from HOTCHIP is a high-efficiency DC-DC buck converter designed for compact power management systems, featuring 4.5V–16V input support, adjustable output voltage, and up to 2A output current capability for portable and embedded electronic applications.

Key Features
High-efficiency step-down DC-DC converter
Up to 93% conversion efficiency
4.5V to 16V input voltage range
Adjustable 1.2V to 5.5V output voltage
Supports up to 2A output current
520kHz switching frequency
Compact SOT23 and DFN2×2-6L package options
Stable performance for compact power rails
Optimized for portable electronics and embedded systems
Applications
DSP power supply systems
Portable electronics
Set-top boxes
Networking equipment
Embedded power systems
Consumer electronics
