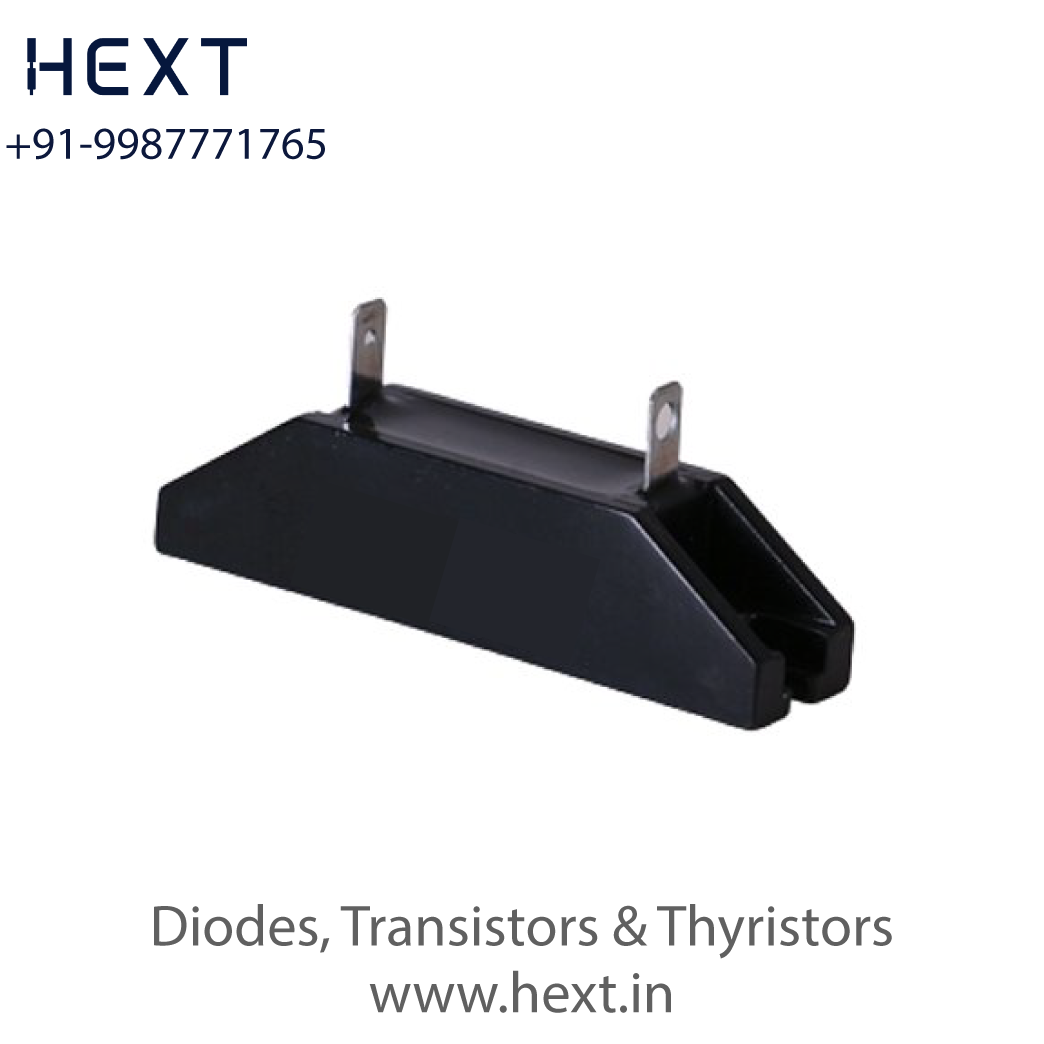

HVP14 – 14000V 0.75A High Voltage Silicon Rectifier SEP

The HVP14 offers high reliability at 14kV reverse voltage with reduced leakage and strong insulation strength. It is suitable for industrial HV stages, diagnostic equipment, ozone generators, and precision multiplier circuits.

Key Specifications

• VRRM: 14000V

• IF(AV): 0.75A

• Trr: 50ns

• IR: 14µA

• VF: 0.75V

• IFSM: 5.0A

• Package: HVP

Applications

• Ozone generators

• High-voltage testers

• Pulse power systems

• HV power supplies

• Electrostatic equipment
