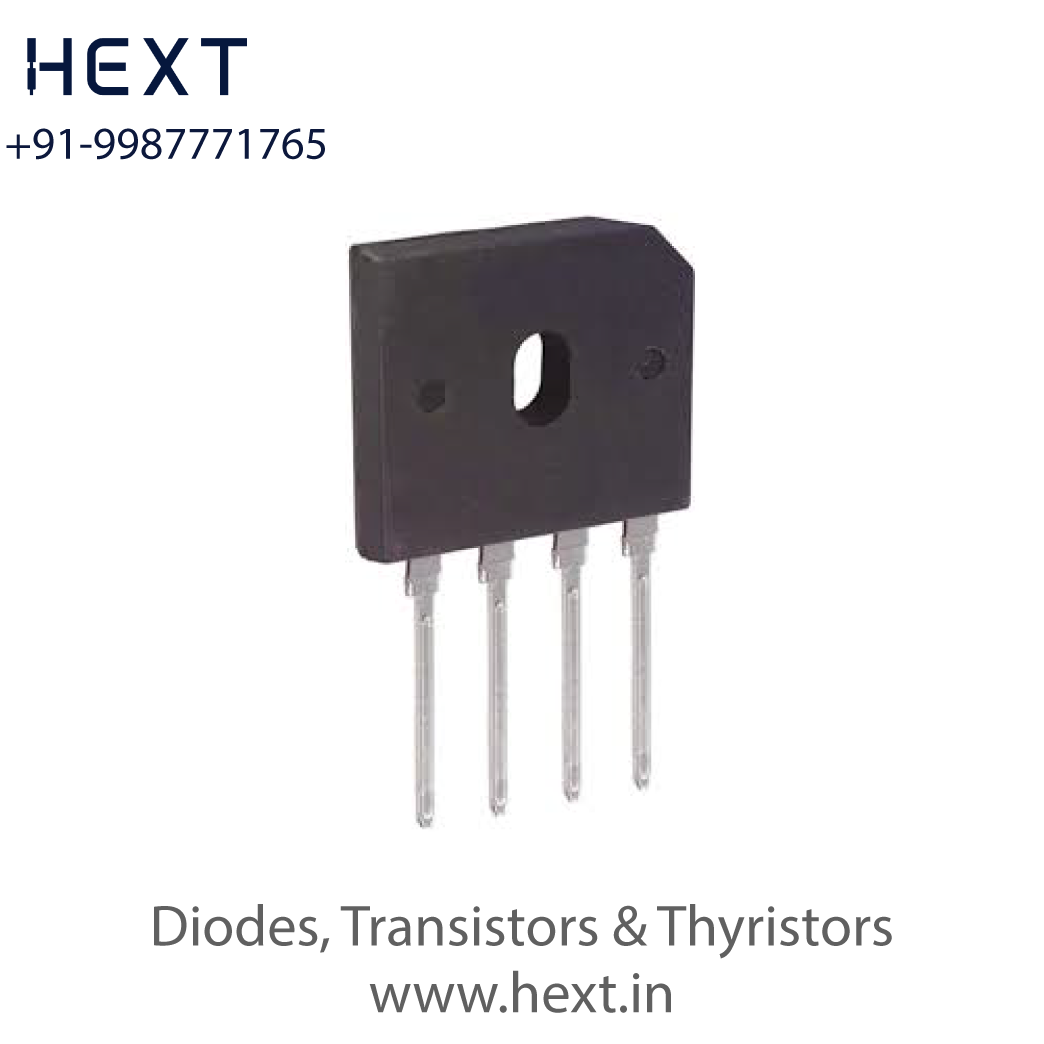

GBU2504 – 400V 25A Bridge Rectifier in GBU Package | 400V 25A Heavy-Load Single-Phase Rectifier Bridge

The GBU2504 handles 400V reverse voltage and 25A DC output for heavy single-phase AC-DC rectification. Its 300A surge architecture and very low 12.5µA reverse leakage protect DC rails from grid spikes and overload bursts. The thermal-optimized GBU body reduces long-term stress during high inrush, improving operational durability.

Key Specifications

• VR: 400V

• IF: 25.0A

• TJ(Max): 100°C

• IFSM: 300A

• VF: 1.0V

• IR: 12.5µA

• Trr: 5.0µs

• Package: GBU

Features

• 400V AC-DC rectification support

• 300A surge endurance body

• 25A continuous DC output

• Improved thermal stability

Applications

• 230V/400V PSU diode bridge

• 25A industrial DC bus rails

• High-voltage charger bridges

• Power converter rectifiers
