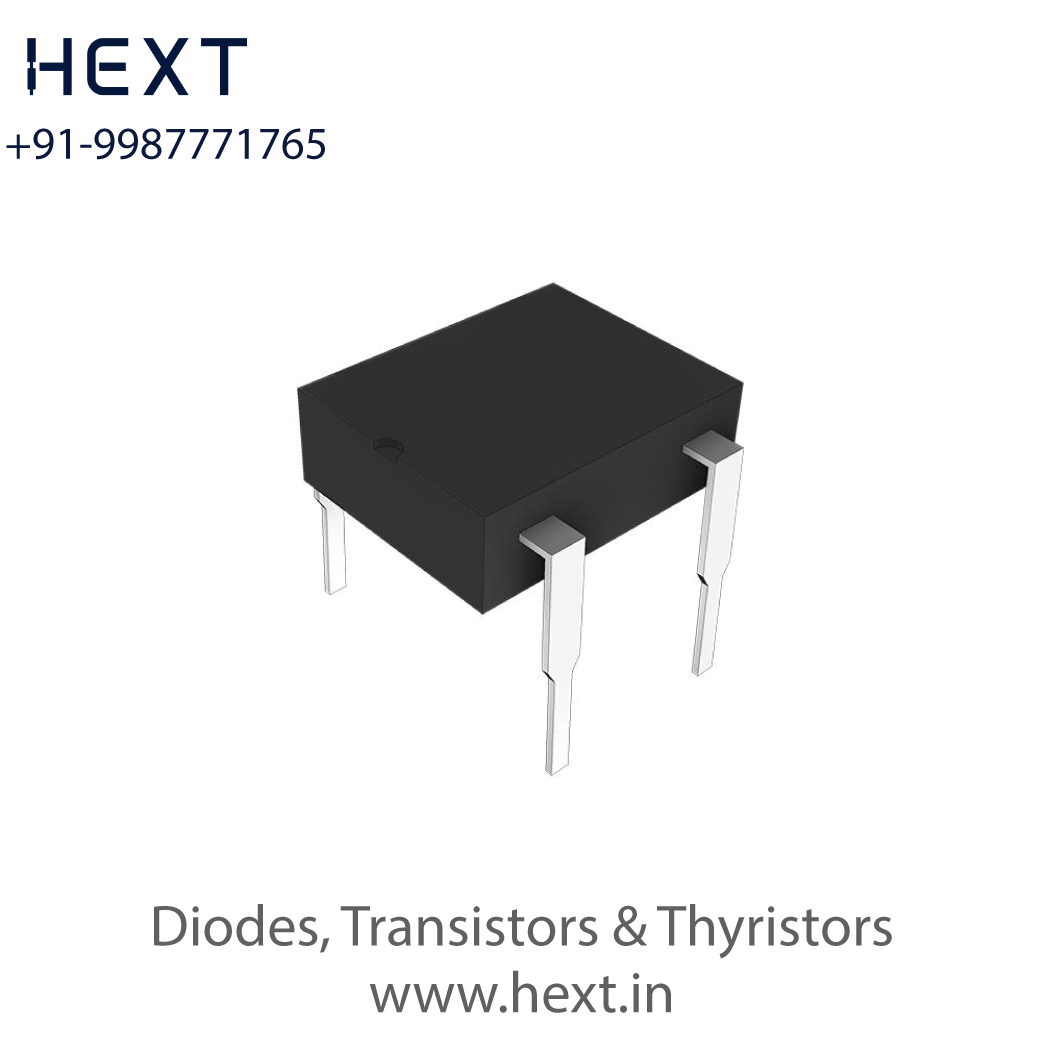

DF15005S – 50V 1.5A Bridge Rectifier in DIP-S Package | High-Performance 50V Rectifier

The DF15005S is a 50V 1.5A high-performance bridge rectifier designed for reliable low-voltage rectification. It provides stable operation, excellent surge capability, and efficient power conversion in a compact DIP-S package.

Key Specifications

• VR: 50V

• IF: 1.5A

• Temp: 40°C

• Surge Current: 50A

• VF: 1.1V

• IR: 1.5µA

• Trr: 10µs

• Package: DIP-S

Features

• High efficiency rectification

• Low leakage current

• Strong surge tolerance

• Reliable temperature performance

• Compact DIP-S design

Applications

• General AC/DC conversion

• Power supplies

• Consumer electronics

• Small power modules
