DF06 – 600V 1A DB Silicon Rectifier | Compact High-Voltage AC–DC Conversion

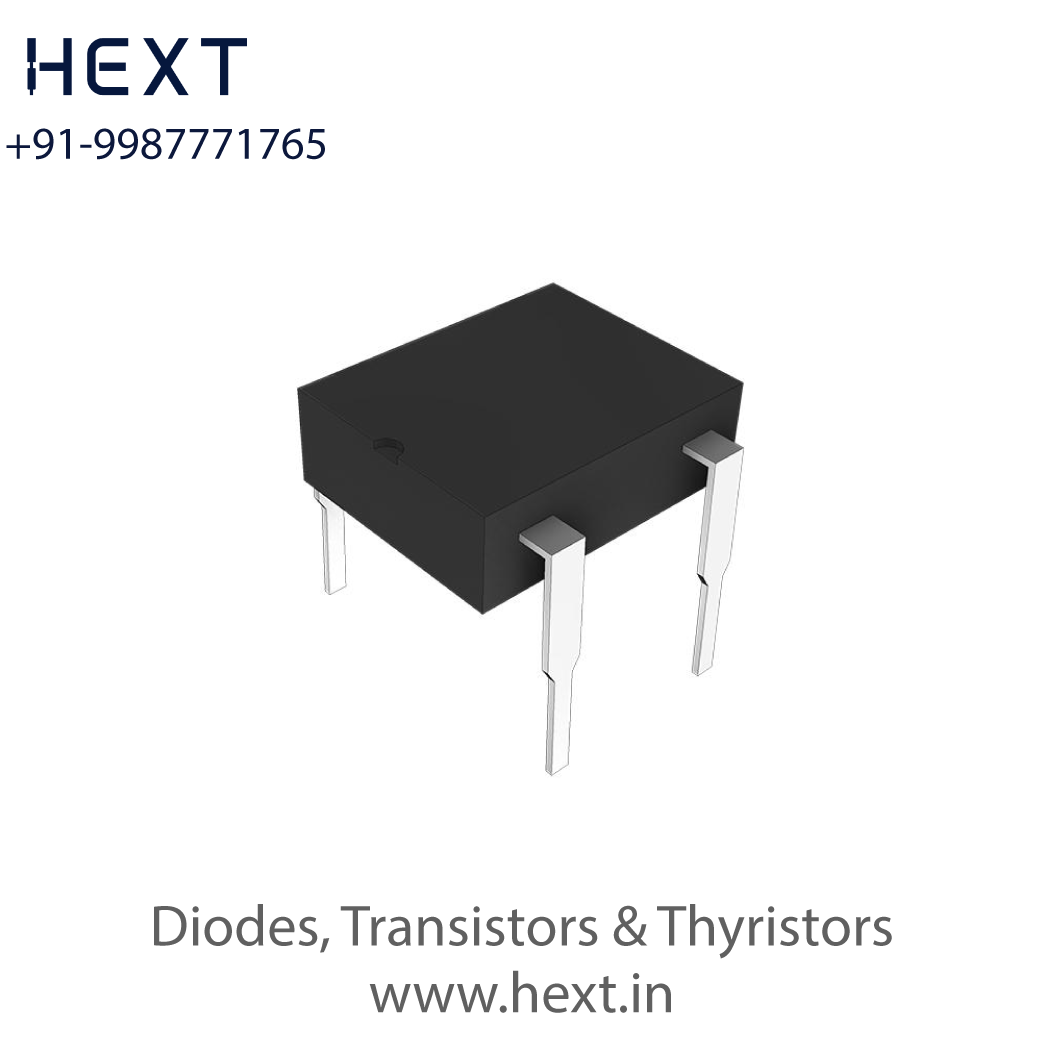

The DF06 is a 600V, 1A rectifier diode in a DB package designed for high-voltage circuits requiring stable rectification and minimal losses.

Its fast 40ns recovery and strong surge capability make it a reliable choice for high-voltage SMPS, measuring instruments, and compact power modules.

🔧 Key Specifications

• VRRM: 600V

• IF(AV): 1.0A

• VF: 1.1V

• IR: 50µA

• Trr: 40ns

• IFSM: 10A

• Package: DB

⚙️ Applications

Measurement equipment, high-voltage SMPS, LED systems, power meters.
