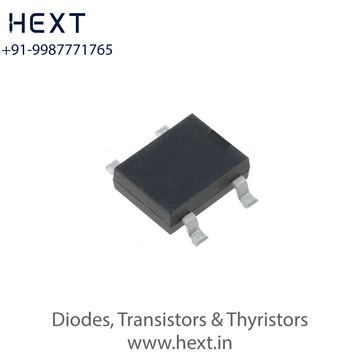

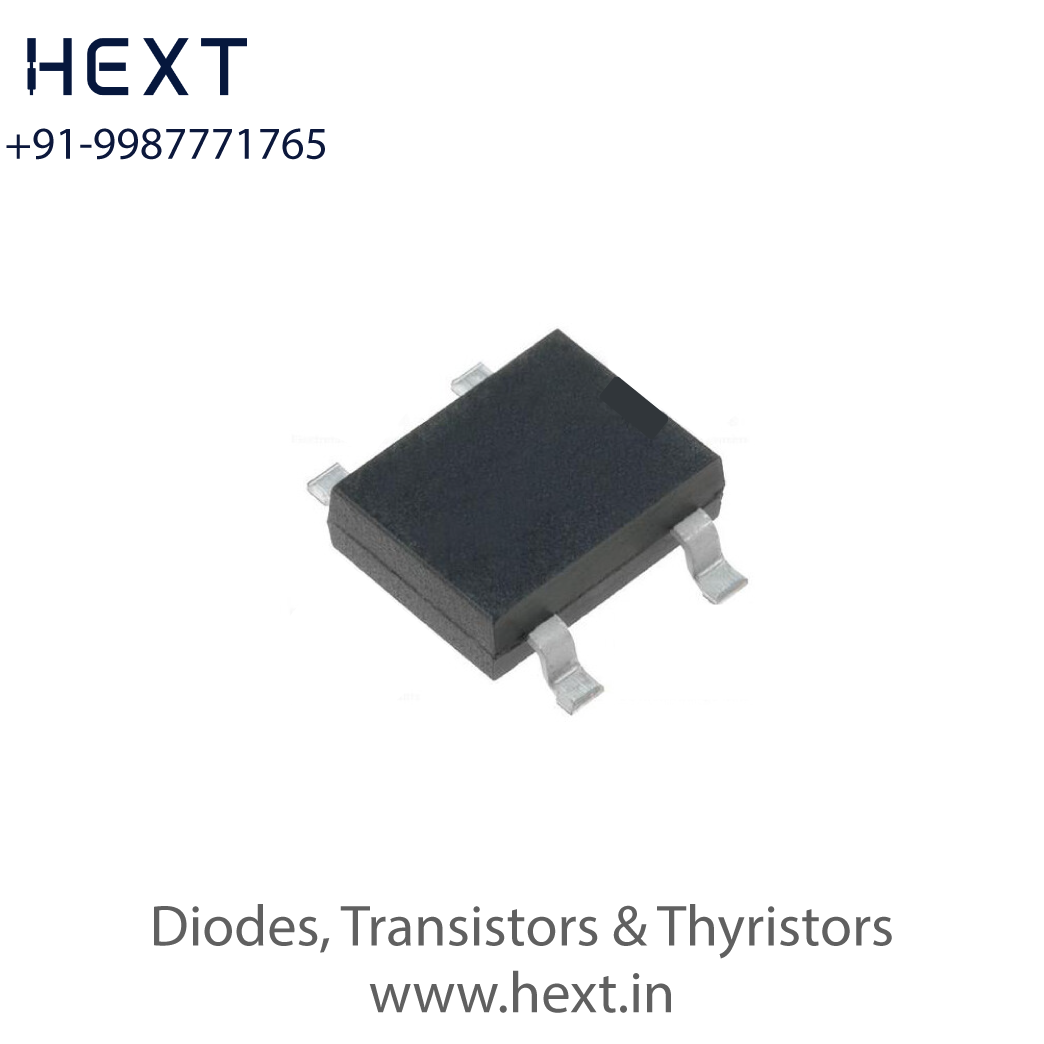

DB104S – 400V 1A Bridge Rectifier in DBS Package | High-Voltage 400V Rectifier

The DB104S is a powerful 400V bridge rectifier used in high-voltage AC-DC conversion. The DBS package ensures excellent heat dissipation and long-term stability.

Key Specifications

• VR: 400V

• IF: 1.0A

• Io: 40A

• VF: 1.1V

• IR: 1.0µA

• Trr: 10ns

• Temp: 400°C

• Package: DBS

Features

• High-voltage tolerance

• Low conduction loss

• Excellent surge handling

• Compact rugged package

Applications

• High-voltage power supplies

• Industrial controllers

• LED drivers

• Rectifier modules
