BR1010 – 1000V 10.0A Bridge Rectifier in BR8 Package | Ultra-High-Voltage 10A Single-Phase Bridge

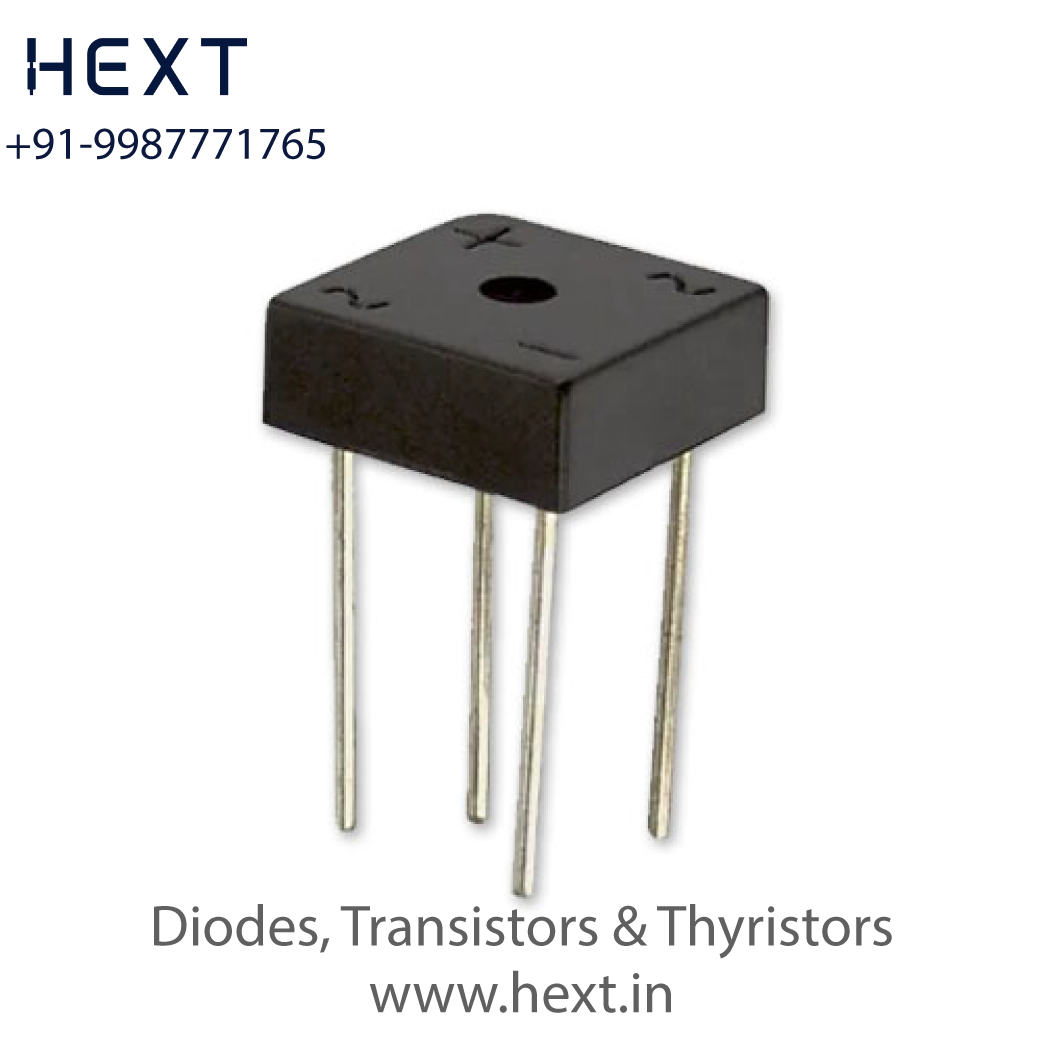

The BR1010 is a 1000V, 10.0A single-phase rectifier bridge diode engineered for ultra-high voltage AC-DC PCB bridges, transformer DC bus rails, and infrastructure offline PSU module input stages. A 1.1V VF conduction architecture reduces forward dissipation under sustained 10A DC operation improving heat margins. The 150A IFSM surge withstand rating protects PCBs from transformer inrush extremes and capacitor bulk charge impulses ensuring overstress endurance for 1000V AC cycle peaks. Reverse leakage is controlled at 5µA minimizing idle thermal dissipation and stabilizing repetitive reverse bias blocking performance. The BR8 4-lead epoxy molded inline bridge package ensures mechanically stable long-haul PCB mounting and reliable isolation for 1000V 10A interface stage rectifier applications.

Key Specifications:

• VRRM: 1000V

• IF(AV): 10.0A

• Reference Temp: 50°C

• Surge IFSM: 150A

• VF: 1.1V

• IR: 5µA

• Trr: 10µs

• Package: BR8

Applications:

• 1000V AC-DC PSU front-end bridges

• High-voltage PCB rectifier modules

• Infrastructure DC bus input stages
