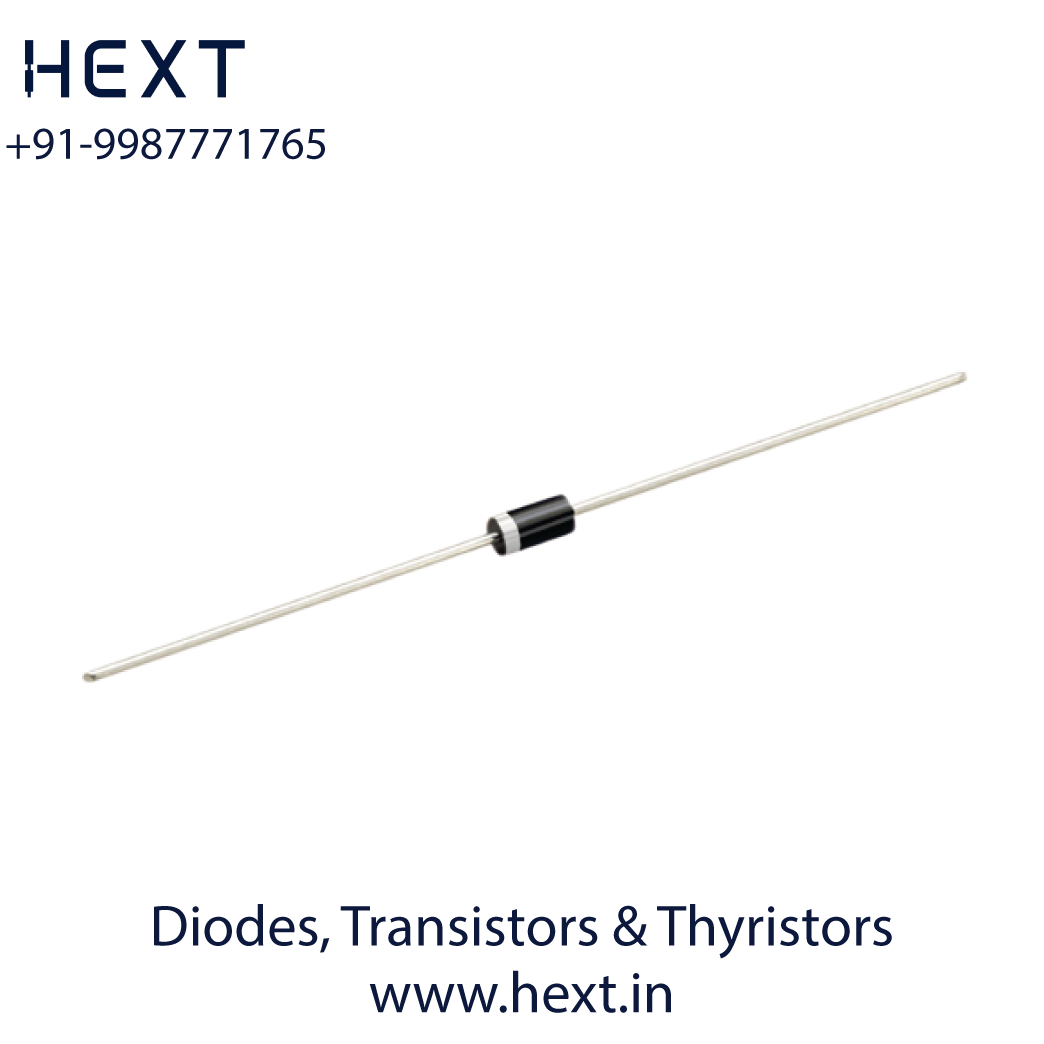

1F5 1A 600V Fast Recovery Rectifier Diode | R-1 Package | High Voltage | Low Forward Loss

The 1F5 is a 1A, 600V fast recovery diode engineered for high-performance power rectification. With 25ns recovery and low forward loss, it’s perfect for fast-switching power supply circuits.

🔧 Key Specifications:

• Part Number: 1F5

• Average Forward Current (IF): 1.0A

• Maximum Reverse Voltage (VR): 600V

• Reverse Recovery Time (trr): 25ns

• Forward Voltage Drop (VF): 1.3V

• Peak Reverse Voltage (VRRM): 250V

• Reverse Current (IR): 5µA

• Package: R-1

• Operating Temperature: −55°C to +150°C

💡 Features & Benefits:

• Excellent surge and voltage endurance

• Low reverse leakage current

• Fast, efficient power conversion

• Rugged construction

⚙️ Applications:

• Power rectification

• DC converters

• Switch-mode supplies

• Control systems
