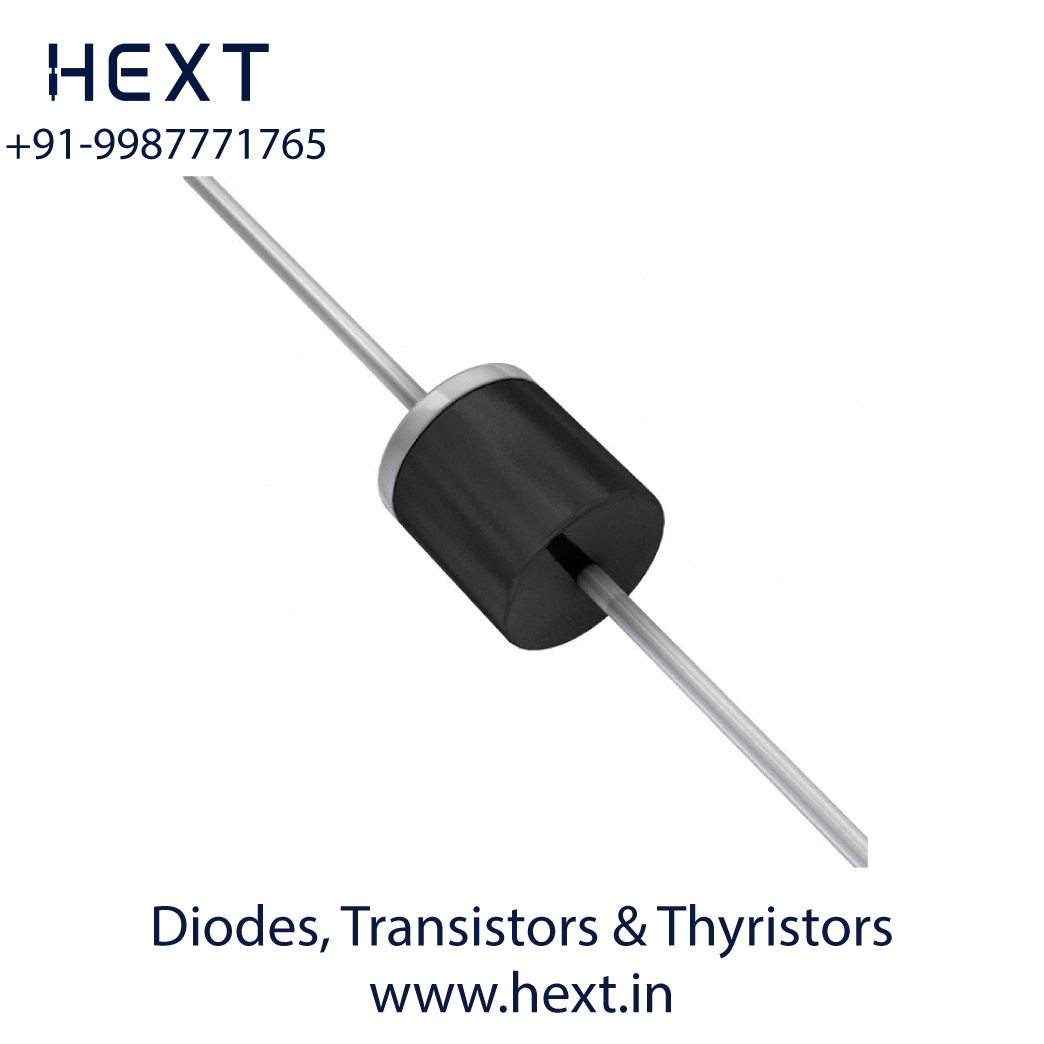

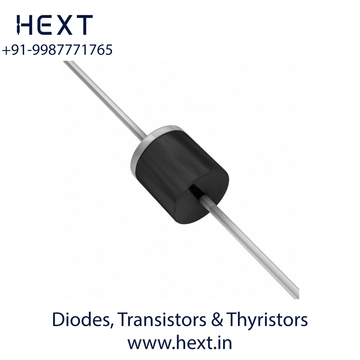

1A1 General Purpose Rectifier Diode 1A 50V R-1 | Low Forward Voltage | Reliable Power Rectification

The 1A1 General Purpose Rectifier Diode is a reliable, cost-effective solution for power rectification and signal conversion applications. Designed to handle 1.0A of forward current and up to 50V reverse voltage, this diode ensures stable performance and long-term durability in electronic circuits.

Its low forward voltage drop and fast recovery time make it ideal for power supplies, adapters, chargers, and general-purpose AC to DC conversion. The R-1 package allows for compact installation and easy integration into a variety of PCB layouts.

🔧 Key Specifications:

• Part Number: 1A1

• Type: General Purpose Rectifier

• Average Forward Current (IF): 1.0A

• Maximum Reverse Voltage (VR): 50V

• Forward Voltage Drop (VF): 1.1V (typ.)

• Reverse Recovery Time: <30µs

• Package: R-1

• Operating Temperature: -55°C to +150°C

💡 Features & Benefits:

• Efficient rectification with low forward voltage loss

• High surge current capability for better protection

• Reliable performance in continuous operation

• Compact and easy-to-mount R-1 package

• Suitable for general-purpose AC/DC rectification and signal demodulation

⚙️ Applications:

• Power supply circuits

• Adapters and chargers

• Battery-operated devices

• General electronics and DIY projects
